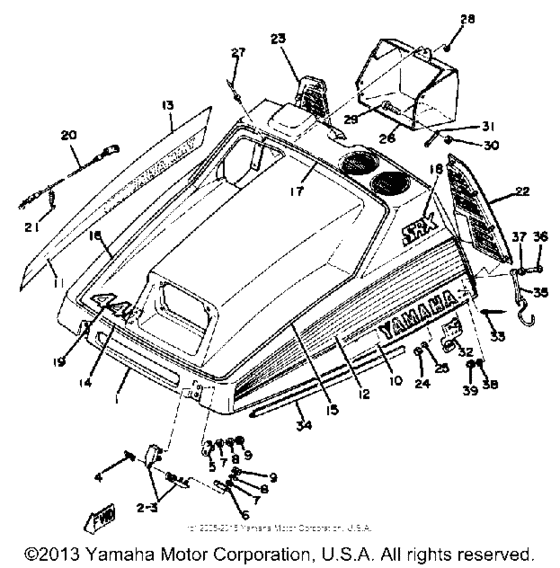

Shroud Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
878-77140-00-00
Hinge Assembly
|
878-77140-00-00 |
— | ||
|
1
|
1
8F2-W7711-00-00
Shroud Assembly
|
8F2-W7711-00-00 |
— | ||
|
2
|
2
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
3
|
3
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
4
|
4
8A7-77157-00-00
Pin, Hinge
|
8A7-77157-00-00 |
— | ||
|
5
|
5
8G6-77153-00-00
Plate, Back Up 1
UP 1 |
8G6-77153-00-00 |
— | ||
|
6
|
6
878-77154-00-00
Plate, Back Up 2
UP 2 |
878-77154-00-00 |
— | ||
|
7
|
7
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
7
|
7
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
10
|
10
8F2-77163-00-00
Ornament 1
|
8F2-77163-00-00 |
— | ||
|
11
|
11
8F2-77164-00-00
Ornament 2
|
8F2-77164-00-00 |
— | ||
|
12
|
12
999-99013-58-00
Ornament
|
999-99013-58-00 |
— | ||
|
13
|
13
8F2-77114-00-00 Ornament 5 |
8F2-77114-00-00 |
US $10.78 |
||
|
14
|
14
8A7-77282-00-00
Stripe 2
|
8A7-77282-00-00 |
— | ||
|
15
|
15
8F2-77283-00-00
Stripe 3
|
8F2-77283-00-00 |
— | ||
|
16
|
16
8F2-77284-00-00
Stripe 4
|
8F2-77284-00-00 |
— | ||
|
17
|
17
8A7-77285-00-00
Stripe 5
|
8A7-77285-00-00 |
— | ||
|
18
|
18
8F2-77356-00-00
Emblem 6
|
8F2-77356-00-00 |
— | ||
|
19
|
19
8F2-77358-00-00
Emblem 8
|
8F2-77358-00-00 |
— | ||
|
20
|
20
8F2-77118-00-00
Stopper, Shroud
|
8F2-77118-00-00 |
— | ||
|
21
|
21
838-77159-00-00 Clamp, Rod |
838-77159-00-00 |
from US $6.10 |
||
|
22
|
22
8A5-77131-01-00
Louver 1
|
8A5-77131-01-00 |
— | ||
|
23
|
23
8A5-77132-01-00
Louver 2
|
8A5-77132-01-00 |
— | ||
|
24
|
24
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
24
|
24
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
25
|
25
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
26
|
26
8K2-77194-00-00
Duct
|
8K2-77194-00-00 |
— | ||
|
27
|
27
90267-48078-00
Rivet, Blind
|
90267-48078-00 |
— | ||
| replacements | |||||
|
27
|
27
902-67489-UJ-00
Rivet, Blind
|
902-67489-UJ-00 |
— | ||
|
27
|
27
90267-48950-00
Rivet, Blind(Ge1)
|
90267-48950-00 |
— | ||
|
28
|
28
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
28
|
28
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
28
|
28
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
29
|
29
98901-05016-00
Screw, Bind (98903-05016-00)
|
98901-05016-00 |
— | ||
| replacements | |||||
|
29
|
29
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
29
|
29
98902-05016-00 Screw, Bind (8K2) |
98902-05016-00 |
from US $1.34 |
||
|
30
|
30
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
30
|
30
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
31
|
31
8A7-77116-00-00
Washer, Special
|
8A7-77116-00-00 |
— | ||
|
32
|
32
8F2-77136-00-00
Clamp 2
|
8F2-77136-00-00 |
— | ||
|
33
|
33
902-6740M-00-00 Rivet, Blind |
902-6740M-00-00 |
from US $0.95 |
||
| replacement | |||||
|
33
|
33
90267-40936-00 Rivet, Blind |
90267-40936-00 |
from US $1.34 |
||
|
34
|
34
8A7-77161-01-00
Strip, Weather 1
|
8A7-77161-01-00 |
— | ||
|
35
|
35
856-77170-00-00
Latch Assembly
|
856-77170-00-00 |
— | ||
|
36
|
36
98980-06030-00 Screw, Bind |
98980-06030-00 |
from US $1.84 |
||
|
37
|
37
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
37
|
37
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
38
|
38
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
38
|
38
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
39
|
39
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
