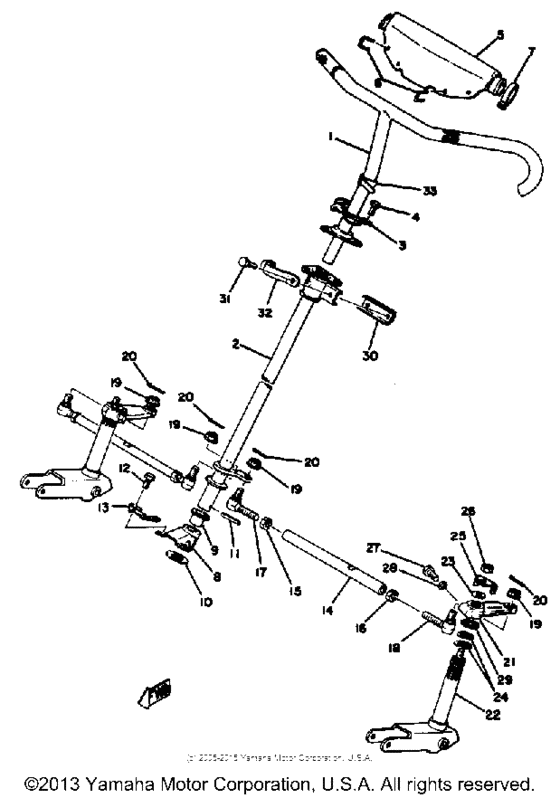

Steering Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8F2-23811-00-00
Column, Steering
|
8F2-23811-00-00 |
— | ||
|
2
|
2
8A5-23813-00-00
Column, Steering 2
|
8A5-23813-00-00 |
— | ||
|
3
|
3
888-23894-00-00
Washer, Lock 1
|
888-23894-00-00 |
— | ||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
5
|
5
878-23815-01-00
Pad, Steering (878-23815-00)
878-23815-00 |
878-23815-01-00 |
— | ||
|
6
|
6
904-65050-24-00
Clamp
|
904-65050-24-00 |
— | ||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
8
|
8
8E7-23868-00-00
Bracket, Strg Lowerlower
|
8E7-23868-00-00 |
— | ||
|
9
|
9
8E7-23875-00-00
Bearing, Strg Lowerlower
|
8E7-23875-00-00 |
— | ||
|
10
|
10
856-23812-00-00
Bearing, Steering
|
856-23812-00-00 |
— | ||
|
11
|
11
916-09600-40-00
Pin, Spring
|
916-09600-40-00 |
— | ||
|
12
|
12
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
12
|
12
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
13
|
13
8E7-23895-00-00
Washer, Lock 2
|
8E7-23895-00-00 |
— | ||
|
14
|
14
8F2-23821-00-00
Rod, Steering Relay
|
8F2-23821-00-00 |
— | ||
|
15
|
15
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
15
|
15
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
16
|
16
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
17
|
17
888-23841-91-00
Joint, Universal 1
|
888-23841-91-00 |
— | ||
|
18
|
18
888-23845-91-00
Joint, Universal 2
|
888-23845-91-00 |
— | ||
|
19
|
19
901-71100-18-00 Nut, Castle |
901-71100-18-00 |
US $3.31 |
||
|
20
|
20
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
21
|
21
8F2-23851-00-00
Arm, Outside 1
|
8F2-23851-00-00 |
— | ||
|
22
|
22
8F2-23853-00-00
Column, Ski 1
|
8F2-23853-00-00 |
— | ||
|
23
|
23
90201-100A1-00 Washer, Plate (3J6) |
90201-100A1-00 |
from US $2.32 |
||
|
24
|
24
90206-20037-00 Washer, Wave |
90206-20037-00 |
from US $2.13 |
||
|
25
|
25
90215-10096-00
Washer, Lock
|
90215-10096-00 |
— | ||
|
26
|
26
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
27
|
27
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
27
|
27
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
27
|
27
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
27
|
27
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
29
|
29
905-60221-66-00
Spacer
|
905-60221-66-00 |
— | ||
|
30
|
30
878-23872-00-00
Holder, Bearing
|
878-23872-00-00 |
— | ||
|
31
|
31
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
31
|
31
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
31
|
31
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
32
|
32
902-15060-54-00
Washer, Lock
|
902-15060-54-00 |
— | ||
|
33
|
33
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
33
|
33
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
33
|
33
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
