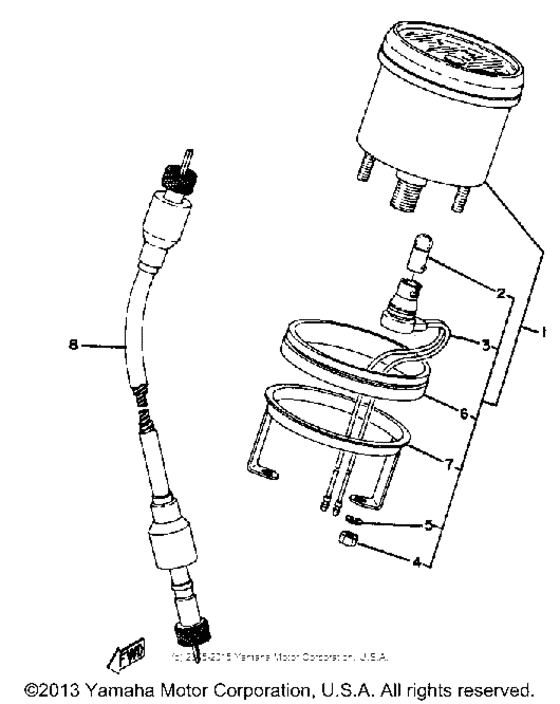

Tachometer Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-83540-00-00
Tachometer Assembly
|
8A7-83540-00-00 |
— | ||
|
2
|
2
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
2
|
2
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
3
|
3
861-83536-40-00
Socket, Meter
|
861-83536-40-00 |
— | ||
|
4
|
4
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
5
|
5
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
6
|
6
861-83523-40-00
Damper
|
861-83523-40-00 |
— | ||
|
7
|
7
863-83514-40-00
Plate, Fitting
|
863-83514-40-00 |
— | ||
|
8
|
8
8A7-83560-01-00
Tachometer Cable (8A7-83560-00)
8A7-83560-00 |
8A7-83560-01-00 |
— | ||
