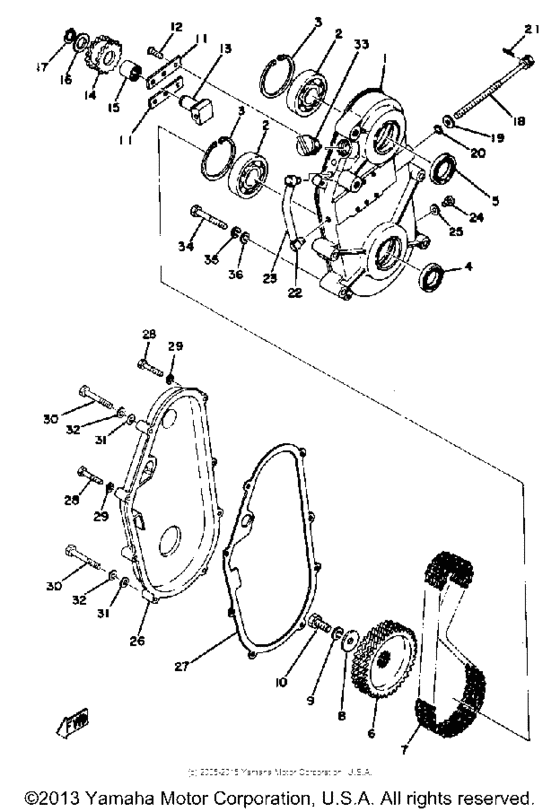

Track drive Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-47541-00-00
Housing, Chain
|
8A7-47541-00-00 |
— | ||
|
2
|
2
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
3
|
3
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
3
|
3
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
4
|
4
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
5
|
5
931-02331-40-00
Oil Seal, Sd-Type
|
931-02331-40-00 |
— | ||
|
6
|
6
8A8-47587-20-00
Sprocket, Chn Drvn
|
8A8-47587-20-00 |
— | ||
|
6
|
6
8A8-47587-00-00
Sprocket, Chn Drvn
|
8A8-47587-00-00 |
— | ||
|
6
|
6
8A8-47587-10-00
Sprocket, Chn Drvn
|
8A8-47587-10-00 |
— | ||
|
7
|
7
948-50350-70-00
Chain 70 (Rs35V-3 70L)
70 RS35V-3 70L |
948-50350-70-00 |
— | ||
|
7
|
7
948-50350-72-00
Chain 72 (Rs35V-3 72L)
72 RS35V-3 72L |
948-50350-72-00 |
— | ||
|
7
|
7
948-50350-74-00
Chain 74
74 |
948-50350-74-00 |
— | ||
|
8
|
8
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
10
|
10
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
10
|
10
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
11
|
11
8A7-47613-00-00
Holder
|
8A7-47613-00-00 |
— | ||
|
12
|
12
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
12
|
12
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
12
|
12
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
13
|
13
878-47611-00-00
Tensioner
|
878-47611-00-00 |
— | ||
|
14
|
14
8A8-47612-00-00
Wheel
|
8A8-47612-00-00 |
— | ||
|
15
|
15
933-17317-01-00 Bearing |
933-17317-01-00 |
from US $10.91 |
||
|
16
|
16
902-01174-06-00
Washer, Plate
|
902-01174-06-00 |
— | ||
|
17
|
17
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
18
|
18
901-09083-57-00
Bolt
|
901-09083-57-00 |
— | ||
|
19
|
19
90201-084M4-00 Washer, Plate (90201-08088-00) |
90201-084M4-00 |
US $1.70 |
||
| replacement | |||||
|
19
|
19
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.70 |
||
|
20
|
20
93210-08006-00 O-Ring |
93210-08006-00 |
from US $1.34 |
||
| replacement | |||||
|
20
|
20
93210-08003-00 O-Ring |
93210-08003-00 |
from US $1.70 |
||
|
21
|
21
90468-16065-00
Clip
|
90468-16065-00 |
— | ||
|
22
|
22
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
23
|
23
90445-09064-00 Hose (L420) |
90445-09064-00 |
from US $6.52 |
||
| replacement | |||||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
24
|
24
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
25
|
25
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.55 |
||
|
26
|
26
888-47543-00-00
Cap, Housing
|
888-47543-00-00 |
— | ||
|
27
|
27
878-47544-00-00 Gasket |
878-47544-00-00 |
from US $28.44 |
||
| replacements | |||||
|
27
|
27
878-47544-09-00 SPROCKET,CHN DRVN |
878-47544-09-00 |
from US $32.89 |
||
|
27
|
27
878-47544-08-00 |
878-47544-08-00 |
US $29.48 |
||
|
28
|
28
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
28
|
28
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
29
|
29
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
30
|
30
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
30
|
30
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
32
|
32
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
33
|
33
857-47559-00-00
Cap 2
|
857-47559-00-00 |
— | ||
|
34
|
34
97321-08055-00 Bolt, Hexagon661 |
97321-08055-00 |
from US $2.66 |
||
| replacement | |||||
|
34
|
34
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
35
|
35
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
36
|
36
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
