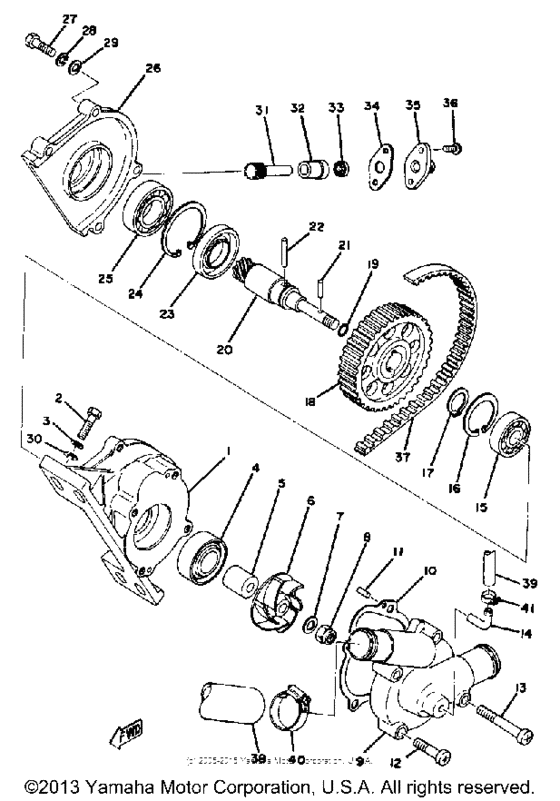

Water pump Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-12421-00-00
Housing, Water Pump
|
8A7-12421-00-00 |
— | ||
|
2
|
2
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
931-03201-01-00
Oil Seal, Sw-Type
|
931-03201-01-00 |
— | ||
|
5
|
5
903-87085-17-00
Collar
|
903-87085-17-00 |
— | ||
|
6
|
6
8A7-12451-00-00
Impeller, Water Pmp
|
8A7-12451-00-00 |
— | ||
|
7
|
7
90201-08452-00 Washer (8A7) |
90201-08452-00 |
from US $1.35 |
||
|
8
|
8
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.42 |
||
| replacement | |||||
|
8
|
8
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.42 |
||
|
9
|
9
8A7-W1241-01-00
Cover, Housing
|
8A7-W1241-01-00 |
— | ||
|
10
|
10
8A7-12427-00-00 Gasket,hsng Cvr 1 |
8A7-12427-00-00 |
US $3.22 |
||
| replacement | |||||
|
10
|
10
8A7-12427-09-00 JOINT |
8A7-12427-09-00 |
US $3.20 |
||
|
11
|
11
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.34 |
||
|
12
|
12
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
13
|
13
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
14
|
14
8A7-12463-00-00
Pipe, Breather
|
8A7-12463-00-00 |
— | ||
|
15
|
15
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
16
|
16
99009-32500-00 Circlip |
99009-32500-00 |
from US $1.56 |
||
|
17
|
17
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
18
|
18
8A7-12442-00-00
Pulley 2
|
8A7-12442-00-00 |
— | ||
|
19
|
19
93210-08006-00 O-Ring |
93210-08006-00 |
from US $1.34 |
||
| replacement | |||||
|
19
|
19
93210-08003-00 O-Ring |
93210-08003-00 |
from US $1.70 |
||
|
20
|
20
8A7-12458-00-00
Shaft, Impeller
|
8A7-12458-00-00 |
— | ||
|
21
|
21
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
22
|
22
936-04221-21-00
Pin, Dowel
|
936-04221-21-00 |
— | ||
|
23
|
23
931-02201-68-00
Oil Seal, Sd-Type
|
931-02201-68-00 |
— | ||
|
24
|
24
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
25
|
25
93306-00441-00 Bearing (89A) (B6004Rs) |
93306-00441-00 |
from US $14.59 |
||
| replacement | |||||
|
25
|
25
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
26
|
26
8A7-17811-00-00
Housing, Tach Gear
|
8A7-17811-00-00 |
— | ||
|
27
|
27
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
27
|
27
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
30
|
30
90201-06727-00 Washer, Plate (8H9) |
90201-06727-00 |
from US $1.28 |
||
|
31
|
31
8A7-17841-00-00
Gear, Driven
|
8A7-17841-00-00 |
— | ||
|
32
|
32
8A7-17843-00-00 Bush, Drvn Gr OuterGR OUTER |
8A7-17843-00-00 |
US $12.20 |
||
|
33
|
33
93104-06033-00 Oil Seal, So-Type |
93104-06033-00 |
from US $7.51 |
||
|
34
|
34
821-17818-02-00 Gasket |
821-17818-02-00 |
from US $3.40 |
||
|
35
|
35
821-17819-00-00 Cap, Housing |
821-17819-00-00 |
US $23.78 |
||
|
36
|
36
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
36
|
36
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
37
|
37
8F2-12444-00-00
Belt 1
|
8F2-12444-00-00 |
— | ||
|
38
|
38
8A7-12481-00-00
Pipe 1
|
8A7-12481-00-00 |
— | ||
|
39
|
39
8A7-12484-00-00
Pipe 4
|
8A7-12484-00-00 |
— | ||
|
40
|
40
90460-38292-00 Clamp, Hose |
90460-38292-00 |
US $22.79 |
||
|
41
|
41
90460-11002-00 Clip |
90460-11002-00 |
from US $1.28 |
||
| replacement | |||||
|
41
|
41
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
