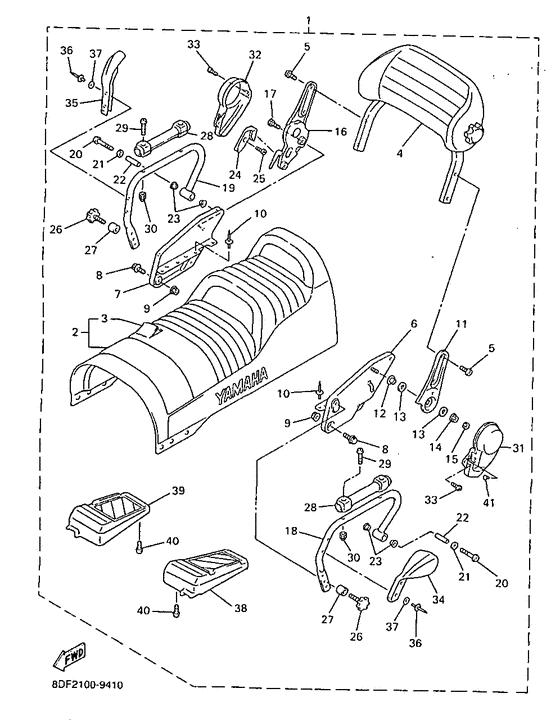

Alternate (BODY/RIG) Diagram Yamaha SRX700
- Model code
- 8DW2
- Engine Capacity
- 700
- Year
- 1999
- Sales region
- USA (999)
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8DF-W247R-10-00
Semi-Double Seat Assy (Dx)
Ap |
8DF-W247R-10-00 |
— | ||
|
02
|
02
8CW-24730-20-00 Double Seat Assy |
8CW-24730-20-00 |
from US $614.30 |
||
|
03
|
03
8CW-2470F-20-00 Cover, Seat |
8CW-2470F-20-00 |
from US $362.82 |
||
|
04
|
04
8DM-24790-00-00 Seat Back Assy |
8DM-24790-00-00 |
from US $580.80 |
||
|
05
|
05
92017-10016-00 Bolt, Button Head |
92017-10016-00 |
from US $4.25 |
||
|
06
|
06
8DM-2474F-00-00 Stay, Front 1 |
8DM-2474F-00-00 |
from US $111.36 |
||
|
07
|
07
8DM-2474G-00-00 Stay, Front 2 |
8DM-2474G-00-00 |
from US $109.01 |
||
|
08
|
08
95807-08014-00 Bolt, Flange |
95807-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.36 |
||
|
09
|
09
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
09
|
09
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
10
|
10
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
11
|
11
8DM-2477R-00-00 Arm 2 |
8DM-2477R-00-00 |
from US $29.47 |
||
|
12
|
12
90387-083Y8-00 Collar |
90387-083Y8-00 |
from US $5.81 |
||
|
13
|
13
90202-12236-00 Washer, Plate |
90202-12236-00 |
from US $4.53 |
||
|
14
|
14
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
14
|
14
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
15
|
15
95307-08700-00 Nut |
95307-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.36 |
||
|
16
|
16
8DM-24760-00-00 Seat Lever Assy |
8DM-24760-00-00 |
from US $182.37 |
||
|
17
|
17
97027-10014-00 Bolt, Hexagon |
97027-10014-00 |
from US $4.53 |
||
|
18
|
18
8DM-2474H-10-00 Bracket, Assist Grip 1 |
8DM-2474H-10-00 |
from US $98.77 |
||
|
19
|
19
8DM-2474J-10-00 Bracket, Assist Grip 2 |
8DM-2474J-10-00 |
from US $93.52 |
||
|
20
|
20
92017-10070-00 Bolt, Button Head |
92017-10070-00 |
from US $2.55 |
||
|
21
|
21
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
21
|
21
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
22
|
22
90387-10090-00 Collar |
90387-10090-00 |
from US $5.53 |
||
|
23
|
23
90387-145G7-00 Collar |
90387-145G7-00 |
from US $1.70 |
||
|
24
|
24
8DM-2477F-00-00 Lever, Seat |
8DM-2477F-00-00 |
from US $10.64 |
||
|
25
|
25
97707-40008-00 Screw, Tapping |
97707-40008-00 |
from US $0.52 |
||
|
26
|
26
8CW-2479H-00-00 Body, Seat Lock |
8CW-2479H-00-00 |
from US $14.45 |
||
|
27
|
27
8CW-24737-00-00 Damper, Seat |
8CW-24737-00-00 |
from US $5.81 |
||
|
28
|
28
8DM-2474A-00-00 Assist, Grip |
8DM-2474A-00-00 |
from US $29.04 |
||
|
29
|
29
98907-06035-00 Screw, Bind |
98907-06035-00 |
from US $1.36 |
||
|
30
|
30
90176-06065-00 Nut, Crown |
90176-06065-00 |
from US $1.33 |
||
|
31
|
31
8DM-24796-00-00 Cover |
8DM-24796-00-00 |
from US $10.75 |
||
|
32
|
32
8DM-2475X-00-00 Cover, 2 |
8DM-2475X-00-00 |
from US $24.62 |
||
| replacement | |||||
|
32
|
32
8DM-2475X-01-00 Cover, 2 |
8DM-2475X-01-00 |
from US $20.45 |
||
|
33
|
33
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
34
|
34
8DM-2476U-00-00 Protector 1 |
8DM-2476U-00-00 |
from US $9.65 |
||
|
35
|
35
8DM-2476V-00-00 Protector,2 |
8DM-2476V-00-00 |
from US $9.65 |
||
|
36
|
36
90267-48051-00 Rivet, Blind (4.8X18.7 Black) |
90267-48051-00 |
from US $2.05 |
||
|
37
|
37
90201-051K1-00 Washer, Plate |
90201-051K1-00 |
from US $2.69 |
||
|
38
|
38
8DM-27431-00-00 Footrest, Rear 1 |
8DM-27431-00-00 |
from US $19.55 |
||
| replacements | |||||
|
38
|
38
8DM-27431-02-00 Footrest, Rear 1 |
8DM-27431-02-00 |
from US $19.55 |
||
|
38
|
38
8DM-27431-03-00 |
8DM-27431-03-00 |
from US $19.55 |
||
|
39
|
39
8DM-27441-00-00 Footrest, Rear 2 |
8DM-27441-00-00 |
from US $19.55 |
||
| replacements | |||||
|
39
|
39
8DM-27441-02-00 Footrest, Rear 2 |
8DM-27441-02-00 |
from US $19.55 |
||
|
39
|
39
8DM-27441-03-00 |
8DM-27441-03-00 |
from US $19.55 |
||
|
40
|
40
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
40
|
40
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
41
|
41
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $1.70 |
||
