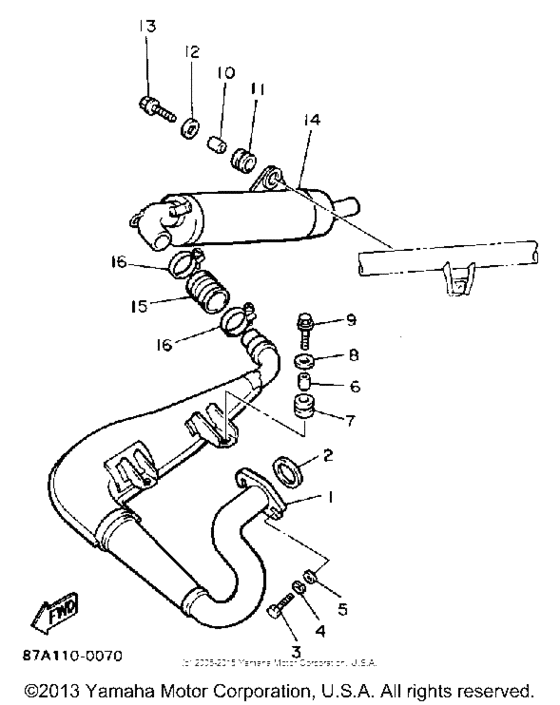

Exhaust Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87A-14610-00-00
Exhaust Pipe Assy 1
|
87A-14610-00-00 |
— | ||
|
2
|
2
87A-14613-00-00 Gasket, Exhaust Pipe |
87A-14613-00-00 |
from US $7.37 |
||
|
3
|
3
97016-08020-00 Bolt |
97016-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
3
|
3
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
4
|
4
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
5
|
5
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
6
|
6
90387-106W3-00 Collar |
90387-106W3-00 |
from US $3.54 |
||
| replacement | |||||
|
6
|
6
90387-08050-00 Collar |
90387-08050-00 |
from US $3.54 |
||
|
7
|
7
90480-20527-00 Grommet |
90480-20527-00 |
from US $4.25 |
||
|
8
|
8
90201-087H3-00 Washer, Plate |
90201-087H3-00 |
from US $2.88 |
||
| replacement | |||||
|
8
|
8
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
9
|
9
95816-08025-00 Bolt, Flange |
95816-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
10
|
10
90387-085G3-00 Collar |
90387-085G3-00 |
from US $3.40 |
||
|
11
|
11
90480-18411-00 Grommet |
90480-18411-00 |
from US $1.70 |
||
|
12
|
12
90201-087H3-00 Washer, Plate |
90201-087H3-00 |
from US $2.88 |
||
| replacement | |||||
|
12
|
12
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
13
|
13
95816-08025-00 Bolt, Flange |
95816-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
14
|
14
87A-14753-00-00
Silencer, Exhaust
|
87A-14753-00-00 |
— | ||
|
15
|
15
1W2-14714-00-00 Gasket, Muffler |
1W2-14714-00-00 |
from US $16.88 |
||
|
16
|
16
90460-37026-00 Clamp, Hose |
90460-37026-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
90460-37130-00 Clamp, Hose |
90460-37130-00 |
from US $4.53 |
||
