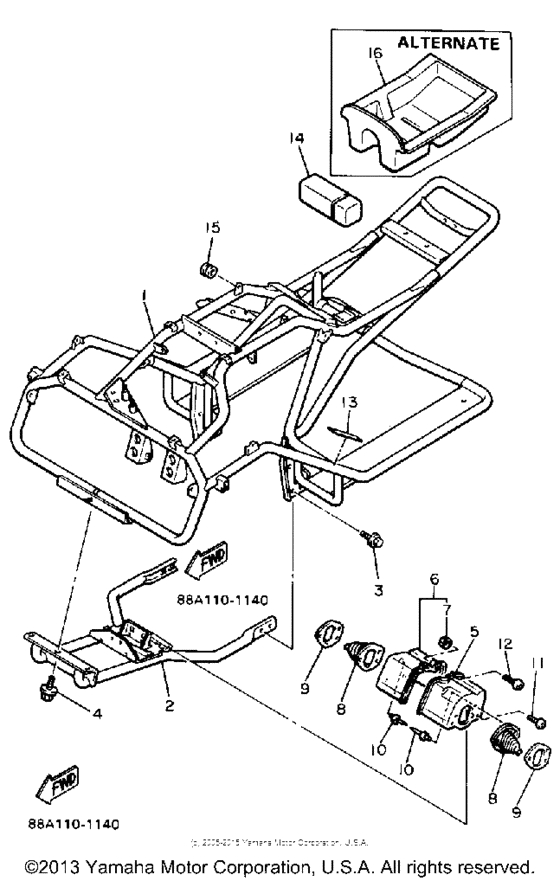

Frame Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87A-21910-00-00
Frame
|
87A-21910-00-00 |
— | ||
| replacement | |||||
|
1
|
1
87B-21910-00-00
Frame Comp
|
87B-21910-00-00 |
— | ||
|
2
|
2
87A-2196A-00-00
Frame Under 1
|
87A-2196A-00-00 |
— | ||
|
3
|
3
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
3
|
3
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
4
|
4
90105-10637-00 Bolt, Flange |
90105-10637-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
5
|
5
87A-2198F-00-00
Cover 1
|
87A-2198F-00-00 |
— | ||
|
6
|
6
87A-2198G-00-00
Cover 2
|
87A-2198G-00-00 |
— | ||
|
7
|
7
90170-05365-00
Nut, Hexagon
|
90170-05365-00 |
— | ||
|
8
|
8
87A-2198J-00-00
Cover 3
|
87A-2198J-00-00 |
— | ||
|
9
|
9
87A-77525-00-00
Washer 1
|
87A-77525-00-00 |
— | ||
|
10
|
10
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
11
|
11
98906-05012-00 Screw, Bind |
98906-05012-00 |
US $1.42 |
||
| replacement | |||||
|
11
|
11
98907-05012-00 Screw, Bind |
98907-05012-00 |
from US $1.42 |
||
|
12
|
12
98906-05020-00 Screw, Bsnd(8E6) |
98906-05020-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
98907-05020-00 Screw, Binding |
98907-05020-00 |
from US $1.56 |
||
|
13
|
13
85G-77762-00-00
Label, Warning 2
|
85G-77762-00-00 |
— | ||
| replacements | |||||
|
13
|
13
85G-77762-70-00
Label, Warning 2
|
85G-77762-70-00 |
— | ||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
87A-28100-00-00 Tool Kit |
87A-28100-00-00 |
US $47.45 |
||
| replacement | |||||
|
14
|
14
87B-28100-00-00 Tool Kit |
87B-28100-00-00 |
US $47.45 |
||
|
15
|
15
90480-16113-00
Grommet
|
90480-16113-00 |
— | ||
|
16
|
16
87C-77391-00-00
Luggage Box
AP |
87C-77391-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
