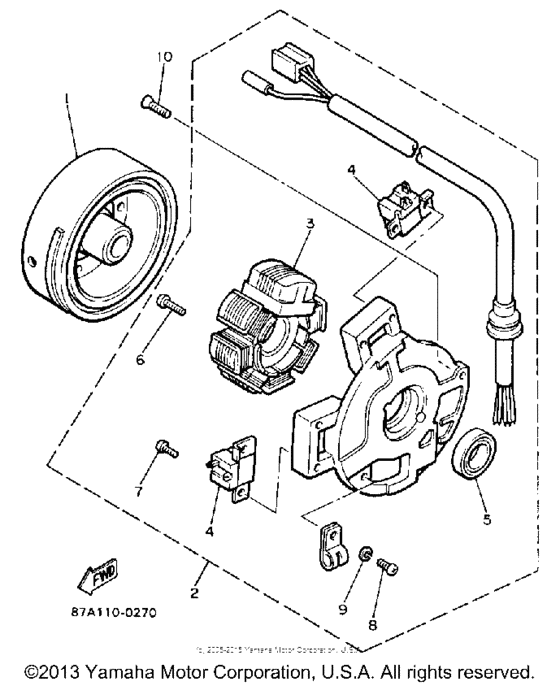

Generator Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87A-85550-00-00
Rotor Assy
|
87A-85550-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
87A-85560-00-00
Base Assy
|
87A-85560-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
85G-81403-M1-00
Statorcomp
|
85G-81403-M1-00 |
— | ||
|
4
|
4
2JA-85580-M0-00 Coil, Pulser |
2JA-85580-M0-00 |
US $47.04 |
||
|
5
|
5
93104-19082-00 Oil Seal, So-Type |
93104-19082-00 |
US $7.18 |
||
|
6
|
6
98511-05025-00 Screw, Pan Head |
98511-05025-00 |
US $1.42 |
||
| replacement | |||||
|
6
|
6
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
7
|
7
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
8
|
8
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
8
|
8
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
8
|
8
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
98701-06016-00 Screw, Flat Head |
98701-06016-00 |
from US $2.13 |
||
| replacements | |||||
|
10
|
10
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
10
|
10
98704-06016-00 Screw, Flat |
98704-06016-00 |
from US $2.13 |
||
