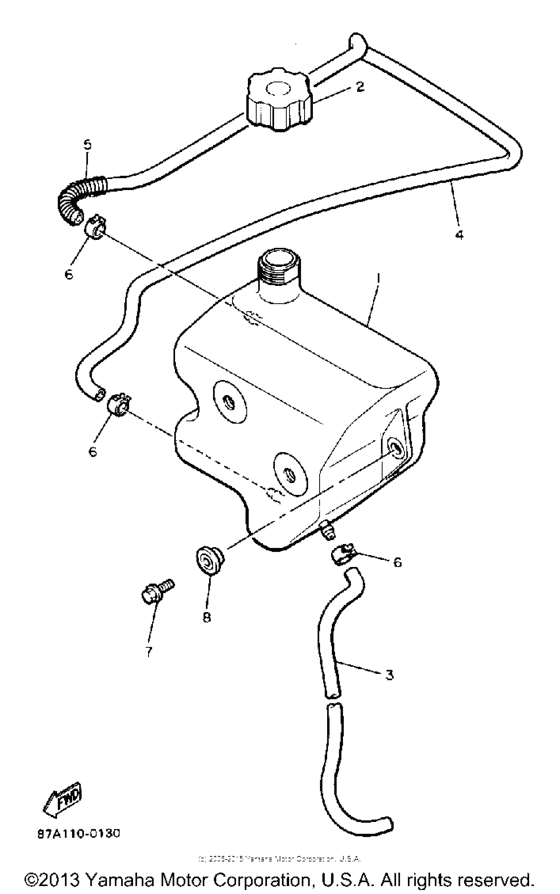

Oil tank Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87A-21751-00-00
Tank, Oil
|
87A-21751-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
87A-21770-00-00
Oil Tank Cap Assy
|
87A-21770-00-00 |
— | ||
|
3
|
3
91A30-05045-00 Tube, Flexible Vinyl(8Ae) |
91A30-05045-00 |
from US $9.92 |
||
| replacement | |||||
|
3
|
3
91A30-05080-00 Tube, Flexible Vinyl |
91A30-05080-00 |
from US $9.92 |
||
|
4
|
4
90446-09281-00 Hose |
90446-09281-00 |
from US $11.60 |
||
| replacement | |||||
|
4
|
4
91A30-05125-00
Tube, Flexible Vinyl
|
91A30-05125-00 |
— | ||
|
5
|
5
8F3-24328-00-00
Spring, Compression
|
8F3-24328-00-00 |
— | ||
| replacement | |||||
|
5
|
5
90501-083J8-00
Spring, Compression
|
90501-083J8-00 |
— | ||
|
6
|
6
90467-09026-00 Clip |
90467-09026-00 |
from US $1.07 |
||
|
7
|
7
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
8
|
8
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
8
|
8
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
