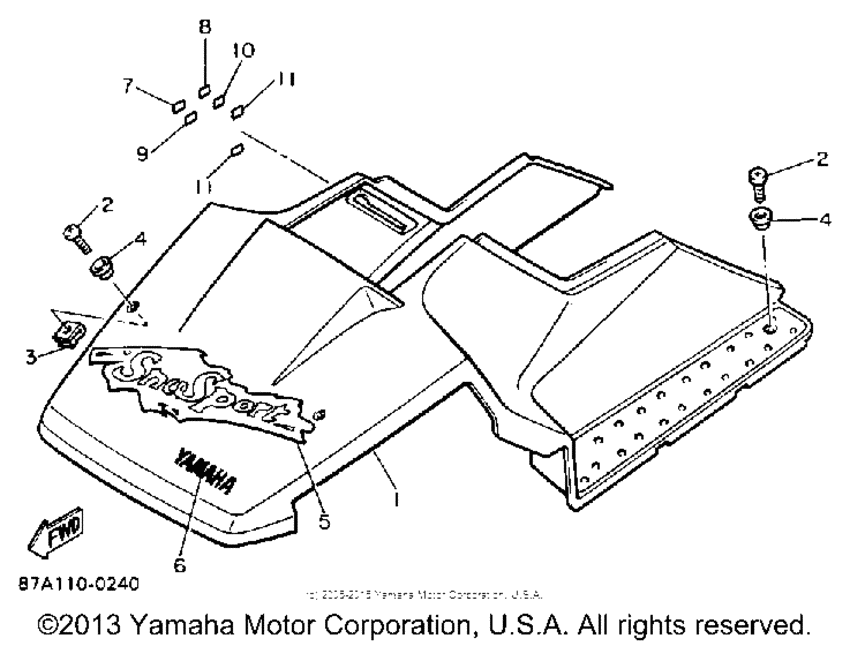

Shroud Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88A-77111-00-00
Shroud
|
88A-77111-00-00 |
— | ||
|
2
|
2
98903-06016-00 Screw, Bind |
98903-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
3
|
3
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
4
|
4
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
5
|
5
88A-77351-00-00
Emblem 1
RED |
88A-77351-00-00 |
— | ||
|
6
|
6
99241-00025-00 Emblem, Yamaha |
99241-00025-00 |
from US $5.68 |
||
| replacement | |||||
|
6
|
6
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
7
|
7
87A-77743-00-00 Indicator 3 |
87A-77743-00-00 |
from US $1.56 |
||
|
8
|
8
87A-77742-00-00 Indicator 2 |
87A-77742-00-00 |
from US $1.56 |
||
|
9
|
9
87A-77741-00-00 Indicator 1 |
87A-77741-00-00 |
from US $1.56 |
||
|
10
|
10
87A-77744-00-00 Indicator 4 |
87A-77744-00-00 |
from US $1.56 |
||
|
11
|
11
87A-77745-00-00 Indicator 5 |
87A-77745-00-00 |
from US $1.56 |
||
