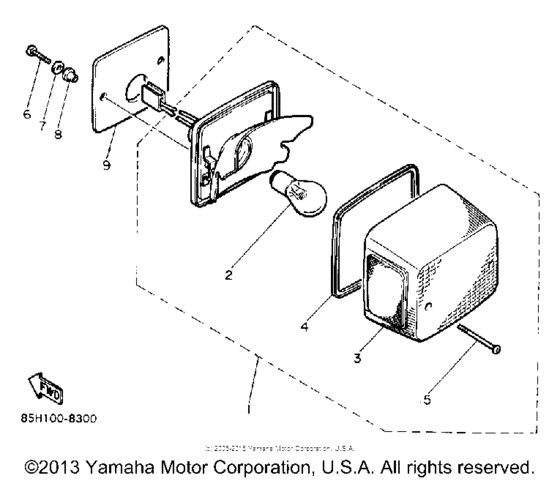

Taillight Diagram Yamaha SV125 SnoSport
- Model code
- SV125
- Engine Capacity
- 125
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85G-84710-00-00 Taillight Unit Assy |
85G-84710-00-00 |
from US $79.20 |
||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
85G-84721-00-00 Lens, Taillight |
85G-84721-00-00 |
from US $50.27 |
||
| replacement | |||||
|
3
|
3
85G-84710-00-00 Taillight Unit Assy |
85G-84710-00-00 |
from US $79.20 |
||
|
4
|
4
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
5
|
5
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
1M1-84526-60-00 Bolt |
1M1-84526-60-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
90109-06005-00 Bolt 337847520000 |
90109-06005-00 |
from US $1.98 |
||
|
7
|
7
90201-08103-00 Washer, Plate |
90201-08103-00 |
from US $1.28 |
||
|
8
|
8
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
9
|
9
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
