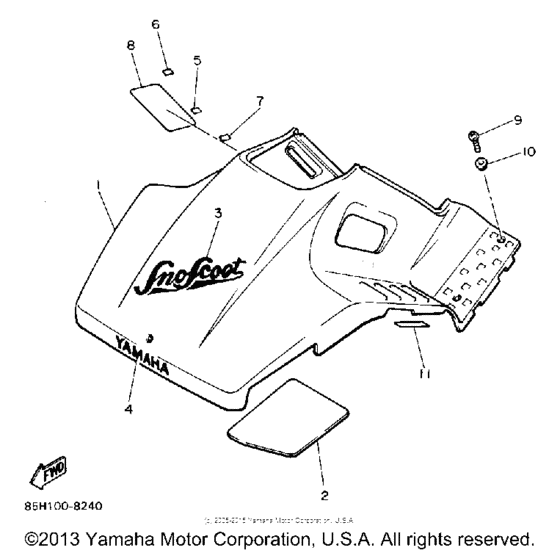

Shroud Diagram Yamaha SV80 SnoScoot
- Model code
- SV80
- Engine Capacity
- 80
- Year
- 1990
- Sales region
- USA
- Model
- SnoScoot
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85G-77111-00-00
Shroud
UR HEAT RED |
85G-77111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR HEAT RED |
999-99999-99-00 |
— | ||
|
1
|
1
86X-77111-00-00
Shroud
|
86X-77111-00-00 |
— | ||
|
2
|
2
85G-77261-00-00
Lining, Shroud 1
|
85G-77261-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
85G-77351-10-00
Emblem 1
|
85G-77351-10-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
99241-00030-00 Emblem, YamahaUR WHITE |
99241-00030-00 |
from US $9.92 |
||
| replacement | |||||
|
4
|
4
99241-00120-00 Emblem, YamahaUR WHITE |
99241-00120-00 |
from US $9.92 |
||
|
4
|
4
99242-00030-00
Emblem, Yamaha
UR RED |
99242-00030-00 |
— | ||
|
5
|
5
86X-77742-00-00
Indicator 2
|
86X-77742-00-00 |
— | ||
|
6
|
6
87A-77741-00-00 Indicator 1 |
87A-77741-00-00 |
from US $1.56 |
||
|
7
|
7
87A-77745-00-00 Indicator 5 |
87A-77745-00-00 |
from US $1.56 |
||
|
8
|
8
87A-77761-00-00
Label, Warning 1
|
87A-77761-00-00 |
— | ||
| replacement | |||||
|
8
|
8
87B-77761-00-00
Label, Warning 1
|
87B-77761-00-00 |
— | ||
|
9
|
9
98903-06012-00 Screw, Bind |
98903-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
10
|
10
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
11
|
11
85G-77762-00-00
Label, Warning 2
|
85G-77762-00-00 |
— | ||
| replacements | |||||
|
11
|
11
85G-77762-70-00
Label, Warning 2
|
85G-77762-70-00 |
— | ||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
