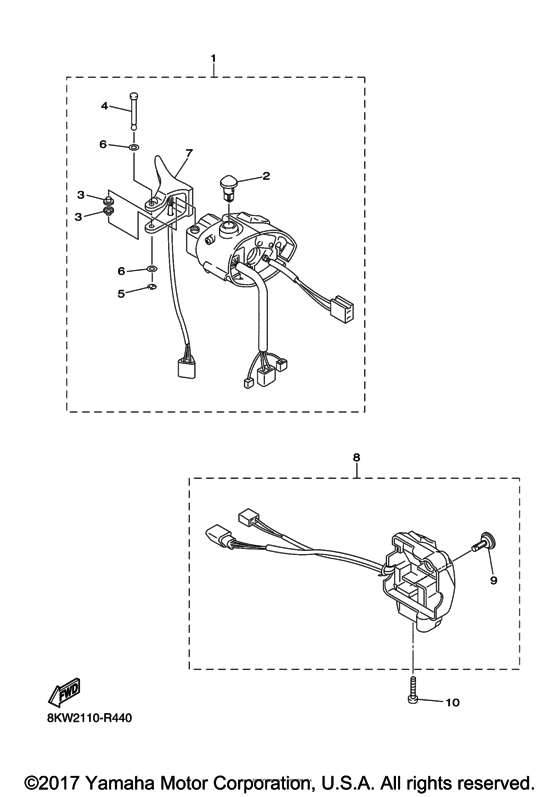

Handle switch & lever Diagram Yamaha VK 10 VK Professional II EPS
- Model code
- 8LP2
- Engine Capacity
- 973
- Year
- 2018
- Sales region
- USA
- Model
- VK Professional II EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KW-82720-00-00 Lever Holder Assy (Right) |
8KW-82720-00-00 |
from US $167.99 |
||
|
2
|
2
8GL-86284-09-00 Stop Switch |
8GL-86284-09-00 |
from US $11.07 |
||
|
3
|
3
85G-83956-00-00 Cap 1 |
85G-83956-00-00 |
from US $1.13 |
||
|
4
|
4
8R6-8399F-00-00 Shaft |
8R6-8399F-00-00 |
from US $3.44 |
||
|
5
|
5
99001-04600-00 Circlip |
99001-04600-00 |
from US $1.50 |
||
| replacement | |||||
|
5
|
5
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.50 |
||
|
6
|
6
8FP-82558-00-00 Washer |
8FP-82558-00-00 |
from US $1.05 |
||
|
7
|
7
8FA-82970-01-00 Thumb Warmer Assy |
8FA-82970-01-00 |
from US $69.68 |
||
|
8
|
8
8KW-83973-00-00 Switch, Handle 3 |
8KW-83973-00-00 |
from US $94.66 |
||
|
9
|
9
8GL-82526-09-00 Switch, Lamp |
8GL-82526-09-00 |
from US $7.63 |
||
|
10
|
10
98502-05016-00 Screw, Pan Head |
98502-05016-00 |
US $0.90 |
||
| replacements | |||||
|
10
|
10
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $0.90 |
||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
US $2.84 |
||
