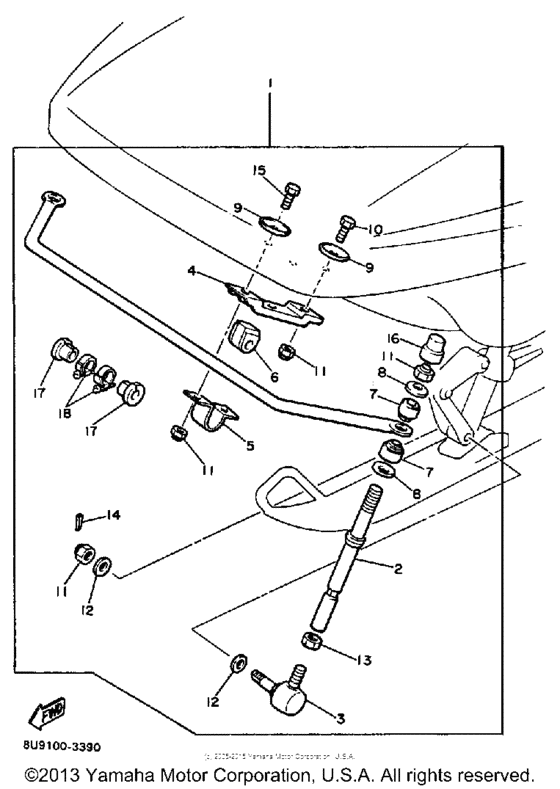

Stabilizer kit Diagram Yamaha VMX540
- Model code
- VMX540
- Engine Capacity
- 540
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8U9-W0051-00-00
Stabilizer Kit-Vmx
|
8U9-W0051-00-00 |
— | ||
|
2
|
2
8L9-2386F-10-00 Link, Stablzr Front |
8L9-2386F-10-00 |
US $53.71 |
||
|
3
|
3
8L9-23841-10-00 Joint, Universal 1 |
8L9-23841-10-00 |
US $26.64 |
||
|
4
|
4
8M6-23896-10-00 Bracket 1515 |
8M6-23896-10-00 |
US $33.68 |
||
| replacement | |||||
|
4
|
4
8L9-23896-10-00
Bracket 15
15 |
8L9-23896-10-00 |
— | ||
|
5
|
5
8M6-2386H-10-00 Cover, Stablzr Frt |
8M6-2386H-10-00 |
US $33.12 |
||
|
6
|
6
8L9-2386G-10-00
Bush, Stablzr Front
|
8L9-2386G-10-00 |
— | ||
|
7
|
7
8L9-2386J-10-00
Cushion
|
8L9-2386J-10-00 |
— | ||
|
8
|
8
8L9-2386K-10-00
Retainer
|
8L9-2386K-10-00 |
— | ||
|
9
|
9
8L9-23779-10-00
Washer
|
8L9-23779-10-00 |
— | ||
|
10
|
10
97306-10020-00 Bolt, Hexagon |
97306-10020-00 |
US $3.12 |
||
| replacement | |||||
|
10
|
10
97017-10020-00 Bolt |
97017-10020-00 |
from US $3.12 |
||
|
11
|
11
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
11
|
11
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
12
|
12
90201-115A7-00 Washer, Plate |
90201-115A7-00 |
from US $1.70 |
||
|
13
|
13
95306-10700-00 Nut (95307-10700-00 )95307-10700-00 |
95306-10700-00 |
from US $2.41 |
||
| replacement | |||||
|
13
|
13
95317-10700-00 Nut95307-10700-00 |
95317-10700-00 |
from US $2.41 |
||
|
14
|
14
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
15
|
15
970-26100-30-00 Bolt, Hexagon |
970-26100-30-00 |
from US $2.61 |
||
| replacement | |||||
|
15
|
15
97017-10030-00 Bolt |
97017-10030-00 |
from US $4.11 |
||
|
16
|
16
8L9-23742-10-00
Cap 2
|
8L9-23742-10-00 |
— | ||
|
17
|
17
8U7-2386N-10-00
Bush, Stabilizer
|
8U7-2386N-10-00 |
— | ||
|
18
|
18
90460-16192-00 Hose Clamp Assy |
90460-16192-00 |
from US $8.93 |
||
| replacement | |||||
|
18
|
18
90450-28073-00 Hose Clamp Assy |
90450-28073-00 |
from US $8.93 |
||
