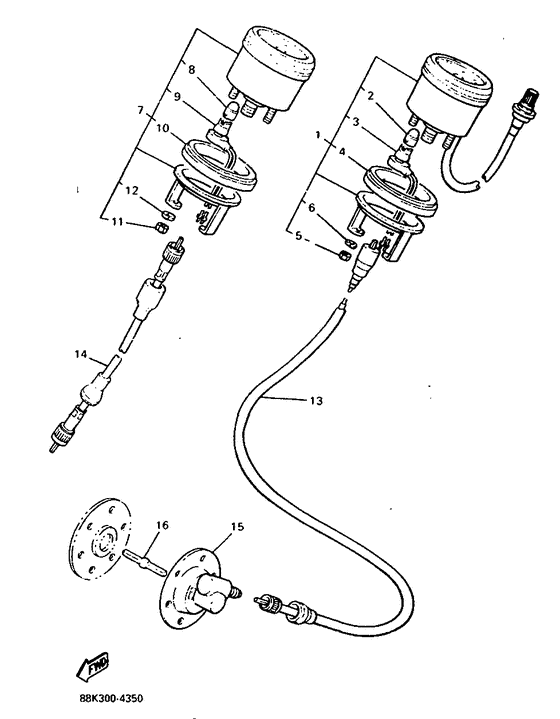

Meter Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88K-83510-20-00 Speedometer Assy (Km/h) |
88K-83510-20-00 |
US $166.19 |
||
|
02
|
02
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
02
|
02
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
03
|
03
2JX-83536-A0-00
Socket Cord Assy
|
2JX-83536-A0-00 |
— | ||
| replacement | |||||
|
03
|
03
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
04
|
04
88T-83523-00-00
Damper
|
88T-83523-00-00 |
— | ||
|
05
|
05
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
06
|
06
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
07
|
07
88T-83540-00-00 Tachometer Assembly |
88T-83540-00-00 |
from US $90.36 |
||
|
08
|
08
4G0-84744-00-00
Bulb (12v-3.4w)
|
4G0-84744-00-00 |
— | ||
|
09
|
09
8V7-83536-40-00 Socket Cord Assy |
8V7-83536-40-00 |
from US $26.35 |
||
| replacement | |||||
|
09
|
09
5E2-83509-20-00 Socket Cord Assy |
5E2-83509-20-00 |
from US $30.33 |
||
|
10
|
10
88T-83523-00-00
Damper
|
88T-83523-00-00 |
— | ||
|
11
|
11
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
85N-83550-01-00 Speedometer Cable Assembly |
85N-83550-01-00 |
US $57.11 |
||
|
14
|
14
88T-83560-00-00 Tachometer Cable Assembly |
88T-83560-00-00 |
US $44.60 |
||
|
15
|
15
8L8-47700-00-00
Meter Gear Housing Comp
|
8L8-47700-00-00 |
— | ||
|
16
|
16
8K4-47715-00-00 Joint |
8K4-47715-00-00 |
from US $5.10 |
||
