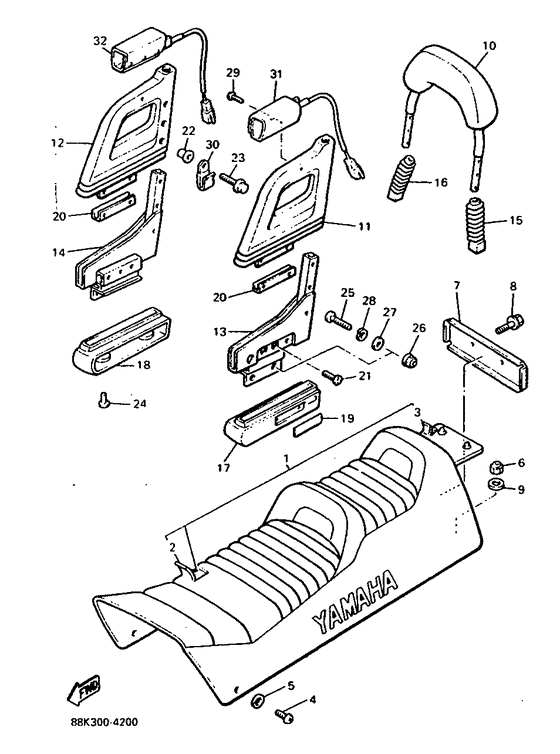

Seat Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88K-24730-10-00
Double Seat Assy
|
88K-24730-10-00 |
— | ||
|
02
|
02
88K-24711-10-00
Cover, Single Seat
|
88K-24711-10-00 |
— | ||
|
03
|
03
88T-77377-00-00
Cover, Luggage Box 2
|
88T-77377-00-00 |
— | ||
|
04
|
04
98906-06020-00 Screw, Bind |
98906-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
98907-06020-00 Screw, Bind |
98907-06020-00 |
from US $1.33 |
||
|
05
|
05
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
06
|
06
95706-08300-00 Nut, Nylon |
95706-08300-00 |
from US $1.57 |
||
| replacement | |||||
|
06
|
06
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
07
|
07
88K-24756-00-00 Cover, Tail |
88K-24756-00-00 |
from US $70.42 |
||
|
08
|
08
95816-06014-00 Bolt, Flange |
95816-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
09
|
09
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
10
|
10
8BA-24790-00-00
Seat Back Assembly
|
8BA-24790-00-00 |
— | ||
|
11
|
11
8Y7-2474A-01-00 Assist, Grip |
8Y7-2474A-01-00 |
from US $116.74 |
||
|
12
|
12
8Y7-2474W-01-00 Assist,grip 2 |
8Y7-2474W-01-00 |
from US $116.74 |
||
|
13
|
13
88K-2474H-00-00 Bracket, Assist Grip 1 |
88K-2474H-00-00 |
from US $115.60 |
||
|
14
|
14
88K-2474J-00-00 Bracket, Assist Grip 2 |
88K-2474J-00-00 |
from US $115.60 |
||
|
15
|
15
8Y7-2476U-00-00 Protector 1 |
8Y7-2476U-00-00 |
from US $27.02 |
||
|
16
|
16
8Y7-2476V-00-00 Protector,2 |
8Y7-2476V-00-00 |
from US $27.02 |
||
|
17
|
17
8Y7-24796-01-00 Cover |
8Y7-24796-01-00 |
from US $112.60 |
||
|
18
|
18
8Y7-2475X-01-00 Cover,2 |
8Y7-2475X-01-00 |
from US $84.33 |
||
|
19
|
19
83N-24786-00-00
Emblem
|
83N-24786-00-00 |
— | ||
|
20
|
20
8Y7-24746-00-00 Washer, Seat |
8Y7-24746-00-00 |
from US $13.95 |
||
|
21
|
21
98901-08016-00 Screw, Bind |
98901-08016-00 |
US $0.83 |
||
| replacement | |||||
|
21
|
21
98907-08016-00 Screw, Bind |
98907-08016-00 |
from US $0.83 |
||
|
22
|
22
90387-073M2-00 Collar |
90387-073M2-00 |
from US $6.94 |
||
|
23
|
23
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
23
|
23
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
23
|
23
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
24
|
24
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
24
|
24
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
25
|
25
90149-08295-00 Screw(88K) |
90149-08295-00 |
US $3.54 |
||
| replacement | |||||
|
25
|
25
92017-08045-00 Bolt, Button Head |
92017-08045-00 |
from US $2.59 |
||
|
26
|
26
95606-08200-00 Nut, Self-Locking |
95606-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
26
|
26
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
27
|
27
92906-08200-00 Washer |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
28
|
28
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
29
|
29
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
29
|
29
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
29
|
29
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
30
|
30
90465-06038-00 Clamp |
90465-06038-00 |
from US $2.41 |
||
| replacement | |||||
|
30
|
30
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
31
|
31
88T-2474B-00-00
Assist Grip Warmer Assembly 1
|
88T-2474B-00-00 |
— | ||
|
32
|
32
88T-2474C-00-00 Assist Grip Warmer Assembly 2 |
88T-2474C-00-00 |
from US $135.39 |
||
