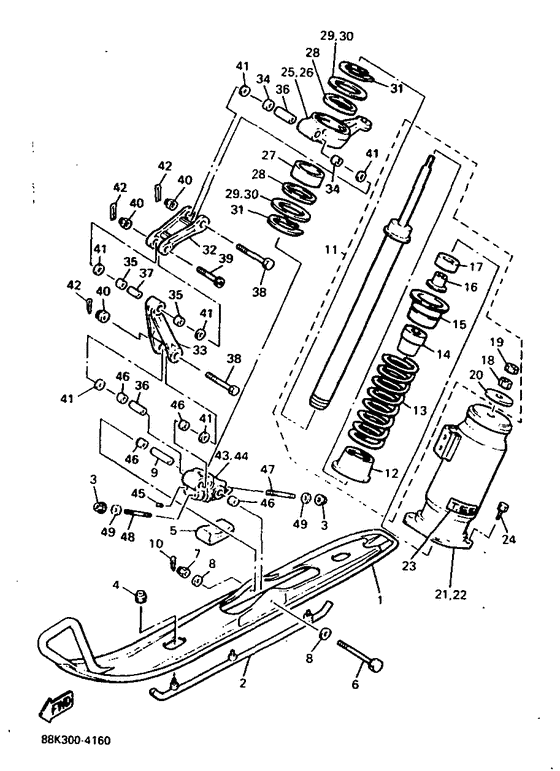

Ski Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88T-23710-01-00 Ski Comp. 1 |
88T-23710-01-00 |
from US $263.90 |
||
|
02
|
02
88T-23731-00-00 Runner 1 |
88T-23731-00-00 |
US $60.93 |
||
| replacements | |||||
|
02
|
02
88T-23731-00-XX
Runner 1 (88T-23731-00-00)
|
88T-23731-00-XX |
— | ||
|
02
|
02
88T-23731-01-XX
Runner 1 :sm
|
88T-23731-01-XX |
— | ||
|
03
|
03
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
03
|
03
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
04
|
04
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
04
|
04
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
05
|
05
88T-23743-00-00 Stopper 1 |
88T-23743-00-00 |
from US $11.26 |
||
|
06
|
06
90102-10050-00 Bolt, With Hole |
90102-10050-00 |
from US $11.33 |
||
|
07
|
07
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
07
|
07
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
08
|
08
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
09
|
09
90387-106J3-00 Collar |
90387-106J3-00 |
from US $4.39 |
||
|
10
|
10
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
11
|
11
87F-2376A-00-00
Absorber Assy 1
|
87F-2376A-00-00 |
— | ||
|
12
|
12
82M-23777-00-00 Seat, Spring 2 |
82M-23777-00-00 |
from US $8.64 |
||
|
13
|
13
90501-787F4-00 Spring, Compression |
90501-787F4-00 |
US $74.87 |
||
|
14
|
14
87F-22493-00-00 Bump, Stop |
87F-22493-00-00 |
US $24.77 |
||
|
15
|
15
8L0-23788-00-00 Plate, Back Up |
8L0-23788-00-00 |
from US $20.83 |
||
| replacement | |||||
|
15
|
15
8AB-23788-00-00
Plate, Back Up
|
8AB-23788-00-00 |
— | ||
|
16
|
16
90387-084R1-00 Collar |
90387-084R1-00 |
from US $7.37 |
||
|
17
|
17
82M-23779-00-00 Washer |
82M-23779-00-00 |
from US $3.26 |
||
|
18
|
18
90170-08220-00 Nut |
90170-08220-00 |
US $3.68 |
||
| replacement | |||||
|
18
|
18
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
19
|
19
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
19
|
19
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
19
|
19
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
20
|
20
90201-080L1-00 Washer, Plate |
90201-080L1-00 |
from US $1.56 |
||
|
21
|
21
89V-2376J-00-00
Holder, Absorber (Lh)
|
89V-2376J-00-00 |
— | ||
| replacement | |||||
|
21
|
21
87H-2376J-00-00
Holder, Absorber (Lh)
|
87H-2376J-00-00 |
— | ||
|
22
|
22
89V-2377J-00-00 Holder, Absorber (Rh)Holder, absorber 2 ((r.h0 |
89V-2377J-00-00 |
US $225.27 |
||
| replacement | |||||
|
22
|
22
87H-2377J-00-00 Holder, Absorber (Rh) |
87H-2377J-00-00 |
US $225.27 |
||
|
23
|
23
8BL-77371-00-00
Emblem 15
|
8BL-77371-00-00 |
— | ||
|
24
|
24
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
24
|
24
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
25
|
25
87F-23851-01-00 Arm, Outside 1 |
87F-23851-01-00 |
US $122.98 |
||
|
26
|
26
87F-23852-01-00 Arm, Outside 2 |
87F-23852-01-00 |
US $122.98 |
||
|
27
|
27
903-84531-75-00 Bush, Bimetal Formed |
903-84531-75-00 |
from US $16.86 |
||
|
28
|
28
93109-53036-00 Oil Seal |
93109-53036-00 |
from US $5.81 |
||
|
29
|
29
90201-536A1-00 Washer, Plate (T=1.0) |
90201-536A1-00 |
from US $3.26 |
||
|
30
|
30
90201-535H6-00 Washer, Plate (T=2.0) |
90201-535H6-00 |
from US $3.26 |
||
|
31
|
31
93410-52061-00 Circlip |
93410-52061-00 |
from US $3.54 |
||
|
32
|
32
8L0-2382E-01-00 Arm, Front 1 |
8L0-2382E-01-00 |
from US $84.97 |
||
|
33
|
33
8L0-2382F-00-00 Arm, Front 2 |
8L0-2382F-00-00 |
from US $44.59 |
||
|
34
|
34
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
35
|
35
903-84140-96-00 Bush, Bimetal Formed |
903-84140-96-00 |
from US $3.97 |
||
|
36
|
36
90387-101Y9-00 Collar |
90387-101Y9-00 |
from US $5.10 |
||
|
37
|
37
90387-100A4-00 Collar |
90387-100A4-00 |
from US $3.32 |
||
|
38
|
38
90102-10039-00 Bolt, With Hole |
90102-10039-00 |
from US $4.11 |
||
|
39
|
39
90110-10173-00 Bolt, Hex Socket Head |
90110-10173-00 |
from US $10.63 |
||
|
40
|
40
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
40
|
40
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
41
|
41
90202-14037-00 Washer, Plate |
90202-14037-00 |
from US $1.66 |
||
|
42
|
42
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
42
|
42
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
43
|
43
84M-2376E-00-00 Bracket 1 |
84M-2376E-00-00 |
from US $163.03 |
||
|
44
|
44
84M-2377E-00-00 Bracket 2 |
84M-2377E-00-00 |
from US $163.03 |
||
|
45
|
45
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
46
|
46
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
47
|
47
95611-08655-00 Bolt, Stud |
95611-08655-00 |
from US $3.35 |
||
| replacement | |||||
|
47
|
47
95617-08655-00 Bolt, Stud |
95617-08655-00 |
from US $5.81 |
||
|
48
|
48
95611-08610-00
Bolt, Stud
|
95611-08610-00 |
— | ||
|
49
|
49
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
49
|
49
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
