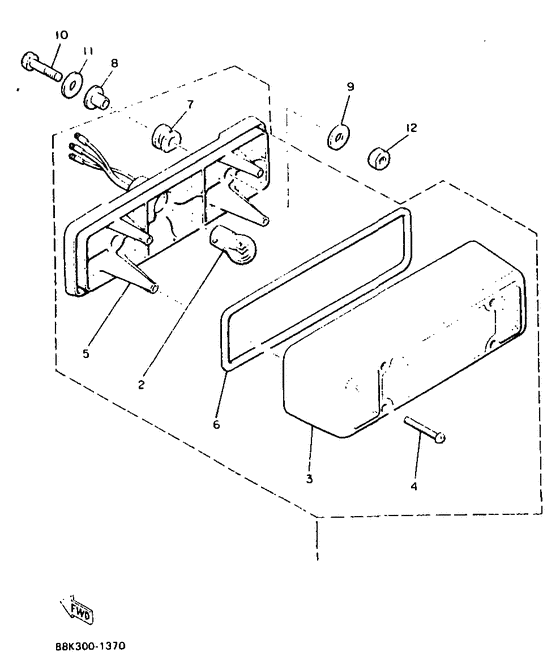

Taillight Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
82M-84710-00-00 Taillight Unit Assy |
82M-84710-00-00 |
from US $50.11 |
||
| replacement | |||||
|
01
|
01
82M-84710-01-00 Taillight Unit Assy |
82M-84710-01-00 |
US $59.01 |
||
|
02
|
02
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
from US $4.53 |
||
| replacement | |||||
|
02
|
02
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
03
|
03
8K4-84721-00-00
Lens, Taillight
|
8K4-84721-00-00 |
— | ||
| replacement | |||||
|
03
|
03
8K4-84721-01-00 Lens, Taillight |
8K4-84721-01-00 |
from US $45.59 |
||
|
04
|
04
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
05
|
05
82M-84711-00-00 Base, Taillight |
82M-84711-00-00 |
from US $19.98 |
||
| replacement | |||||
|
05
|
05
82M-84711-01-00 BASE, TAILLIGHT |
82M-84711-01-00 |
from US $14.99 |
||
|
06
|
06
87M-84723-00-00 Gasket,lens |
87M-84723-00-00 |
from US $9.67 |
||
| replacement | |||||
|
06
|
06
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
07
|
07
8K4-84718-00-00 Grommet |
8K4-84718-00-00 |
from US $2.41 |
||
|
08
|
08
90387-060G8-00 Collar (10V) |
90387-060G8-00 |
from US $4.96 |
||
| replacement | |||||
|
08
|
08
90387-06166-00 Collar |
90387-06166-00 |
from US $4.96 |
||
|
09
|
09
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
10
|
10
97006-06035-00 Bolt, Hex |
97006-06035-00 |
from US $2.34 |
||
| replacement | |||||
|
10
|
10
97017-06035-00 Bolt |
97017-06035-00 |
from US $2.41 |
||
|
11
|
11
90201-060A3-00 Washer, Plate |
90201-060A3-00 |
from US $1.98 |
||
| replacement | |||||
|
11
|
11
90201-06086-00 Washer, Plate |
90201-06086-00 |
from US $1.98 |
||
|
12
|
12
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
