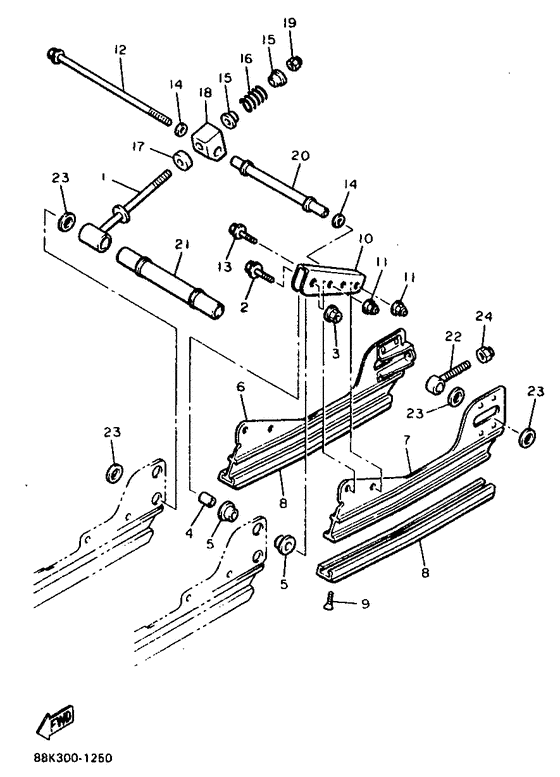

Track suspension 3 Diagram Yamaha VT480 Venture 480 TF
- Model code
- 88K4
- Engine Capacity
- 485
- Year
- 1994
- Sales region
- Europe (General) (999)
- Colour
- Bluish Black Metallic 2 (BBM2; 0198)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88K-47337-00-00 Shaft, Pivot |
88K-47337-00-00 |
US $59.85 |
||
|
02
|
02
95811-10030-00 Bolt, Flange (95812-10030-00) |
95811-10030-00 |
from US $1.07 |
||
| replacement | |||||
|
02
|
02
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
03
|
03
90185-10115-00 Nut, Self-Locking |
90185-10115-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
04
|
04
90387-105T5-00 Collar |
90387-105T5-00 |
from US $1.70 |
||
|
05
|
05
90386-16154-00 Bush |
90386-16154-00 |
from US $13.32 |
||
|
06
|
06
88K-47412-00-00 Frame, Sliding 2 |
88K-47412-00-00 |
US $96.82 |
||
| replacement | |||||
|
06
|
06
88K-W4741-00-00
Frame, Sliding
|
88K-W4741-00-00 |
— | ||
|
07
|
07
88K-47413-00-00 Frame, Sliding 3 |
88K-47413-00-00 |
US $86.78 |
||
| replacement | |||||
|
07
|
07
88K-W4741-00-00
Frame, Sliding
|
88K-W4741-00-00 |
— | ||
|
08
|
08
88K-47424-00-00 Runner, Sliding 4 |
88K-47424-00-00 |
from US $29.77 |
||
| replacements | |||||
|
08
|
08
88K-47424-10-XX
Slider P16
|
88K-47424-10-XX |
— | ||
|
08
|
08
88K-47424-10-00 Runner, Sliding |
88K-47424-10-00 |
from US $26.69 |
||
|
09
|
09
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
09
|
09
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
10
|
10
83R-47333-00-00 Arm, Pivot 3 |
83R-47333-00-00 |
US $32.20 |
||
| replacement | |||||
|
10
|
10
83R-47333-01-00 Arm, Pivot 3 |
83R-47333-01-00 |
US $32.20 |
||
|
11
|
11
95612-08200-00 Nut, Self-Locking |
95612-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
12
|
12
90105-08325-00
Bolt, Washer Based
|
90105-08325-00 |
— | ||
|
13
|
13
95822-08030-00 Bolt, Flange |
95822-08030-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
14
|
14
90201-08649-00 Washer, Plate |
90201-08649-00 |
from US $1.28 |
||
|
15
|
15
83R-23768-00-00 Seat, Spring 1 |
83R-23768-00-00 |
from US $4.53 |
||
|
16
|
16
90501-552G9-00 Spring, Compression |
90501-552G9-00 |
US $8.77 |
||
|
17
|
17
83R-47335-00-00 Spring |
83R-47335-00-00 |
from US $8.64 |
||
|
18
|
18
83R-47446-00-00 Hook 1 |
83R-47446-00-00 |
from US $18.42 |
||
|
19
|
19
95712-12300-00 Nut, Nylon (79N) |
95712-12300-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
95717-12300-00 Nut, Flange |
95717-12300-00 |
from US $2.66 |
||
|
20
|
20
88K-47478-01-00 Collar 2 |
88K-47478-01-00 |
US $72.95 |
||
|
21
|
21
88K-47469-00-00 Collar 1 |
88K-47469-00-00 |
US $47.52 |
||
|
22
|
22
8K2-47479-01-00 Collar 3 |
8K2-47479-01-00 |
from US $23.66 |
||
|
23
|
23
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.28 |
||
|
24
|
24
95701-10300-00 Nut, With Washer |
95701-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
24
|
24
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
