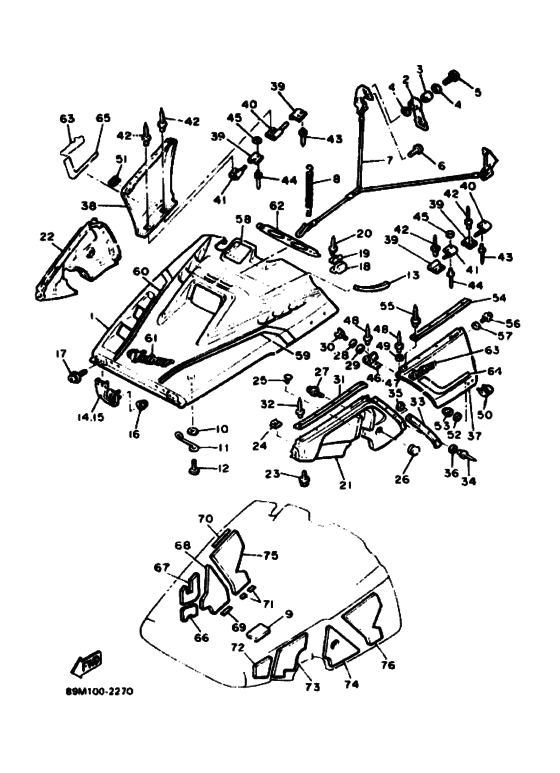

Shroud Diagram Yamaha VT480 Venture 480
- Model code
- 89M1
- Engine Capacity
- 485
- Year
- 1992
- Sales region
- Europe (020)
- Colour
- Deep Red Metallic 2 (DRM2; 0188)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88T-Y7711-00-00
Shroud Assembly
|
88T-Y7711-00-00 |
— | ||
|
2
|
2
8V0-77171-00-00 Body, Latch 1 |
8V0-77171-00-00 |
from US $6.38 |
||
|
3
|
3
90387-06241-00 Collar |
90387-06241-00 |
from US $1.28 |
||
|
4
|
4
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
4
|
4
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
4
|
4
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
5
|
5
98906-06030-00 Screw, Bind |
98906-06030-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
98907-06030-00 Screw, Bind |
98907-06030-00 |
from US $1.56 |
||
|
6
|
6
98906-06012-00 Screw, Bind |
98906-06012-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
7
|
7
88T-77118-00-00 Stopper, Shroud |
88T-77118-00-00 |
US $48.76 |
||
| replacement | |||||
|
7
|
7
88T-77118-01-00 Stopper, Shroud |
88T-77118-01-00 |
US $48.76 |
||
|
8
|
8
80L-77159-00-00
Clamp, Rod
|
80L-77159-00-00 |
— | ||
|
9
|
9
88T-77277-00-00 Damper, Noise 1717 |
88T-77277-00-00 |
from US $3.24 |
||
|
10
|
10
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
11
|
11
90465-20145-00 Clamp |
90465-20145-00 |
US $3.11 |
||
|
12
|
12
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
12
|
12
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
12
|
12
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
13
|
13
88T-77198-00-00 Damper 1 |
88T-77198-00-00 |
US $3.08 |
||
|
14
|
14
88T-77140-00-00 Hinge Assembly |
88T-77140-00-00 |
from US $46.26 |
||
|
15
|
15
88T-7714A-00-00 Hinge Assembly 2 |
88T-7714A-00-00 |
from US $46.26 |
||
|
16
|
16
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
17
|
17
901-59060-71-00
Screw, With Washer
|
901-59060-71-00 |
— | ||
| replacements | |||||
|
17
|
17
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
17
|
17
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
18
|
18
8V0-77188-00-00 Stopper |
8V0-77188-00-00 |
US $8.48 |
||
|
19
|
19
8V0-77116-00-00 Washer, Special |
8V0-77116-00-00 |
from US $8.50 |
||
| replacement | |||||
|
19
|
19
8V0-77116-01-00 Washer, Special |
8V0-77116-01-00 |
from US $8.50 |
||
|
20
|
20
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.26 |
||
|
21
|
21
88T-21982-01-00 Hood 1 |
88T-21982-01-00 |
from US $216.57 |
||
|
22
|
22
88T-21983-00-00
Hood 2
|
88T-21983-00-00 |
— | ||
|
23
|
23
90119-06088-00 Bolt, With Washer (33A) |
90119-06088-00 |
from US $1.35 |
||
| replacement | |||||
|
23
|
23
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
24
|
24
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
25
|
25
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
26
|
26
90480-40538-00
Grommet
|
90480-40538-00 |
— | ||
|
27
|
27
90119-06203-00 Bolt, With Washer |
90119-06203-00 |
from US $1.70 |
||
| replacements | |||||
|
27
|
27
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
27
|
27
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
|
28
|
28
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
28
|
28
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
29
|
29
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
30
|
30
90122-06020-00 Bolt, Wing |
90122-06020-00 |
from US $5.67 |
||
|
31
|
31
87F-77515-00-00
Bush, Rubber 1
|
87F-77515-00-00 |
— | ||
|
32
|
32
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
32
|
32
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
33
|
33
8V0-2196T-00-00 Trim 1 |
8V0-2196T-00-00 |
from US $25.70 |
||
|
34
|
34
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
35
|
35
90201-044A2-00 Washer, Plate |
90201-044A2-00 |
from US $1.82 |
||
| replacement | |||||
|
35
|
35
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
36
|
36
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
37
|
37
88T-2197H-00-00
Hood 3
|
88T-2197H-00-00 |
— | ||
|
38
|
38
88T-2198H-00-00
Hood 4
|
88T-2198H-00-00 |
— | ||
|
39
|
39
88F-2194X-00-00
Bracket, 1
|
88F-2194X-00-00 |
— | ||
|
40
|
40
88F-2195X-00-00
Bracket 2
|
88F-2195X-00-00 |
— | ||
| replacement | |||||
|
40
|
40
88R-2195X-00-00
Bracket 2
|
88R-2195X-00-00 |
— | ||
|
41
|
41
88F-2196F-00-00 Bracket 3 |
88F-2196F-00-00 |
from US $13.70 |
||
|
42
|
42
90267-48059-00 Rivet, Blind (4.8X12.3) |
90267-48059-00 |
from US $1.70 |
||
|
43
|
43
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
44
|
44
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
44
|
44
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
45
|
45
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
45
|
45
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
45
|
45
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
46
|
46
87F-77553-01-00 Protector 3LH |
87F-77553-01-00 |
US $8.37 |
||
|
47
|
47
87F-77554-01-00 Protector 4RH |
87F-77554-01-00 |
from US $8.08 |
||
|
48
|
48
90267-48088-00 Rivet, Blind |
90267-48088-00 |
from US $1.28 |
||
|
49
|
49
92906-05200-00 Washer |
92906-05200-00 |
from US $1.56 |
||
| replacements | |||||
|
49
|
49
92907-05200-00 Washer |
92907-05200-00 |
from US $1.56 |
||
|
49
|
49
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
50
|
50
85L-77551-00-00 Protector 1 |
85L-77551-00-00 |
from US $20.86 |
||
|
51
|
51
85L-77552-00-00
Protector 2
|
85L-77552-00-00 |
— | ||
|
52
|
52
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
53
|
53
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
53
|
53
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
54
|
54
8V0-77516-01-00 Bush, Rubber 2 |
8V0-77516-01-00 |
from US $17.78 |
||
|
55
|
55
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
55
|
55
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
|
56
|
56
8V0-77175-00-00 Holder, Latch |
8V0-77175-00-00 |
from US $9.63 |
||
|
57
|
57
4U5-2176E-00-00 Plate |
4U5-2176E-00-00 |
from US $3.40 |
||
|
58
|
58
88T-77763-00-00
Label, Warning 3
|
88T-77763-00-00 |
— | ||
|
59
|
59
89M-77163-00-00
Ornament 1
|
89M-77163-00-00 |
— | ||
|
60
|
60
89M-77164-00-00
Ornament 2
|
89M-77164-00-00 |
— | ||
|
61
|
61
89M-77141-00-00 Emblem 1 |
89M-77141-00-00 |
from US $62.24 |
||
|
62
|
62
88T-77715-00-00
Ormnt, Instr Pnl 1Panel 1
|
88T-77715-00-00 |
— | ||
|
63
|
63
89M-77142-00-00
Emblem 2
|
89M-77142-00-00 |
— | ||
|
64
|
64
89M-77355-00-00
Emblem 5
|
89M-77355-00-00 |
— | ||
|
65
|
65
89M-77356-00-00
Emblem 6
|
89M-77356-00-00 |
— | ||
|
66
|
66
87F-77265-01-00 Lining, Shroud 5 |
87F-77265-01-00 |
from US $16.29 |
||
|
67
|
67
87F-77266-01-00 Lining, Shroud 6 |
87F-77266-01-00 |
US $16.29 |
||
|
68
|
68
87F-77276-01-00 Damper, Noise 1616 |
87F-77276-01-00 |
US $45.14 |
||
|
69
|
69
8V0-7717E-00-00 Tape 1 |
8V0-7717E-00-00 |
from US $3.08 |
||
| replacement | |||||
|
69
|
69
8V0-7717E-01-00 Tape 1 |
8V0-7717E-01-00 |
from US $3.26 |
||
|
70
|
70
8V0-7717F-00-00 Tape 2 |
8V0-7717F-00-00 |
US $1.26 |
||
| replacement | |||||
|
70
|
70
8V0-7717F-01-00 Tape 2 |
8V0-7717F-01-00 |
US $1.26 |
||
|
71
|
71
8V0-7717H-00-00 Tape 3 |
8V0-7717H-00-00 |
from US $0.95 |
||
| replacement | |||||
|
71
|
71
82M-7717G-01-00 Tape 3 |
82M-7717G-01-00 |
from US $1.13 |
||
|
72
|
72
87F-77272-00-00 Damper, Noise 1212 |
87F-77272-00-00 |
US $5.87 |
||
| replacement | |||||
|
72
|
72
999-99999-99-00
Not Available
12 |
999-99999-99-00 |
— | ||
|
73
|
73
87F-77273-00-00 Damper, Noise 1313 |
87F-77273-00-00 |
from US $18.99 |
||
|
74
|
74
87F-77274-00-00
Damper, Noise 14
14 |
87F-77274-00-00 |
— | ||
| replacement | |||||
|
74
|
74
999-99999-99-00
Not Available
14 |
999-99999-99-00 |
— | ||
|
75
|
75
8V0-77266-00-00 Lining, Shroud 6 |
8V0-77266-00-00 |
US $27.83 |
||
| replacement | |||||
|
75
|
75
8V0-77266-01-00 Lining, Shroud 6 |
8V0-77266-01-00 |
US $27.72 |
||
|
76
|
76
8V0-77275-00-00 Damper, Noise 1515 |
8V0-77275-00-00 |
US $48.85 |
||
