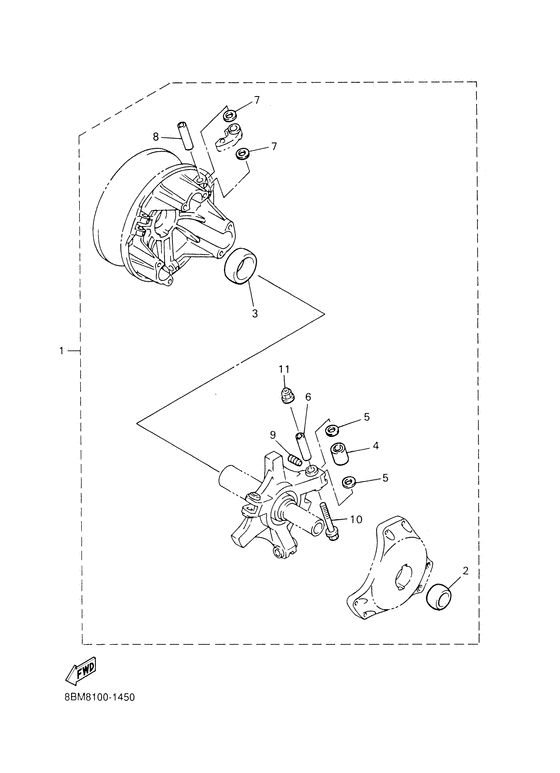

Alternate (DRIVE) Diagram Yamaha VT480 Venture 480 TF
- Model code
- 8BM8
- Engine Capacity
- 485
- Year
- 2001
- Sales region
- Canada (010)
- Colour
- Dark Cyan Metallic 2 (DCM2; 0337)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Model
- Venture 480 TF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
88R-00000-51-00 Clutch Tune-Up Kit (R)Ap |
88R-00000-51-00 |
from US $273.36 |
||
|
02
|
02
90389-28032-00 Bush |
90389-28032-00 |
from US $34.57 |
||
|
03
|
03
90389-41031-00 Bush |
90389-41031-00 |
from US $39.65 |
||
|
04
|
04
88R-17624-01-00 Roller |
88R-17624-01-00 |
from US $35.28 |
||
|
05
|
05
902-02082-04-00 Washer, Plate |
902-02082-04-00 |
from US $1.42 |
||
|
06
|
06
90387-0501R-00 Collar(8Ax) |
90387-0501R-00 |
from US $9.35 |
||
| replacement | |||||
|
06
|
06
903-87051-4T-00 Collar |
903-87051-4T-00 |
from US $9.35 |
||
|
07
|
07
902-02082-04-00 Washer, Plate |
902-02082-04-00 |
from US $1.42 |
||
|
08
|
08
90387-0501R-00 Collar(8Ax) |
90387-0501R-00 |
from US $9.35 |
||
| replacement | |||||
|
08
|
08
903-87051-4T-00 Collar |
903-87051-4T-00 |
from US $9.35 |
||
|
09
|
09
901-13050-53-00
Bolt, Set
|
901-13050-53-00 |
— | ||
| replacement | |||||
|
09
|
09
901-13050-41-00 Bolt, Set |
901-13050-41-00 |
from US $1.17 |
||
|
10
|
10
90105-05644-00 Bolt, Flange |
90105-05644-00 |
from US $1.35 |
||
|
11
|
11
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
