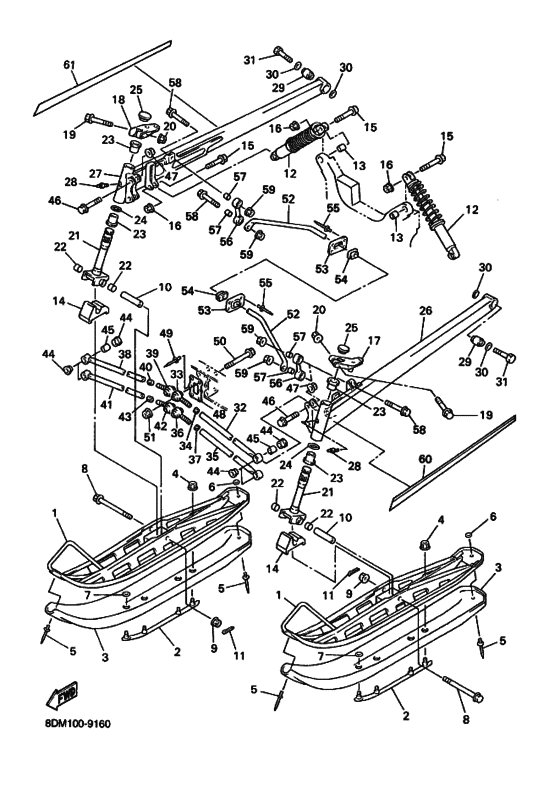

Ski Diagram Yamaha VT700/ VT70 Venture 700
- Model code
- 8DM2
- Engine Capacity
- 698
- Year
- 1999
- Sales region
- Europe (020)
- Colour
- Vivid Red Cocktail 7 (VRC7; 0580)
- Color Variant
- B
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CV-23710-00-00 Ski Comp. 1 |
8CV-23710-00-00 |
from US $289.42 |
||
|
2
|
2
8CS-23731-00-00 Runner 1 |
8CS-23731-00-00 |
from US $134.82 |
||
|
3
|
3
8CV-23732-10-00 Runner 2 |
8CV-23732-10-00 |
US $64.58 |
||
| replacement | |||||
|
3
|
3
8CV-23732-11-BK Ski Skin |
8CV-23732-11-BK |
US $61.76 |
||
|
4
|
4
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
5
|
5
90267-48184-00 Rivet, Blind |
90267-48184-00 |
from US $3.40 |
||
|
6
|
6
902-01043-25-00
Washer, Plate
|
902-01043-25-00 |
— | ||
| replacements | |||||
|
6
|
6
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
6
|
6
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
7
|
7
90201-08020-00 Washer, Plate |
90201-08020-00 |
from US $2.55 |
||
|
8
|
8
90105-10438-00 Bolt, Flange |
90105-10438-00 |
from US $10.26 |
||
|
9
|
9
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
9
|
9
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
10
|
10
90387-1012H-00 Collar |
90387-1012H-00 |
from US $7.23 |
||
|
11
|
11
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
12
|
12
8DM-2376A-00-00 Absorber Assy 1 |
8DM-2376A-00-00 |
from US $326.13 |
||
| replacement | |||||
|
12
|
12
8DM-2376A-10-00 Absorber Assy 1 |
8DM-2376A-10-00 |
US $664.92 |
||
|
13
|
13
8CR-2376B-00-00 Bush |
8CR-2376B-00-00 |
from US $6.02 |
||
|
14
|
14
8CS-23743-00-00 Stopper 1 |
8CS-23743-00-00 |
US $26.77 |
||
|
15
|
15
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.54 |
||
| replacements | |||||
|
15
|
15
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.54 |
||
|
15
|
15
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.55 |
||
|
16
|
16
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
16
|
16
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
17
|
17
8CR-23851-00-00 Arm, Outside 1 |
8CR-23851-00-00 |
from US $31.17 |
||
|
18
|
18
8CR-23852-00-00 Arm, Outside 2 |
8CR-23852-00-00 |
US $44.84 |
||
|
19
|
19
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
20
|
20
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
20
|
20
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
21
|
21
8CR-23853-02-00 Column, Ski Assy |
8CR-23853-02-00 |
from US $105.55 |
||
| replacement | |||||
|
21
|
21
8CR-23803-01-00 Column, Ski Assy |
8CR-23803-01-00 |
from US $105.55 |
||
|
22
|
22
90384-16251-00 Bush, Bimetal Formed |
90384-16251-00 |
from US $3.54 |
||
|
23
|
23
90381-25115-00 Bush, Solid |
90381-25115-00 |
from US $4.25 |
||
|
24
|
24
90201-301G3-00 Washer, Plate |
90201-301G3-00 |
from US $4.11 |
||
|
25
|
25
8CR-23741-10-00 Cap 1 |
8CR-23741-10-00 |
from US $2.69 |
||
|
26
|
26
8CR-2382E-03-00 Arm, Front 1 |
8CR-2382E-03-00 |
from US $286.85 |
||
|
27
|
27
8CR-2382F-03-00 Arm, Front 2 |
8CR-2382F-03-00 |
from US $331.58 |
||
|
28
|
28
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
28
|
28
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
29
|
29
8CR-2516A-00-00 Damper |
8CR-2516A-00-00 |
from US $11.62 |
||
|
30
|
30
90201-120T5-00 Washer, Plate |
90201-120T5-00 |
from US $2.41 |
||
|
31
|
31
90101-12780-00 Bolt(8Cj) |
90101-12780-00 |
from US $5.24 |
||
| replacement | |||||
|
31
|
31
901-01120-46-00 Bolt(8Cj) |
901-01120-46-00 |
from US $4.41 |
||
|
32
|
32
8CR-2384E-02-00 Arm, Control 1 |
8CR-2384E-02-00 |
from US $47.80 |
||
|
33
|
33
8CR-23823-01-00 Joint 2 |
8CR-23823-01-00 |
from US $52.50 |
||
| replacement | |||||
|
33
|
33
8DN-23823-00-00 Joint 2 |
8DN-23823-00-00 |
from US $52.50 |
||
|
34
|
34
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
35
|
35
8CR-2384F-02-00 Arm, Control 2 |
8CR-2384F-02-00 |
from US $47.80 |
||
|
36
|
36
8CR-23832-00-00
Joint 3
|
8CR-23832-00-00 |
— | ||
| replacement | |||||
|
36
|
36
8DN-23832-00-00
Joint 3
|
8DN-23832-00-00 |
— | ||
|
37
|
37
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
38
|
38
8CR-2384E-02-00 Arm, Control 1 |
8CR-2384E-02-00 |
from US $47.80 |
||
|
39
|
39
8CR-23823-01-00 Joint 2 |
8CR-23823-01-00 |
from US $52.50 |
||
| replacement | |||||
|
39
|
39
8DN-23823-00-00 Joint 2 |
8DN-23823-00-00 |
from US $52.50 |
||
|
40
|
40
95317-12600-00 Nut(6Ta) |
95317-12600-00 |
from US $1.70 |
||
| replacement | |||||
|
40
|
40
95337-12600-00 Nut |
95337-12600-00 |
from US $1.70 |
||
|
41
|
41
8CR-2384F-02-00 Arm, Control 2 |
8CR-2384F-02-00 |
from US $47.80 |
||
|
42
|
42
8CR-23832-00-00
Joint 3
|
8CR-23832-00-00 |
— | ||
| replacement | |||||
|
42
|
42
8DN-23832-00-00
Joint 3
|
8DN-23832-00-00 |
— | ||
|
43
|
43
95314-14600-00
Nut
|
95314-14600-00 |
— | ||
|
44
|
44
90381-17110-00 Bush, Solid |
90381-17110-00 |
from US $4.11 |
||
|
45
|
45
90387-1009K-00 Collar |
90387-1009K-00 |
from US $4.53 |
||
|
46
|
46
90105-100A9-00 Bolt, Flange |
90105-100A9-00 |
from US $3.54 |
||
| replacements | |||||
|
46
|
46
90105-10030-00 Bolt, Flange |
90105-10030-00 |
from US $3.54 |
||
|
46
|
46
95817-10050-00 Bolt, Flange |
95817-10050-00 |
from US $2.55 |
||
|
47
|
47
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
47
|
47
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
48
|
48
8DF-23779-00-00 Washer |
8DF-23779-00-00 |
from US $22.67 |
||
|
49
|
49
90267-48057-00 Rivet, Blind |
90267-48057-00 |
from US $1.70 |
||
|
50
|
50
90105-121A8-00 Bolt, Washer Based (901-05121-A |
90105-121A8-00 |
from US $5.09 |
||
| replacement | |||||
|
50
|
50
901-05124-A2-00 Bolt, Flange |
901-05124-A2-00 |
from US $4.56 |
||
|
51
|
51
956-17122-00-00 Nut, Self-Locking |
956-17122-00-00 |
from US $7.81 |
||
| replacement | |||||
|
51
|
51
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
52
|
52
8CR-2386E-00-00 Bar, Stabilizer Front |
8CR-2386E-00-00 |
from US $221.06 |
||
|
53
|
53
8CR-2386H-00-00 Cover, Stabilizer Front |
8CR-2386H-00-00 |
from US $2.20 |
||
|
54
|
54
8CR-2386G-00-00 Bush, Stabilizer Front |
8CR-2386G-00-00 |
US $5.99 |
||
|
55
|
55
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
56
|
56
8CR-2385L-00-00 Joint, Stabilizer 1 |
8CR-2385L-00-00 |
from US $89.94 |
||
|
57
|
57
90387-087L3-00 Collar |
90387-087L3-00 |
from US $1.98 |
||
|
58
|
58
90105-08345-00 Bolt, Flange |
90105-08345-00 |
from US $1.07 |
||
| replacement | |||||
|
58
|
58
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
59
|
59
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
59
|
59
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
60
|
60
8EB-77371-00-00
Emblem 15
15; FOR USA/CAN |
8EB-77371-00-00 |
— | ||
|
60
|
60
8EB-77371-10-00
Emblem 15
15; FOR EUR |
8EB-77371-10-00 |
— | ||
|
61
|
61
8EB-77372-00-00
Emblem 16
16; FOR USA/CAN |
8EB-77372-00-00 |
— | ||
|
61
|
61
8EB-77372-10-00
Emblem 16
16; FOR EUR |
8EB-77372-10-00 |
— | ||
