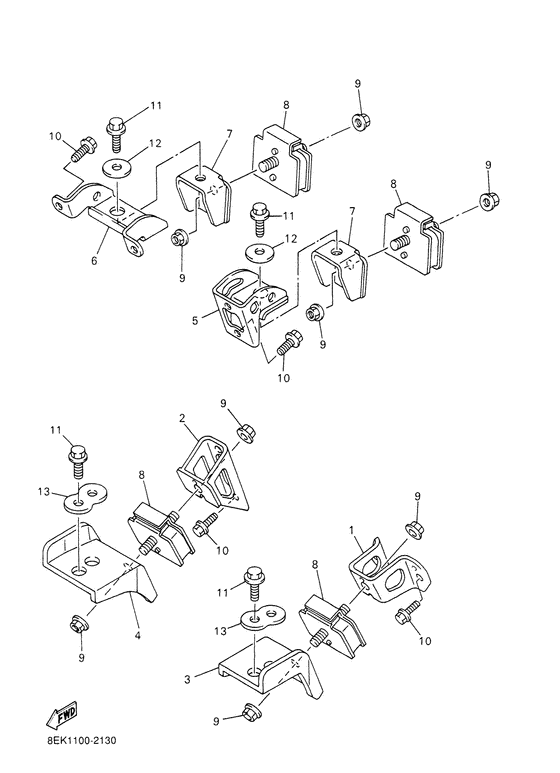

Engine bracket Diagram Yamaha VT700/ VT70 Venture 700
- Model code
- 8FF2
- Engine Capacity
- 698
- Year
- 2004
- Sales region
- Finland (010)
- Colour
- Bluish Silver 4 (BS4; 0820)
- Power
- 125 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8EK-21415-00-00 Bracket, Front Upper 1 |
8EK-21415-00-00 |
from US $28.42 |
||
|
02
|
02
8EK-21416-00-00 Bracket, Front Upper 2 |
8EK-21416-00-00 |
US $23.87 |
||
|
03
|
03
8DF-21417-01-00 Bracket, Front Lower 1 |
8DF-21417-01-00 |
from US $33.91 |
||
|
04
|
04
8DF-21418-00-00 Bracket, Front Lower 2 |
8DF-21418-00-00 |
from US $41.49 |
||
|
05
|
05
8EK-21425-00-00 Bracket, Rear Upper 1 |
8EK-21425-00-00 |
from US $22.77 |
||
|
06
|
06
8EK-21426-00-00 Bracket, Rear Upper 2 |
8EK-21426-00-00 |
from US $27.58 |
||
|
07
|
07
8CR-21427-10-00 Bracket, Rear Lower 1 |
8CR-21427-10-00 |
from US $26.91 |
||
|
08
|
08
8CH-21486-10-00 Damper 2 |
8CH-21486-10-00 |
from US $151.98 |
||
|
09
|
09
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
09
|
09
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
10
|
10
901-05081-A7-00 Bolt, Flange |
901-05081-A7-00 |
from US $1.36 |
||
|
11
|
11
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
12
|
12
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
13
|
13
8DF-2145B-10-00 Plate, Engine Mount |
8DF-2145B-10-00 |
from US $10.22 |
||
