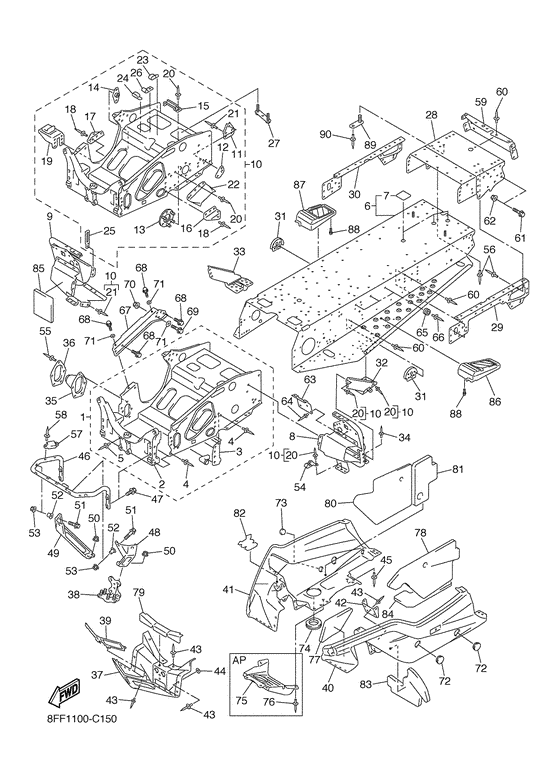

Frame Diagram Yamaha VT700/ VT70 Venture 700
- Model code
- 8FF2
- Engine Capacity
- 698
- Year
- 2004
- Sales region
- Finland (010)
- Colour
- Bluish Silver 4 (BS4; 0820)
- Power
- 125 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8EK-21940-18-00 Front Frame Comp |
8EK-21940-18-00 |
from US $2,061.33 |
||
|
02
|
02
8EK-2191A-00-00 Bulkhead |
8EK-2191A-00-00 |
from US $335.02 |
||
|
03
|
03
8EK-12440-10-00 Heat Exchanger Assy |
8EK-12440-10-00 |
US $554.72 |
||
|
04
|
04
90267-48016-00 Rivet, Blind (4.8X16.4 YellowUn |
90267-48016-00 |
from US $1.84 |
||
|
05
|
05
90267-48057-00 Rivet, BlindUn |
90267-48057-00 |
from US $1.70 |
||
|
06
|
06
8FF-21950-09-00 Rear Frame Comp |
8FF-21950-09-00 |
US $927.02 |
||
|
07
|
07
8CR-2198J-00-00 Cover 3 |
8CR-2198J-00-00 |
from US $2.83 |
||
|
08
|
08
8EK-21960-09-00 Footrest Comp. 1 |
8EK-21960-09-00 |
from US $183.58 |
||
|
09
|
09
8EK-21970-09-00 Footrest Comp. 2 |
8EK-21970-09-00 |
from US $204.51 |
||
|
10
|
10
8EK-W2195-01-00 Frame Connection Kit |
8EK-W2195-01-00 |
US $349.16 |
||
|
11
|
11
8CR-21943-01-00 Bracket, Main Track 1 |
8CR-21943-01-00 |
from US $3.26 |
||
|
12
|
12
8CR-21953-00-00 Bracket, Main Track 2 |
8CR-21953-00-00 |
from US $1.42 |
||
|
13
|
13
8EK-21920-01-00 Housing, Reinf Sub-Assy (L.h) |
8EK-21920-01-00 |
from US $10.48 |
||
|
14
|
14
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
15
|
15
8DN-21977-00-00 Clamp, Fuel Pipe |
8DN-21977-00-00 |
from US $3.97 |
||
|
16
|
16
8EK-21917-00-00 Panel, Sub Frame 6 |
8EK-21917-00-00 |
from US $14.88 |
||
|
17
|
17
8EK-21918-00-00 Panel, Sub-Frame 7 |
8EK-21918-00-00 |
from US $14.88 |
||
|
18
|
18
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
19
|
19
8EK-2194J-00-00 Stay, Muffler |
8EK-2194J-00-00 |
from US $62.72 |
||
|
20
|
20
90267-47186-00 Rivet, Blind (4.7X16.4 Black)Qty:125 |
90267-47186-00 |
from US $1.35 |
||
|
21
|
21
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)Un |
90267-47197-00 |
from US $1.98 |
||
|
22
|
22
8CR-2198G-01-00 Cover 2 |
8CR-2198G-01-00 |
from US $18.07 |
||
|
23
|
23
90461-05003-00 Clamp |
90461-05003-00 |
from US $7.51 |
||
| replacement | |||||
|
23
|
23
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
24
|
24
90461-06142-00 Clamp |
90461-06142-00 |
from US $7.78 |
||
|
25
|
25
90462-05059-00 Clamp |
90462-05059-00 |
from US $3.54 |
||
| replacements | |||||
|
25
|
25
904-62102-36-00 Clamp |
904-62102-36-00 |
from US $3.54 |
||
|
25
|
25
90462-05061-00 Clamp (7J0) |
90462-05061-00 |
from US $3.54 |
||
|
26
|
26
90461-10148-00 Clamp |
90461-10148-00 |
from US $8.96 |
||
|
27
|
27
8CR-2196F-00-00 Bracket 3 |
8CR-2196F-00-00 |
from US $4.82 |
||
|
28
|
28
8CW-21916-02-00 Panel, Sub Frame 5 |
8CW-21916-02-00 |
from US $163.03 |
||
|
29
|
29
8CW-21964-02-00 Patch 4 |
8CW-21964-02-00 |
US $46.62 |
||
|
30
|
30
8CW-21965-02-00 Patch 5 |
8CW-21965-02-00 |
US $49.43 |
||
|
31
|
31
8CW-21943-00-00 Bracket, Main Track 1 |
8CW-21943-00-00 |
from US $2.69 |
||
|
32
|
32
8DF-21941-00-00 Pipe, Pivot 1 |
8DF-21941-00-00 |
from US $38.58 |
||
|
33
|
33
8DF-21951-00-00 Pipe, Pivot 2 |
8DF-21951-00-00 |
from US $46.97 |
||
|
34
|
34
90269-07080-00 Rivet |
90269-07080-00 |
from US $5.81 |
||
|
35
|
35
8DN-2198F-00-00
Cover 1
|
8DN-2198F-00-00 |
— | ||
|
36
|
36
8CR-2195E-00-00 Plate, Steering Bracket 1 |
8CR-2195E-00-00 |
from US $8.78 |
||
|
37
|
37
8EK-21912-00-00 Panel, Sub Frame 1 |
8EK-21912-00-00 |
from US $100.55 |
||
|
38
|
38
8EK-23788-00-00 Plate, Back Up |
8EK-23788-00-00 |
US $48.51 |
||
|
39
|
39
8CR-77128-00-00
Stay 4
|
8CR-77128-00-00 |
— | ||
|
40
|
40
8EK-2196A-01-00
Frame Under 1
|
8EK-2196A-01-00 |
— | ||
|
41
|
41
8EK-2196E-01-00
Frame, Under 2
|
8EK-2196E-01-00 |
— | ||
|
42
|
42
8EK-21972-00-00 Bracket, Guard Fitting |
8EK-21972-00-00 |
US $13.27 |
||
|
43
|
43
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
44
|
44
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
45
|
45
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
46
|
46
8EK-77512-00-00 Bumper, Front 2 |
8EK-77512-00-00 |
from US $129.46 |
||
|
47
|
47
95807-08020-00 Bolt, Flange |
95807-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
47
|
47
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
48
|
48
8EK-21949-00-00 Bracket, Front |
8EK-21949-00-00 |
from US $40.30 |
||
|
49
|
49
8EK-21959-00-00 Bracket, Front Bumper |
8EK-21959-00-00 |
from US $53.88 |
||
|
50
|
50
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
50
|
50
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
51
|
51
95807-08035-00 Bolt, Flange |
95807-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
51
|
51
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.07 |
||
|
52
|
52
90387-08015-00 Collar |
90387-08015-00 |
from US $7.61 |
||
|
53
|
53
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
53
|
53
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
54
|
54
8EK-21999-00-00 Clamp, Wire Harness |
8EK-21999-00-00 |
from US $6.52 |
||
|
55
|
55
90267-47197-00 Rivet, Blind (4.7X19.5 Silver) |
90267-47197-00 |
from US $1.98 |
||
|
56
|
56
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
57
|
57
8DJ-14728-00-00 Protector, Muffler 2 |
8DJ-14728-00-00 |
from US $12.60 |
||
|
58
|
58
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
59
|
59
8CR-21923-02-00
Reineforcement, Frame Rear 1
|
8CR-21923-02-00 |
— | ||
|
60
|
60
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
61
|
61
95027-08016-00 Bolt, Flange |
95027-08016-00 |
from US $1.70 |
||
|
62
|
62
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
62
|
62
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
63
|
63
8CR-21973-00-00 Hook |
8CR-21973-00-00 |
US $10.19 |
||
|
64
|
64
90267-48169-00 Rivet, Blind (4.7X16.4 Black) |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
64
|
64
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
65
|
65
81K-2471F-00-00 Button |
81K-2471F-00-00 |
from US $1.56 |
||
|
66
|
66
90267-40069-00 Rivet, Blind (90267-40069-00 ) |
90267-40069-00 |
from US $2.09 |
||
| replacement | |||||
|
66
|
66
90267-40135-00 Rivet, Blind (90267-40069-00 ) |
90267-40135-00 |
from US $2.09 |
||
|
67
|
67
8EK-21921-00-00 Reineforcement, Frame Rear 1 |
8EK-21921-00-00 |
from US $91.19 |
||
|
68
|
68
90105-10617-00 Bolt, Flange |
90105-10617-00 |
from US $1.07 |
||
| replacement | |||||
|
68
|
68
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
69
|
69
95827-10065-00 Bolt, Flange |
95827-10065-00 |
from US $3.58 |
||
| replacement | |||||
|
69
|
69
95817-10065-00 Bolt, Flange |
95817-10065-00 |
from US $5.67 |
||
|
70
|
70
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
70
|
70
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
71
|
71
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
72
|
72
90338-44093-00 Plug |
90338-44093-00 |
from US $2.69 |
||
|
73
|
73
90338-30256-00 Plug |
90338-30256-00 |
from US $4.11 |
||
|
74
|
74
8DF-21998-10-00 Spacer |
8DF-21998-10-00 |
from US $28.80 |
||
|
75
|
75
8EN-2194H-00-00 Protector, MufflerAp |
8EN-2194H-00-00 |
from US $40.10 |
||
|
76
|
76
90267-49004-00 Rivet, BlindAp |
90267-49004-00 |
from US $1.24 |
||
|
77
|
77
8EK-77261-00-00 Lining, Shroud 1 |
8EK-77261-00-00 |
from US $16.29 |
||
|
78
|
78
8EK-77262-00-00 Lining, Shroud 2 |
8EK-77262-00-00 |
from US $54.85 |
||
|
79
|
79
8EK-77263-00-00 Lining, Shroud 3 |
8EK-77263-00-00 |
from US $8.78 |
||
|
80
|
80
8EK-77264-00-00 Lining, Shroud 4 |
8EK-77264-00-00 |
from US $38.29 |
||
|
81
|
81
8EK-77265-00-00 Lining, Shroud 5 |
8EK-77265-00-00 |
from US $15.70 |
||
|
82
|
82
8EK-77266-10-00 Lining, Shroud 6 |
8EK-77266-10-00 |
from US $4.36 |
||
|
83
|
83
8EK-77267-00-00 Lining, Shroud 7 |
8EK-77267-00-00 |
from US $27.91 |
||
|
84
|
84
8EK-77268-00-00 Lining, Shroud 8 |
8EK-77268-00-00 |
from US $10.63 |
||
|
85
|
85
8EK-77269-00-00 Lining, Shroud 9 |
8EK-77269-00-00 |
from US $8.50 |
||
|
86
|
86
8DM-27431-00-00 Footrest, Rear 1 |
8DM-27431-00-00 |
from US $19.55 |
||
| replacements | |||||
|
86
|
86
8DM-27431-02-00 Footrest, Rear 1 |
8DM-27431-02-00 |
from US $19.55 |
||
|
86
|
86
8DM-27431-03-00 |
8DM-27431-03-00 |
from US $19.55 |
||
|
87
|
87
8DM-27441-00-00 Footrest, Rear 2 |
8DM-27441-00-00 |
from US $19.55 |
||
| replacements | |||||
|
87
|
87
8DM-27441-02-00 Footrest, Rear 2 |
8DM-27441-02-00 |
from US $19.55 |
||
|
87
|
87
8DM-27441-03-00 |
8DM-27441-03-00 |
from US $19.55 |
||
|
88
|
88
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
88
|
88
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
89
|
89
8CR-2194N-00-00 Bracket, Fuel Tank 1 |
8CR-2194N-00-00 |
from US $2.41 |
||
|
90
|
90
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
