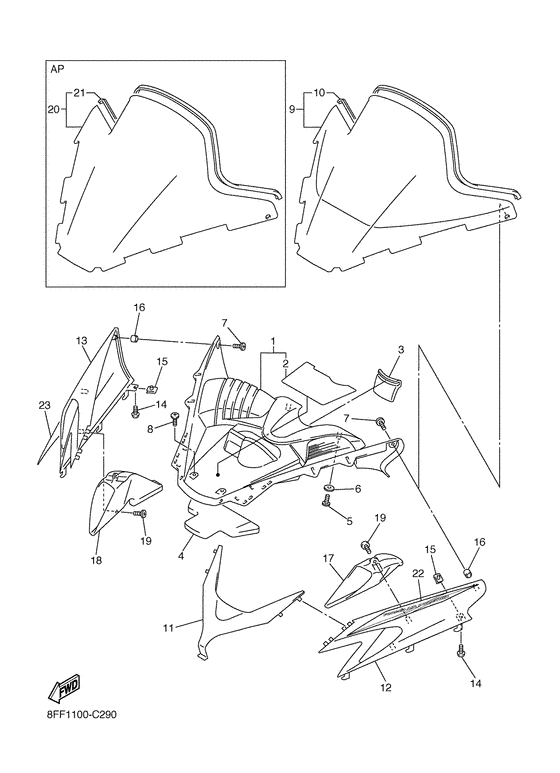

Windshield Diagram Yamaha VT700/ VT70 Venture 700
- Model code
- 8FF2
- Engine Capacity
- 698
- Year
- 2004
- Sales region
- Finland (010)
- Colour
- Bluish Silver 4 (BS4; 0820)
- Power
- 125 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8EK-W7725-10-00 Cover, Headlight |
8EK-W7725-10-00 |
from US $243.16 |
||
|
02
|
02
8EK-77198-10-00 Damper 1 |
8EK-77198-10-00 |
from US $50.51 |
||
|
03
|
03
8FE-78447-00-00 Trim, Seat |
8FE-78447-00-00 |
from US $18.36 |
||
|
04
|
04
8EK-77277-00-00 Damper, Noise 17 |
8EK-77277-00-00 |
from US $7.93 |
||
|
05
|
05
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
06
|
06
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
07
|
07
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.56 |
||
|
08
|
08
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
09
|
09
8FB-77210-00-00 Windshield Comp |
8FB-77210-00-00 |
US $386.01 |
||
|
10
|
10
8FB-77213-00-00 Trim, Upper |
8FB-77213-00-00 |
US $51.53 |
||
|
11
|
11
8EK-77231-20-00
Fairing
|
8EK-77231-20-00 |
— | ||
|
12
|
12
8EK-7723A-10-00 Fairing 2 |
8EK-7723A-10-00 |
from US $128.39 |
||
|
13
|
13
8EK-7723B-10-00 Fairing 3 |
8EK-7723B-10-00 |
from US $128.07 |
||
|
14
|
14
98907-06020-00 Screw, Bind |
98907-06020-00 |
from US $1.33 |
||
|
15
|
15
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
15
|
15
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
16
|
16
8EK-77238-00-00 Damper |
8EK-77238-00-00 |
from US $2.05 |
||
|
17
|
17
8EK-2838N-00-00 Duct 1 |
8EK-2838N-00-00 |
from US $27.31 |
||
|
18
|
18
8EK-2838R-00-00 Duct 2 |
8EK-2838R-00-00 |
from US $21.73 |
||
|
19
|
19
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
20
|
20
8EK-77210-00-00 Windshield CompAp |
8EK-77210-00-00 |
US $292.58 |
||
|
21
|
21
8EK-77213-00-00 Trim, UpperAp |
8EK-77213-00-00 |
US $50.57 |
||
|
22
|
22
8FF-77252-00-00 Graphic, Fairing 1 |
8FF-77252-00-00 |
US $22.14 |
||
|
23
|
23
8FF-77253-00-00 Graphic, Fairing 2 |
8FF-77253-00-00 |
from US $28.66 |
||
