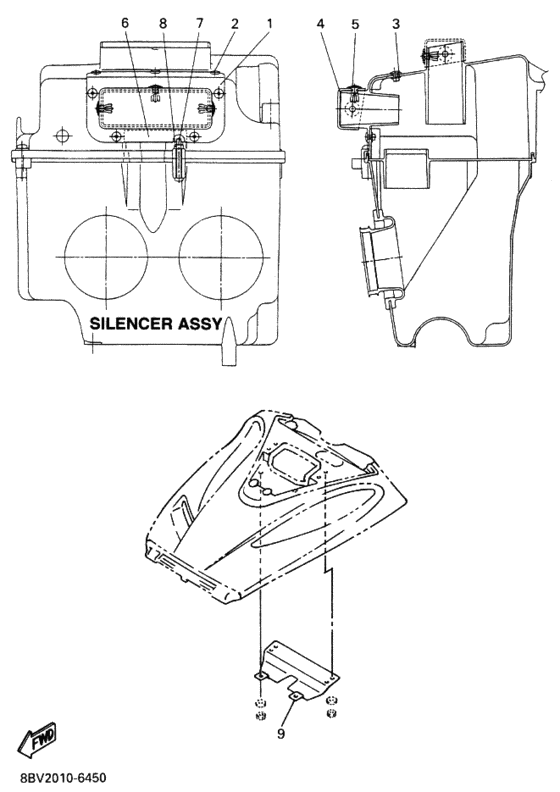

Alternate (ENGINE) Diagram Yamaha VX600 Vmax 600 XT
- Model code
- 8BV2
- Engine Capacity
- 593
- Year
- 1996
- Sales region
- Japan (010)
- Colour
- Dull Blue Metallic 2 (DBM2; 0472)
- Color Variant
- A
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CA-14437-00-00
Duct
ＤＵＣＴ; 参照 |
8CA-14437-00-00 |
— | ||
|
2
|
2
90267-40153-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; 参照 |
90267-40153-00 |
US $2.14 |
||
| replacement | |||||
|
2
|
2
902-67400-80-00
Rivet, Blind (5H0)
ＲＩＶＥＴ， ＢＬＩＮＤ; 参照 |
902-67400-80-00 |
— | ||
|
3
|
3
92907-04200-00 WasherＷＡＳＨＥＲ， ＰＬＡＴＥ; 参照 |
92907-04200-00 |
from US $1.56 |
||
|
4
|
4
8CA-14412-00-00
Cap, Cleaner Case 1
ＣＡＰ， ＣＡＳＥ １; 参照 |
8CA-14412-00-00 |
— | ||
|
5
|
5
902-69060-46-00
Rivet
ＲＩＶＥＴ; 参照 |
902-69060-46-00 |
— | ||
| replacement | |||||
|
5
|
5
902-69060-01-00 RivetＲＩＶＥＴ; 参照 |
902-69060-01-00 |
from US $1.36 |
||
|
6
|
6
8CA-14452-00-00
Seal
ＳＥＡＬ; 参照 |
8CA-14452-00-00 |
— | ||
|
7
|
7
98507-05040-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; 参照 |
98507-05040-00 |
from US $1.42 |
||
|
8
|
8
95307-05600-00 Nut(N28)ＮＵＴ; 参照 |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
8
|
8
95317-05600-00 NutＮＵＴ; 参照 |
95317-05600-00 |
from US $2.13 |
||
|
9
|
9
8AB-77551-00-00
Protector 1
ＰＲＯＴＥＣＴＯＲ; 参照 |
8AB-77551-00-00 |
— | ||
