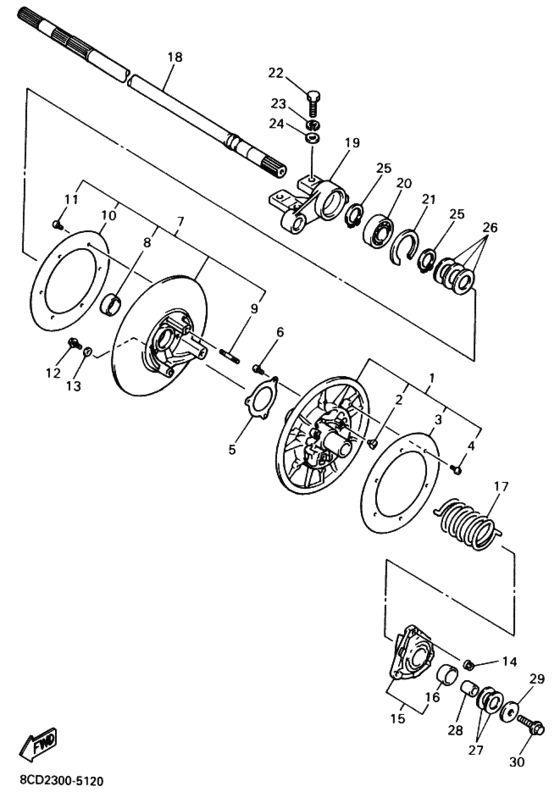

Secondary sheave Diagram Yamaha VX600 Vmax 600 E
- Model code
- 8CF2
- Engine Capacity
- 593
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- Yamaha Black (YB; 0033)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8BV-17660-10-00
Secondary Fixed Sheave Comp
．ＳＥＣＯＮＤＡＲＹ ＦＩＸＥＤ ＳＨＥＡＶＥ ＣＯＭＰ; |
8BV-17660-10-00 |
— | ||
|
2
|
2
8AV-17688-10-00 Shoe, Ramp・ＳＨＯＥ， ＲＡＭＰ; |
8AV-17688-10-00 |
from US $26.63 |
||
|
3
|
3
8BV-17665-00-00
Plate 1
・ＰＬＡＴＥ １; |
8BV-17665-00-00 |
— | ||
|
4
|
4
90150-05040-00 Screw, Round Head・ＳＣＲＥＷ， ＲＯＵＮＤ ＨＥＡＤ; |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
985-07050-08-00 Screw, Pan Head・ＳＣＲＥＷ， ＲＯＵＮＤ ＨＥＡＤ; |
985-07050-08-00 |
from US $1.07 |
||
|
5
|
5
8BV-17656-00-00 Stopper, HolderＳＴＯＰＰＥＲ， ＨＯＬＤＥＲ; |
8BV-17656-00-00 |
from US $12.61 |
||
|
6
|
6
90154-06062-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤＩＮＧ; |
90154-06062-00 |
from US $1.66 |
||
| replacement | |||||
|
6
|
6
98907-06016-00 Screw, BindＳＣＲＥＷ， ＢＩＮＤＩＮＧ; |
98907-06016-00 |
from US $1.66 |
||
|
7
|
7
8BV-17670-10-00 Secondary Sliding SheaveＳＥＣＯＮＤＡＲＹ ＳＬＩＤＩＮＧ ＳＨＥＡＶＥ; |
8BV-17670-10-00 |
from US $163.01 |
||
| replacement | |||||
|
7
|
7
8BU-17670-10-00 Secondary Sliding SheaveＳＥＣＯＮＤＡＲＹ ＳＬＩＤＩＮＧ ＳＨＥＡＶＥ; |
8BU-17670-10-00 |
from US $288.72 |
||
|
8
|
8
90384-38243-00 Bush, Bimetal Formed・ＢＵＳＨ， ＢＩＭＥＴＡＬ ＦＯＲＭＥＤ; |
90384-38243-00 |
from US $31.21 |
||
|
9
|
9
95617-08630-00 Bolt, Stud・ＢＯＬＴ， ＳＴＵＤ; |
95617-08630-00 |
from US $4.03 |
||
|
10
|
10
8BV-17665-00-00
Plate 1
・ＰＬＡＴＥ １; |
8BV-17665-00-00 |
— | ||
|
11
|
11
90150-05040-00 Screw, Round Head・ＳＣＲＥＷ， ＲＯＵＮＤ ＨＥＡＤ; |
90150-05040-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
985-07050-08-00 Screw, Pan Head・ＳＣＲＥＷ， ＲＯＵＮＤ ＨＥＡＤ; |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
90105-06734-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; ＵＮ |
90105-06734-00 |
from US $1.81 |
||
|
13
|
13
90201-061H1-00 Washer, Plate (T=0.5)ＷＡＳＨＥＲ， ＰＬＡＴＥ; ＵＮ |
90201-061H1-00 |
from US $2.69 |
||
|
13
|
13
90201-06431-00 Washer, Plate (371)ＷＡＳＨＥＲ， ＰＬＡＴＥ; ＵＮ |
90201-06431-00 |
from US $2.13 |
||
|
14
|
14
90179-08655-00 NutＮＵＴ; |
90179-08655-00 |
from US $2.41 |
||
|
15
|
15
8BV-17604-10-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＳＴＤ |
8BV-17604-10-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-11-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＳＴＤ |
8BV-17604-11-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-30-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＡＰ |
8BV-17604-30-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-31-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＡＰ |
8BV-17604-31-00 |
from US $142.30 |
||
|
15
|
15
8BV-17604-90-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＡＰ |
8BV-17604-90-00 |
from US $142.30 |
||
| replacement | |||||
|
15
|
15
8BV-17604-91-00 Seat Spring SetＳＥＡＴ ＳＰＲＩＮＧ ＳＥＴ; ＵＲ ＡＰ |
8BV-17604-91-00 |
from US $142.23 |
||
|
16
|
16
90384-38243-00 Bush, Bimetal Formed・ＢＵＳＨ， ＢＩＭＥＴＡＬ ＦＯＲＭＥＤ; |
90384-38243-00 |
from US $31.21 |
||
|
17
|
17
90508-536A9-00 Spring, TorsionＳＰＲＩＮＧ， ＴＯＲＳＩＯＮ; ＵＲ ＡＰ |
90508-536A9-00 |
from US $9.92 |
||
|
17
|
17
90508-556A2-00 Spring, TorsionＳＰＲＩＮＧ， ＴＯＲＳＩＯＮ; ＵＲ ＳＴＤ |
90508-556A2-00 |
from US $21.96 |
||
|
17
|
17
90508-556A7-00 Spring, TorsionＳＰＲＩＮＧ， ＴＯＲＳＩＯＮ; ＵＲ ＡＰ |
90508-556A7-00 |
from US $29.19 |
||
|
18
|
18
8CM-17681-00-00 Shaft, SecondaryＳＨＡＦＴ， ＳＥＣＯＮＤＡＲＹ; |
8CM-17681-00-00 |
US $349.92 |
||
|
19
|
19
8AB-47631-00-00
Housing, Bearing
ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; |
8AB-47631-00-00 |
— | ||
|
20
|
20
93306-20582-00 BearingＢＥＡＲＩＮＧ ; ６２０５２ＲＳＣ３ |
93306-20582-00 |
from US $27.74 |
||
|
21
|
21
99009-52500-00 CirclipＣＩＲＣＬＩＰ; |
99009-52500-00 |
from US $5.40 |
||
|
22
|
22
97027-08022-00 BoltＢＯＬＴ; |
97027-08022-00 |
US $1.70 |
||
| replacement | |||||
|
22
|
22
90106-08040-00 BoltＢＯＬＴ; |
90106-08040-00 |
from US $2.81 |
||
|
23
|
23
92907-08100-00 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92907-08100-00 |
from US $0.85 |
||
|
24
|
24
929-07086-00-00 Washer, PlateＷＡＳＨＥＲ; |
929-07086-00-00 |
from US $1.39 |
||
|
25
|
25
93410-25017-00 CirclipＣＩＲＣＬＩＰ; |
93410-25017-00 |
from US $2.70 |
||
|
26
|
26
90201-252F1-00 Washer, Plate (T0.5)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ０５; ＵＲ ＵＮ |
90201-252F1-00 |
from US $1.66 |
||
|
26
|
26
90201-25526-00 Washer, Plate (T2.0)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ２０; ＵＲ ＵＮ |
90201-25526-00 |
from US $2.64 |
||
|
26
|
26
90201-25527-00 Washer, Plate (T1.0)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ１０; ＵＲ ＵＮ |
90201-25527-00 |
from US $1.81 |
||
|
27
|
27
90201-222F0-00 Washer, Plate (T=0.5)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ０５; ＵＲ ＵＮ |
90201-222F0-00 |
from US $1.81 |
||
|
27
|
27
90201-225A4-00 Washer, Plate (T=1.0)．ＷＡＳＨＥＲ， ＰＬＡＴＥ ; Ｔ１０; ＵＲ ＵＮ |
90201-225A4-00 |
from US $1.39 |
||
|
28
|
28
90387-1405J-00
Collar
ＣＯＬＬＡＲ; |
90387-1405J-00 |
— | ||
|
29
|
29
90201-105H3-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-105H3-00 |
from US $4.11 |
||
|
30
|
30
90105-10741-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10741-00 |
US $2.69 |
||
| replacement | |||||
|
30
|
30
958-14100-40-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
958-14100-40-00 |
from US $2.91 |
||
