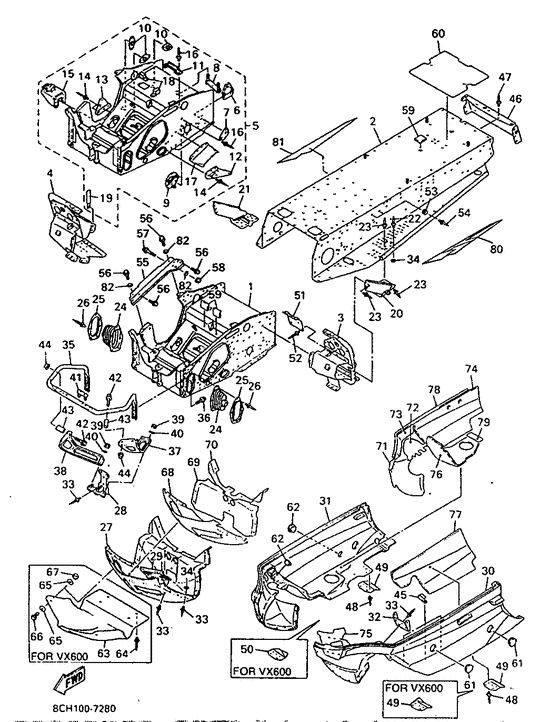

Frame Diagram Yamaha VX600 Mountain Max 600
- Model code
- 8CV1
- Engine Capacity
- 593
- Year
- 1997
- Sales region
- Canada (999)
- Colour
- Heat Red (HTR; 00EY)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8CR-21940-09-00 Front Frame Comp |
8CR-21940-09-00 |
US $3,227.09 |
||
| replacements | |||||
|
01
|
01
8CR-21940-05-00 Front Frame Comp |
8CR-21940-05-00 |
US $2,360.36 |
||
|
01
|
01
8CR-21940-07-00 Front Frame Comp |
8CR-21940-07-00 |
US $3,227.09 |
||
|
02
|
02
8CR-21950-09-00
Rear Frame Comp
|
8CR-21950-09-00 |
— | ||
| replacements | |||||
|
02
|
02
8CR-21950-06-00
Rear Frame Comp
|
8CR-21950-06-00 |
— | ||
|
02
|
02
8CR-21950-08-00
Rear Frame Comp
|
8CR-21950-08-00 |
— | ||
|
03
|
03
8CR-21960-09-00 Footrest Comp. 1 (L.h) |
8CR-21960-09-00 |
US $163.93 |
||
| replacement | |||||
|
03
|
03
8CR-21960-08-00 Footrest Comp. 1 |
8CR-21960-08-00 |
US $157.86 |
||
|
04
|
04
8CR-21970-09-00 Footrest Comp. 2 (R.h) |
8CR-21970-09-00 |
US $162.09 |
||
| replacement | |||||
|
04
|
04
8CR-21970-08-00 Footrest Comp. 2 |
8CR-21970-08-00 |
from US $97.76 |
||
|
05
|
05
8CR-W2195-00-00
Frame Connection Kit
For connect with ref.n.1,2,3,4 |
8CR-W2195-00-00 |
— | ||
|
06
|
06
8CR-21943-00-00 Bracket, Main Track 1 |
8CR-21943-00-00 |
from US $3.26 |
||
| replacement | |||||
|
06
|
06
8CR-21943-01-00 Bracket, Main Track 1 |
8CR-21943-01-00 |
from US $3.26 |
||
|
07
|
07
8CR-21953-00-00 Bracket, Main Track 2 |
8CR-21953-00-00 |
from US $1.42 |
||
|
08
|
08
8CR-2196F-00-00 Bracket 3 |
8CR-2196F-00-00 |
from US $4.82 |
||
|
09
|
09
8CR-21920-00-00 Housing, Reinf Sub-Assy (L.h) |
8CR-21920-00-00 |
from US $8.78 |
||
|
10
|
10
8CR-21939-00-00 Bracket, Chain Housing |
8CR-21939-00-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
11
|
11
8CR-21977-00-00 Clamp, Fuel Pipe |
8CR-21977-00-00 |
from US $3.26 |
||
|
12
|
12
8CR-21917-00-00 Panel, Sub Frame 6 |
8CR-21917-00-00 |
from US $17 |
||
|
13
|
13
8CR-21918-00-00 Panel, Sub-Frame 7 |
8CR-21918-00-00 |
from US $17 |
||
|
14
|
14
90267-48176-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48176-00 |
from US $2.08 |
||
| replacement | |||||
|
14
|
14
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $2.08 |
||
|
15
|
15
8CR-2194J-00-00 Stay, Muffler |
8CR-2194J-00-00 |
from US $54.99 |
||
|
16
|
16
90267-47186-00 Rivet, Blind (4.7X16.4 Black)Un |
90267-47186-00 |
from US $1.66 |
||
|
17
|
17
8CR-2198G-00-00 Cover 2 |
8CR-2198G-00-00 |
from US $22.53 |
||
|
18
|
18
90461-06142-00 Clamp |
90461-06142-00 |
from US $7.78 |
||
|
19
|
19
90462-05061-00 Clamp (7J0) |
90462-05061-00 |
from US $3.54 |
||
| replacement | |||||
|
19
|
19
904-62102-36-00 Clamp |
904-62102-36-00 |
from US $3.54 |
||
|
20
|
20
8CR-21941-00-00 Pipe, Pivot 1 |
8CR-21941-00-00 |
from US $38.58 |
||
| replacement | |||||
|
20
|
20
8DF-21941-00-00 Pipe, Pivot 1 |
8DF-21941-00-00 |
from US $38.58 |
||
|
21
|
21
8CR-21951-00-00 Pipe, Pivot 2 |
8CR-21951-00-00 |
from US $46.97 |
||
| replacement | |||||
|
21
|
21
8DF-21951-00-00 Pipe, Pivot 2 |
8DF-21951-00-00 |
from US $46.97 |
||
|
22
|
22
90267-48186-00
Rivet, Blind
|
90267-48186-00 |
— | ||
|
23
|
23
90267-48169-00 Rivet, Blind (4.7X16.4 Black)Ur |
90267-48169-00 |
from US $1.62 |
||
| replacement | |||||
|
23
|
23
90267-47186-00 Rivet, Blind (4.7X16.4 Black)Ur |
90267-47186-00 |
from US $1.66 |
||
|
24
|
24
8CR-2198F-00-00
Cover 1
|
8CR-2198F-00-00 |
— | ||
|
25
|
25
8CR-2195E-00-00 Plate, Steering Bracket 1 |
8CR-2195E-00-00 |
from US $8.78 |
||
|
26
|
26
90267-48165-00 Rivet, Blind (4.7X19.5 Silver) |
90267-48165-00 |
US $1.98 |
||
| replacement | |||||
|
26
|
26
90267-47197-00 Rivet, Blind (4.7X19.5 Silver) |
90267-47197-00 |
from US $1.98 |
||
|
27
|
27
8CR-21912-00-00 Panel, Sub Frame 1 |
8CR-21912-00-00 |
US $203.93 |
||
| replacement | |||||
|
27
|
27
8CR-21912-01-00 Panel, Sub Frame 1 |
8CR-21912-01-00 |
US $203.93 |
||
|
28
|
28
8CR-23788-00-00
Plate, Back Up
|
8CR-23788-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99031-19-00
Plate,back Up (8Cr2378800)
|
999-99031-19-00 |
— | ||
|
29
|
29
8CR-77128-00-00
Stay 4
|
8CR-77128-00-00 |
— | ||
|
30
|
30
8CR-2196A-00-00 Frame Under 1 |
8CR-2196A-00-00 |
from US $90.06 |
||
| replacement | |||||
|
30
|
30
8CR-2196A-03-00 Frame Under 1 |
8CR-2196A-03-00 |
from US $90.06 |
||
|
31
|
31
8CR-2196E-00-00 Frame, Under 2 |
8CR-2196E-00-00 |
US $234.77 |
||
| replacement | |||||
|
31
|
31
8CR-2196E-03-00 Frame, Under 2 |
8CR-2196E-03-00 |
from US $119.17 |
||
|
32
|
32
8CR-21972-00-00
Bracket, Guard Fitting
|
8CR-21972-00-00 |
— | ||
|
33
|
33
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
33
|
33
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.52 |
||
|
34
|
34
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.39 |
||
|
35
|
35
8CR-77512-00-00 Bumper, Front 2 |
8CR-77512-00-00 |
from US $68.94 |
||
|
36
|
36
95807-08020-00 Bolt, Flange |
95807-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
36
|
36
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
37
|
37
8CR-21949-00-00 Bracket, Front Bumper |
8CR-21949-00-00 |
from US $17 |
||
| replacement | |||||
|
37
|
37
8CR-21949-10-00 Bracket, Front |
8CR-21949-10-00 |
from US $17 |
||
|
38
|
38
8CR-21959-00-00
Bracket, Front Bumper
|
8CR-21959-00-00 |
— | ||
| replacement | |||||
|
38
|
38
8CR-21959-10-00
Bracket, Front Bumper
|
8CR-21959-10-00 |
— | ||
|
39
|
39
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
40
|
40
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
41
|
41
8CR-2196M-00-00 Bracket, 5 |
8CR-2196M-00-00 |
from US $3.29 |
||
|
42
|
42
95807-08040-00 Bolt, Flange |
95807-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
42
|
42
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
43
|
43
90387-0810F-00 Collar |
90387-0810F-00 |
from US $3.97 |
||
|
44
|
44
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
44
|
44
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
45
|
45
90465-08146-00 Clamp |
90465-08146-00 |
from US $2.41 |
||
| replacement | |||||
|
45
|
45
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
46
|
46
8CR-21923-00-00 Reineforcement, Frame Rear 1 |
8CR-21923-00-00 |
from US $27.23 |
||
| replacement | |||||
|
46
|
46
8CR-21923-02-00
Reineforcement, Frame Rear 1
|
8CR-21923-02-00 |
— | ||
|
47
|
47
90267-48095-00 Rivet, Blind (4.8X12.6 Silver) |
90267-48095-00 |
from US $1.98 |
||
|
48
|
48
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
48
|
48
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.52 |
||
|
49
|
49
8CH-21978-00-00 Protector, FrameUr for vx700 |
8CH-21978-00-00 |
from US $23.20 |
||
|
49
|
49
8CR-21978-00-00 Protector, FrameUr for vx600 |
8CR-21978-00-00 |
from US $28.12 |
||
|
50
|
50
8CR-2197B-00-00 Protector, FrameUr for vx600 |
8CR-2197B-00-00 |
from US $27.83 |
||
|
51
|
51
8CR-21973-00-00 Hook |
8CR-21973-00-00 |
US $10.19 |
||
|
52
|
52
90267-48169-00 Rivet, Blind (4.7X16.4 Black) |
90267-48169-00 |
from US $1.62 |
||
| replacement | |||||
|
52
|
52
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.66 |
||
|
53
|
53
81K-2471F-00-00 Button |
81K-2471F-00-00 |
from US $1.56 |
||
|
54
|
54
90267-40135-00 Rivet, Blind (90267-40069-00 ) |
90267-40135-00 |
from US $2.09 |
||
|
55
|
55
8CR-21921-00-00 Reineforcement, Frame Rear 1 |
8CR-21921-00-00 |
from US $46.01 |
||
| replacement | |||||
|
55
|
55
8CR-21921-01-00 Reineforcement, Frame Rear 1 |
8CR-21921-01-00 |
from US $46.01 |
||
|
56
|
56
90105-10617-00 Bolt, Flange |
90105-10617-00 |
from US $1.07 |
||
| replacement | |||||
|
56
|
56
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.18 |
||
|
57
|
57
95827-10060-00 Bolt, Flange |
95827-10060-00 |
from US $2.83 |
||
| replacement | |||||
|
57
|
57
95817-10060-00 Bolt, Flange |
95817-10060-00 |
from US $2.72 |
||
|
58
|
58
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.39 |
||
| replacement | |||||
|
58
|
58
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.66 |
||
|
59
|
59
83R-7717G-01-00 Cover 3 |
83R-7717G-01-00 |
from US $2.83 |
||
| replacement | |||||
|
59
|
59
8CR-2198J-00-00 Cover 3 |
8CR-2198J-00-00 |
from US $2.83 |
||
|
60
|
60
8CR-2475M-00-00 Seal |
8CR-2475M-00-00 |
US $46.98 |
||
|
61
|
61
90338-44093-00 Plug |
90338-44093-00 |
from US $2.69 |
||
|
62
|
62
90338-30256-00 Plug |
90338-30256-00 |
from US $4.11 |
||
|
63
|
63
8CV-2197E-00-00 Protector, Frame FrUr for vx600 |
8CV-2197E-00-00 |
from US $97.38 |
||
|
64
|
64
90267-48174-00 Rivet, BlindUr for vx600 |
90267-48174-00 |
from US $2.41 |
||
|
65
|
65
90201-06407-00 Washer, PlateUr for vx600 |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
65
|
65
90201-06747-00 Washer, PlateUr for vx600 |
90201-06747-00 |
from US $1.70 |
||
|
66
|
66
98907-06025-00 Screw, BindingUr for vx600 |
98907-06025-00 |
from US $1.56 |
||
| replacements | |||||
|
66
|
66
901-1006X-77-00
Bolt, Hexagon Socket Head
Ur for vx600 |
901-1006X-77-00 |
— | ||
|
66
|
66
1TK-E3573-00-00
Bolt 1
Ur for vx600 |
1TK-E3573-00-00 |
— | ||
|
67
|
67
95617-06100-00 Nut, UUr for vx600 |
95617-06100-00 |
from US $1.39 |
||
|
68
|
68
8CR-77261-00-00 Lining, Shroud 1 |
8CR-77261-00-00 |
from US $91.15 |
||
|
69
|
69
8CR-77262-00-00 Lining, Shroud 2 |
8CR-77262-00-00 |
from US $31.77 |
||
|
70
|
70
8CR-77263-00-00 Lining, Shroud 3 |
8CR-77263-00-00 |
US $21.94 |
||
|
71
|
71
8CR-77264-00-00 Lining, Shroud 4 |
8CR-77264-00-00 |
from US $33.62 |
||
|
72
|
72
8CR-77265-00-00 Lining, Shroud 5 |
8CR-77265-00-00 |
from US $7.78 |
||
|
73
|
73
8CR-77266-00-00 Lining, Shroud 6 |
8CR-77266-00-00 |
from US $5.29 |
||
|
74
|
74
8CR-77267-00-00 Lining, Shroud 7 |
8CR-77267-00-00 |
from US $22.67 |
||
| replacement | |||||
|
74
|
74
8CR-77267-01-00 Lining, Shroud 7 |
8CR-77267-01-00 |
from US $22.67 |
||
|
75
|
75
8CR-77268-00-00 Lining, Shroud 8 |
8CR-77268-00-00 |
from US $25.42 |
||
|
76
|
76
8CR-77269-00-00 Lining, Shroud 9 |
8CR-77269-00-00 |
from US $42.66 |
||
|
77
|
77
8CR-77271-00-00 Damper, Noise 11 |
8CR-77271-00-00 |
from US $22.39 |
||
|
78
|
78
8CR-7717J-00-00 Tape, 5 |
8CR-7717J-00-00 |
from US $3.59 |
||
|
79
|
79
8CR-77165-00-00 Trim 1 |
8CR-77165-00-00 |
from US $1.56 |
||
|
80
|
80
8CV-77351-01-00 Emblem 1 |
8CV-77351-01-00 |
US $17.44 |
||
|
81
|
81
8CV-77352-01-00
Emblem 2
|
8CV-77352-01-00 |
— | ||
|
82
|
82
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
