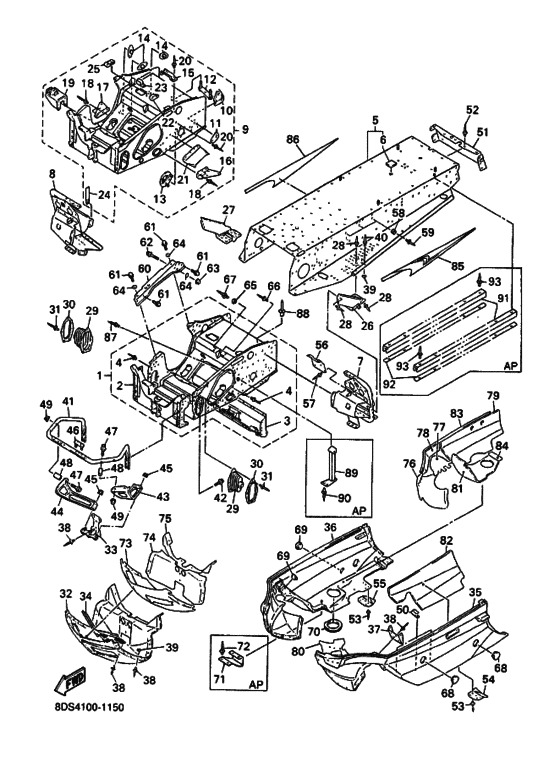

Frame Diagram Yamaha VX700 Vmax 700
- Model code
- 8DS4
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- Europe (020)
- Colour
- Silver Metallic 1 (SM1; 0660)
- Color Variant
- A
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8DG-21940-07-00 Front Frame Comp |
8DG-21940-07-00 |
US $2,412.70 |
||
|
2
|
2
8CR-2191A-02-00 Bulkhead |
8CR-2191A-02-00 |
from US $338.49 |
||
|
3
|
3
8DG-12440-00-00 Heat Exchanger Assy |
8DG-12440-00-00 |
US $515.47 |
||
| replacement | |||||
|
3
|
3
8DG-12440-01-00 Heat Exchanger Assy |
8DG-12440-01-00 |
US $515.47 |
||
|
4
|
4
90267-48176-00 Rivet, Blind (4.8X16.4 YellowUR UN |
90267-48176-00 |
from US $1.84 |
||
| replacement | |||||
|
4
|
4
90267-48016-00 Rivet, Blind (4.8X16.4 YellowUR UN |
90267-48016-00 |
from US $1.84 |
||
|
4
|
4
90267-48177-00 Rivet, Blind (4.8X14 Yellow)UR UN |
90267-48177-00 |
from US $1.98 |
||
|
4
|
4
90267-48015-00 Rivet, BlindUR UN |
90267-48015-00 |
from US $1.98 |
||
|
5
|
5
8CJ-21950-09-00 Rear Frame Comp |
8CJ-21950-09-00 |
US $1,470.51 |
||
|
6
|
6
8CR-2198J-00-00 Cover 3 |
8CR-2198J-00-00 |
from US $2.83 |
||
|
7
|
7
8CR-21960-08-00 Footrest Comp. 1 |
8CR-21960-08-00 |
US $157.86 |
||
|
8
|
8
8CR-21970-08-00 Footrest Comp. 2 |
8CR-21970-08-00 |
from US $97.76 |
||
|
9
|
9
8CR-W2195-03-00 Frame Connection Kit |
8CR-W2195-03-00 |
US $317.84 |
||
|
10
|
10
8CR-21943-01-00 Bracket, Main Track 1 |
8CR-21943-01-00 |
from US $3.26 |
||
|
11
|
11
8CR-21953-00-00 Bracket, Main Track 2 |
8CR-21953-00-00 |
from US $1.42 |
||
|
12
|
12
8CR-2196F-00-00 Bracket 3 |
8CR-2196F-00-00 |
from US $4.82 |
||
|
13
|
13
8CR-21920-00-00 Housing, Reinf Sub-Assy (L.h) |
8CR-21920-00-00 |
from US $8.78 |
||
|
14
|
14
8CR-21939-00-00 Bracket, Chain Housing |
8CR-21939-00-00 |
from US $4.39 |
||
| replacement | |||||
|
14
|
14
8CR-21939-01-00 Bracket, Chain Housing |
8CR-21939-01-00 |
from US $4.39 |
||
|
15
|
15
8CR-21977-00-00 Clamp, Fuel Pipe |
8CR-21977-00-00 |
from US $3.26 |
||
|
16
|
16
8CR-21917-00-00 Panel, Sub Frame 6 |
8CR-21917-00-00 |
from US $17 |
||
|
17
|
17
8CR-21918-00-00 Panel, Sub-Frame 7 |
8CR-21918-00-00 |
from US $17 |
||
|
18
|
18
90267-48176-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48176-00 |
from US $1.84 |
||
| replacement | |||||
|
18
|
18
90267-48016-00 Rivet, Blind (4.8X16.4 Yellow |
90267-48016-00 |
from US $1.84 |
||
|
19
|
19
8CR-2194J-00-00 Stay, Muffler |
8CR-2194J-00-00 |
from US $54.99 |
||
|
20
|
20
90267-47186-00 Rivet, Blind (4.7X16.4 Black)UR UN |
90267-47186-00 |
from US $1.35 |
||
|
20
|
20
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)UR UN |
90267-47197-00 |
from US $1.98 |
||
|
21
|
21
8CR-2198G-00-00 Cover 2 |
8CR-2198G-00-00 |
from US $22.53 |
||
|
22
|
22
90461-05003-00 Clamp |
90461-05003-00 |
from US $7.51 |
||
| replacement | |||||
|
22
|
22
90461-08113-00 Clamp |
90461-08113-00 |
from US $7.51 |
||
|
23
|
23
90461-06142-00 Clamp |
90461-06142-00 |
from US $7.78 |
||
|
24
|
24
90462-05059-00 Clamp |
90462-05059-00 |
from US $3.54 |
||
| replacements | |||||
|
24
|
24
904-62102-36-00 Clamp |
904-62102-36-00 |
from US $3.54 |
||
|
24
|
24
90462-05061-00 Clamp (7J0) |
90462-05061-00 |
from US $3.54 |
||
|
25
|
25
90461-10148-00 Clamp |
90461-10148-00 |
from US $8.96 |
||
|
26
|
26
8DF-21941-00-00 Pipe, Pivot 1 |
8DF-21941-00-00 |
from US $38.58 |
||
|
27
|
27
8DF-21951-00-00 Pipe, Pivot 2 |
8DF-21951-00-00 |
from US $46.97 |
||
|
28
|
28
90269-07080-00 Rivet |
90269-07080-00 |
from US $5.81 |
||
|
29
|
29
8CR-2198F-00-00
Cover 1
|
8CR-2198F-00-00 |
— | ||
|
30
|
30
8CR-2195E-00-00 Plate, Steering Bracket 1 |
8CR-2195E-00-00 |
from US $8.78 |
||
|
31
|
31
90267-48165-00 Rivet, Blind (4.7X19.5 Silver) |
90267-48165-00 |
from US $1.60 |
||
| replacement | |||||
|
31
|
31
90267-47197-00 Rivet, Blind (4.7X19.5 Silver) |
90267-47197-00 |
from US $1.98 |
||
|
32
|
32
8CR-21912-01-00 Panel, Sub Frame 1 |
8CR-21912-01-00 |
US $203.93 |
||
|
33
|
33
8CR-23788-11-00 Plate, Back UpUP |
8CR-23788-11-00 |
US $47.12 |
||
|
34
|
34
8CR-77128-00-00
Stay 4
|
8CR-77128-00-00 |
— | ||
|
35
|
35
8CR-2196A-02-00 Frame Under 1 |
8CR-2196A-02-00 |
from US $90.06 |
||
| replacement | |||||
|
35
|
35
8CR-2196A-03-00 Frame Under 1 |
8CR-2196A-03-00 |
from US $90.06 |
||
|
36
|
36
8CR-2196E-02-00 Frame, Under 2 |
8CR-2196E-02-00 |
US $232.25 |
||
| replacement | |||||
|
36
|
36
8CR-2196E-03-00 Frame, Under 2 |
8CR-2196E-03-00 |
from US $119.17 |
||
|
37
|
37
8CR-21972-00-00
Bracket, Guard Fitting
|
8CR-21972-00-00 |
— | ||
|
38
|
38
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
39
|
39
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
40
|
40
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
41
|
41
8CR-77512-00-00 Bumper, Front 2 |
8CR-77512-00-00 |
from US $68.94 |
||
|
42
|
42
95807-08020-00 Bolt, Flange |
95807-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
42
|
42
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
43
|
43
8CR-21949-10-00 Bracket, Front |
8CR-21949-10-00 |
from US $17 |
||
|
44
|
44
8CR-21959-10-00 Bracket, Front Bumper |
8CR-21959-10-00 |
from US $15.41 |
||
|
45
|
45
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
45
|
45
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
46
|
46
8CR-2196M-00-00 Bracket, 5 |
8CR-2196M-00-00 |
from US $3.29 |
||
|
47
|
47
95807-08040-00 Bolt, Flange |
95807-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
48
|
48
90387-0810F-00 Collar |
90387-0810F-00 |
from US $3.97 |
||
|
49
|
49
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
49
|
49
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
50
|
50
90465-08146-00 Clamp |
90465-08146-00 |
from US $2.41 |
||
| replacement | |||||
|
50
|
50
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
51
|
51
8CR-21923-02-00
Reineforcement, Frame Rear 1
|
8CR-21923-02-00 |
— | ||
|
52
|
52
90267-47195-00 Rivet, Blind(4.7X16.4 Yellow) |
90267-47195-00 |
from US $1.98 |
||
|
53
|
53
90267-48141-00 Rivet, Blind (4.8X18.6 Black) |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
53
|
53
90267-48018-00 Rivet, Blind (4.8X18.6 Black) |
90267-48018-00 |
from US $1.28 |
||
|
54
|
54
8CR-21978-00-00 Protector, Frame |
8CR-21978-00-00 |
from US $28.12 |
||
|
55
|
55
8CR-2197B-00-00 Protector, Frame |
8CR-2197B-00-00 |
from US $27.83 |
||
|
56
|
56
8CR-21973-00-00 Hook |
8CR-21973-00-00 |
US $10.19 |
||
|
57
|
57
90267-48169-00 Rivet, Blind (4.7X16.4 Black) |
90267-48169-00 |
from US $1.35 |
||
| replacement | |||||
|
57
|
57
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
58
|
58
81K-2471F-00-00 Button |
81K-2471F-00-00 |
from US $1.56 |
||
|
59
|
59
90267-40069-00 Rivet, Blind (90267-40069-00 ) |
90267-40069-00 |
from US $2.09 |
||
| replacement | |||||
|
59
|
59
90267-40135-00 Rivet, Blind (90267-40069-00 ) |
90267-40135-00 |
from US $2.09 |
||
|
60
|
60
8CR-21921-01-00 Reineforcement, Frame Rear 1 |
8CR-21921-01-00 |
from US $46.01 |
||
|
61
|
61
90105-10617-00 Bolt, Flange |
90105-10617-00 |
from US $1.07 |
||
| replacement | |||||
|
61
|
61
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
62
|
62
95827-10065-00 Bolt, Flange |
95827-10065-00 |
from US $3.58 |
||
| replacement | |||||
|
62
|
62
95817-10065-00 Bolt, Flange |
95817-10065-00 |
from US $5.67 |
||
|
63
|
63
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
63
|
63
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
64
|
64
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
65
|
65
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
66
|
66
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
67
|
67
90267-47187-00 Rivet, Blind (4.7X16.4 Black) |
90267-47187-00 |
from US $1.28 |
||
|
68
|
68
90338-44093-00 Plug |
90338-44093-00 |
from US $2.69 |
||
|
69
|
69
90338-30256-00 Plug |
90338-30256-00 |
from US $4.11 |
||
|
70
|
70
8DF-21998-00-00 Spacer |
8DF-21998-00-00 |
from US $31.41 |
||
| replacement | |||||
|
70
|
70
8DF-21998-10-00 Spacer |
8DF-21998-10-00 |
from US $28.80 |
||
|
71
|
71
8CS-2197C-00-00 Protector, Frame 3AP |
8CS-2197C-00-00 |
from US $14.78 |
||
|
72
|
72
90267-48141-00 Rivet, Blind (4.8X18.6 Black)AP |
90267-48141-00 |
from US $1.28 |
||
| replacement | |||||
|
72
|
72
90267-48018-00 Rivet, Blind (4.8X18.6 Black)AP |
90267-48018-00 |
from US $1.28 |
||
|
73
|
73
8CR-77261-00-00 Lining, Shroud 1 |
8CR-77261-00-00 |
from US $91.15 |
||
|
74
|
74
8CR-77262-00-00 Lining, Shroud 2 |
8CR-77262-00-00 |
from US $31.77 |
||
|
75
|
75
8CR-77263-00-00 Lining, Shroud 3 |
8CR-77263-00-00 |
US $21.94 |
||
|
76
|
76
8CR-77264-00-00 Lining, Shroud 4 |
8CR-77264-00-00 |
from US $33.62 |
||
|
77
|
77
8CR-77265-00-00 Lining, Shroud 5 |
8CR-77265-00-00 |
from US $7.78 |
||
|
78
|
78
8CR-77266-00-00 Lining, Shroud 6 |
8CR-77266-00-00 |
from US $5.29 |
||
|
79
|
79
8CR-77267-01-00 Lining, Shroud 7 |
8CR-77267-01-00 |
from US $22.67 |
||
|
80
|
80
8CR-77268-00-00 Lining, Shroud 8 |
8CR-77268-00-00 |
from US $25.42 |
||
|
81
|
81
8CR-77269-00-00 Lining, Shroud 9 |
8CR-77269-00-00 |
from US $42.66 |
||
|
82
|
82
8CR-77271-00-00 Damper, Noise 1111 |
8CR-77271-00-00 |
from US $22.39 |
||
|
83
|
83
8CR-7717J-00-00 Tape, 5 |
8CR-7717J-00-00 |
from US $3.59 |
||
|
84
|
84
8CR-77165-00-00 Trim 1 |
8CR-77165-00-00 |
from US $1.56 |
||
|
85
|
85
8DS-7711G-00-00 Graphic 7 |
8DS-7711G-00-00 |
US $69.25 |
||
|
86
|
86
8DS-7711H-00-00 Graphic 8 |
8DS-7711H-00-00 |
US $65.25 |
||
|
87
|
87
90267-48177-00 Rivet, Blind (4.8X14 Yellow) |
90267-48177-00 |
from US $1.98 |
||
|
88
|
88
90267-47186-00 Rivet, Blind (4.7X16.4 Black) |
90267-47186-00 |
from US $1.35 |
||
|
89
|
89
8EA-2197E-00-00 Protector, Frame FrAP |
8EA-2197E-00-00 |
from US $90 |
||
|
90
|
90
90267-48176-00 Rivet, Blind (4.8X16.4 YellowAP |
90267-48176-00 |
from US $1.84 |
||
| replacement | |||||
|
90
|
90
90267-48016-00 Rivet, Blind (4.8X16.4 YellowAP |
90267-48016-00 |
from US $1.84 |
||
|
91
|
91
8DF-21978-00-00 Protector, FrameAP |
8DF-21978-00-00 |
US $149.16 |
||
| replacement | |||||
|
91
|
91
SMA-8CV92-90-00
element
AP |
SMA-8CV92-90-00 |
— | ||
|
92
|
92
8DF-21972-00-00 Bracket, Guard FittingAP |
8DF-21972-00-00 |
from US $55.93 |
||
|
93
|
93
90267-47197-00 Rivet, Blind (4.7X19.5 Silver)AP |
90267-47197-00 |
from US $1.98 |
||
