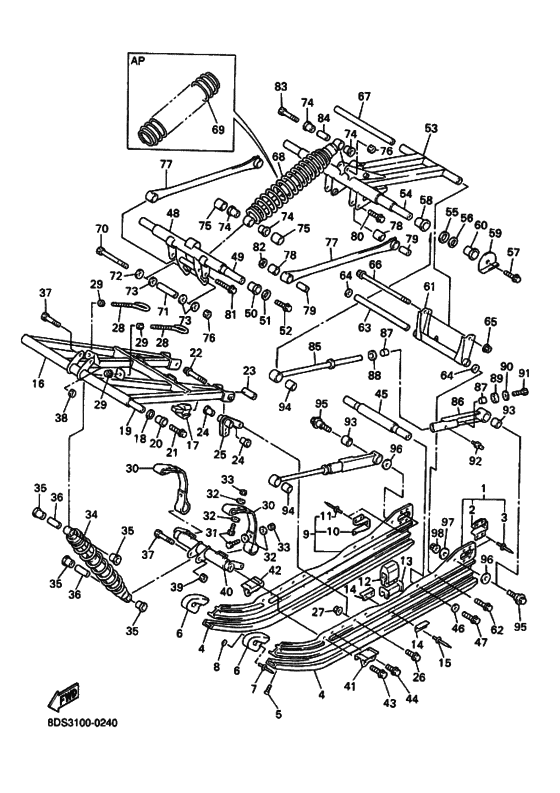

Track suspension 2 Diagram Yamaha VX700 Vmax 700
- Model code
- 8DS4
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- Europe (020)
- Colour
- Silver Metallic 1 (SM1; 0660)
- Color Variant
- A
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8EA-47411-00-00 Frame, Sliding 1 |
8EA-47411-00-00 |
from US $287.78 |
||
|
2
|
2
8V0-4741B-00-00 Bracket |
8V0-4741B-00-00 |
from US $14.06 |
||
|
3
|
3
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
4
|
4
8CM-47421-40-00 Runner, Sliding |
8CM-47421-40-00 |
from US $37.39 |
||
| replacements | |||||
|
4
|
4
SMA-8CW92-70-BK Runner, Sliding |
SMA-8CW92-70-BK |
US $35.42 |
||
|
4
|
4
SMA-8CM92-70-BK Sld Slides 121 P20 Bk |
SMA-8CM92-70-BK |
US $28.86 |
||
|
5
|
5
90151-06010-00 Screw, Countersunk |
90151-06010-00 |
from US $1.70 |
||
| replacement | |||||
|
5
|
5
901-51060-05-00 Screw, Countersunk |
901-51060-05-00 |
from US $1.70 |
||
|
6
|
6
8CM-47422-10-00 Runner, Sliding 2 |
8CM-47422-10-00 |
from US $35.14 |
||
| replacement | |||||
|
6
|
6
8ED-47422-00-00 Runner, Sliding 2 |
8ED-47422-00-00 |
from US $35.14 |
||
|
7
|
7
902-67481-94-00 Rivet, Blind (4.8X28 Silver) |
902-67481-94-00 |
from US $1.42 |
||
|
8
|
8
90201-047R8-00 Washer, Plate |
90201-047R8-00 |
from US $1.35 |
||
|
9
|
9
8EA-47412-00-00 Frame, Sliding 2 |
8EA-47412-00-00 |
US $448.13 |
||
|
10
|
10
8V0-4741B-00-00 Bracket |
8V0-4741B-00-00 |
from US $14.06 |
||
|
11
|
11
8V0-47468-00-00 Rivet |
8V0-47468-00-00 |
from US $1.42 |
||
|
12
|
12
8CM-47457-00-00 Damper 2 |
8CM-47457-00-00 |
from US $8.36 |
||
|
13
|
13
8CM-47341-00-00 Spacer |
8CM-47341-00-00 |
from US $6.23 |
||
|
14
|
14
8AX-47458-00-00 Plate, Damper |
8AX-47458-00-00 |
from US $5.53 |
||
|
15
|
15
902-67481-99-00 Rivet, Blind (4.8X28.3) |
902-67481-99-00 |
from US $1.98 |
||
|
16
|
16
8CV-47331-01-00 Arm, Pivot 1 |
8CV-47331-01-00 |
from US $256.98 |
||
|
17
|
17
8DF-47456-10-00
Damper 1
|
8DF-47456-10-00 |
— | ||
|
18
|
18
90201-210U0-00 Washer, Plate |
90201-210U0-00 |
from US $1.28 |
||
|
19
|
19
8CR-47465-00-00 Shaft 1 |
8CR-47465-00-00 |
from US $40.62 |
||
|
20
|
20
90381-19111-00 Bush, Solid |
90381-19111-00 |
from US $4.82 |
||
|
21
|
21
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
21
|
21
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
22
|
22
90105-10769-00 Bolt, Flange |
90105-10769-00 |
from US $2.69 |
||
| replacements | |||||
|
22
|
22
90105-10029-00 Bolt, Flange |
90105-10029-00 |
from US $2.69 |
||
|
22
|
22
95817-10065-00 Bolt, Flange |
95817-10065-00 |
from US $5.67 |
||
|
23
|
23
90387-1009T-00 Collar |
90387-1009T-00 |
from US $8.50 |
||
|
24
|
24
90381-15112-00 Bush, Solid |
90381-15112-00 |
from US $3.83 |
||
|
25
|
25
8CR-47415-00-00 Bracket 1 |
8CR-47415-00-00 |
US $15.12 |
||
|
26
|
26
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
27
|
27
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
28
|
28
8CR-47448-00-00 Hook 3 |
8CR-47448-00-00 |
from US $9.07 |
||
|
29
|
29
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
29
|
29
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
30
|
30
8CR-47495-00-00 Stopper 1 |
8CR-47495-00-00 |
from US $32.73 |
||
|
31
|
31
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
32
|
32
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
33
|
33
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
34
|
34
8DS-47481-00-00 Shock Absorber 2 |
8DS-47481-00-00 |
US $427.63 |
||
| replacement | |||||
|
34
|
34
8CR-47481-00-00 Shock Absorber 2 |
8CR-47481-00-00 |
US $427.63 |
||
|
35
|
35
90387-145G7-00 Collar |
90387-145G7-00 |
from US $1.70 |
||
|
36
|
36
90387-105G5-00 Collar (8U7) |
90387-105G5-00 |
from US $1.42 |
||
|
37
|
37
90101-10738-00 Bolt |
90101-10738-00 |
from US $2.69 |
||
| replacement | |||||
|
37
|
37
90101-10559-00 Bolt |
90101-10559-00 |
from US $3.64 |
||
|
38
|
38
90185-10110-00 Nut, Self-Locking |
90185-10110-00 |
from US $3.83 |
||
| replacement | |||||
|
38
|
38
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
39
|
39
956-07101-00-00 Nut, U |
956-07101-00-00 |
from US $4.11 |
||
| replacement | |||||
|
39
|
39
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
40
|
40
8EA-47418-00-00 Bracket 4 |
8EA-47418-00-00 |
from US $124.21 |
||
|
41
|
41
8DF-47463-01-00 Bracket 5 |
8DF-47463-01-00 |
from US $16.01 |
||
|
42
|
42
8DF-47464-01-00 Bracket 6 |
8DF-47464-01-00 |
from US $18.99 |
||
|
43
|
43
90105-10433-00 Bolt, Washer Based |
90105-10433-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
44
|
44
90105-08450-00 Bolt, Flange |
90105-08450-00 |
from US $0.85 |
||
| replacement | |||||
|
44
|
44
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
45
|
45
8CR-47486-00-00 Shaft 4 |
8CR-47486-00-00 |
from US $95.88 |
||
|
46
|
46
902-01100-L3-00
Washer, Plate
|
902-01100-L3-00 |
— | ||
| replacement | |||||
|
46
|
46
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.70 |
||
|
47
|
47
90105-10433-00 Bolt, Washer Based |
90105-10433-00 |
from US $1.07 |
||
| replacement | |||||
|
47
|
47
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
48
|
48
8CR-47416-10-00 Bracket 2 |
8CR-47416-10-00 |
US $158.13 |
||
|
49
|
49
8CR-47488-00-00 Shaft 6 |
8CR-47488-00-00 |
from US $43.32 |
||
|
50
|
50
90381-22099-00 Bush, Solid |
90381-22099-00 |
from US $4.82 |
||
|
51
|
51
90201-207J5-00 Washer, Plate |
90201-207J5-00 |
from US $2.27 |
||
|
52
|
52
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
52
|
52
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
53
|
53
8CR-47332-10-00 Arm, Pivot 2 |
8CR-47332-10-00 |
from US $125.17 |
||
|
54
|
54
8CR-47475-00-00 Shaft 2 |
8CR-47475-00-00 |
from US $132.66 |
||
|
55
|
55
90201-251G8-00 Washer, Plate |
90201-251G8-00 |
from US $3.54 |
||
|
56
|
56
90201-250T6-00 Washer, Plate |
90201-250T6-00 |
from US $2.98 |
||
|
57
|
57
90105-103A1-00 Bolt |
90105-103A1-00 |
from US $2.41 |
||
| replacement | |||||
|
57
|
57
901-09107-71-00 Bolt |
901-09107-71-00 |
from US $2.41 |
||
|
58
|
58
903-81281-08-00 Bush, Solid |
903-81281-08-00 |
from US $6.23 |
||
|
59
|
59
8CR-47426-10-00 Bracket, Rear 1 |
8CR-47426-10-00 |
from US $7 |
||
| replacement | |||||
|
59
|
59
8CR-47426-11-00 Bracket, Rear 1 |
8CR-47426-11-00 |
from US $7 |
||
|
60
|
60
8CR-47425-00-00 Bracket, Rear 2 |
8CR-47425-00-00 |
from US $13.86 |
||
|
61
|
61
8CR-47417-01-00 Bracket 3 |
8CR-47417-01-00 |
from US $34.67 |
||
|
62
|
62
90105-10433-00 Bolt, Washer Based |
90105-10433-00 |
from US $1.07 |
||
| replacement | |||||
|
62
|
62
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
63
|
63
82M-47485-02-00 Shaft 3 |
82M-47485-02-00 |
US $58.01 |
||
|
64
|
64
902-01101-36-00 Washer, Plate |
902-01101-36-00 |
from US $2.13 |
||
|
65
|
65
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
65
|
65
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
66
|
66
95827-08220-00 Bolt, Flange |
95827-08220-00 |
from US $8.22 |
||
|
67
|
67
90387-083G6-00 Collar |
90387-083G6-00 |
from US $7.79 |
||
|
68
|
68
8DS-47480-00-00
Shock Absorber
|
8DS-47480-00-00 |
— | ||
|
69
|
69
8CR-47489-00-00 Spring 1 (K=29.4-44.1N/mm)K=29.4-44.1N/MM; AP |
8CR-47489-00-00 |
from US $314.48 |
||
|
69
|
69
8CR-47489-10-00 Spring 1 (K=34-52N/mm)K=34-52N/MM; AP |
8CR-47489-10-00 |
from US $255.29 |
||
|
70
|
70
8AC-4631K-00-00 Bolt, Adjusting |
8AC-4631K-00-00 |
from US $19.84 |
||
|
71
|
71
90387-1009S-00 Collar |
90387-1009S-00 |
from US $9.35 |
||
|
72
|
72
90201-103U4-00 Washer, Plate |
90201-103U4-00 |
from US $4.25 |
||
| replacement | |||||
|
72
|
72
90201-10039-00 Washer, Plate |
90201-10039-00 |
from US $4.82 |
||
|
73
|
73
90201-100U1-00 Washer, Plate |
90201-100U1-00 |
from US $1.98 |
||
|
74
|
74
903-81141-01-00 Bush, Solid |
903-81141-01-00 |
from US $3.54 |
||
|
75
|
75
90387-1404R-00 Collar |
90387-1404R-00 |
from US $3.97 |
||
|
76
|
76
956-07101-00-00 Nut, U |
956-07101-00-00 |
from US $4.11 |
||
| replacement | |||||
|
76
|
76
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
77
|
77
8CR-47494-01-00 Rod, Relay |
8CR-47494-01-00 |
from US $37.99 |
||
|
78
|
78
903-81141-09-00 Bush, Solid |
903-81141-09-00 |
from US $7.51 |
||
|
79
|
79
90387-100X3-00 Collar |
90387-100X3-00 |
from US $1.70 |
||
|
80
|
80
90105-10739-00 Bolt, Flange |
90105-10739-00 |
from US $1.56 |
||
| replacements | |||||
|
80
|
80
90105-10115-00 Bolt, Flange |
90105-10115-00 |
from US $6.52 |
||
|
80
|
80
90105-10289-00 Bolt, Washer Based |
90105-10289-00 |
US $6.52 |
||
|
80
|
80
958-17100-35-00 Bolt, Flange |
958-17100-35-00 |
from US $1.56 |
||
|
81
|
81
90105-10436-00 Bolt, Flange |
90105-10436-00 |
from US $2.69 |
||
| replacement | |||||
|
81
|
81
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
82
|
82
90201-100U1-00 Washer, Plate |
90201-100U1-00 |
from US $1.98 |
||
|
83
|
83
90101-10738-00 Bolt |
90101-10738-00 |
from US $2.69 |
||
| replacement | |||||
|
83
|
83
90101-10559-00 Bolt |
90101-10559-00 |
from US $3.64 |
||
|
84
|
84
90387-105G5-00 Collar (8U7) |
90387-105G5-00 |
from US $1.42 |
||
|
85
|
85
8CR-4745A-01-00 Rod, Control 1 |
8CR-4745A-01-00 |
from US $58.03 |
||
|
86
|
86
8CR-4745B-00-00 Rod, Control 2 |
8CR-4745B-00-00 |
from US $52.50 |
||
|
87
|
87
90384-16251-00 Bush, Bimetal Formed |
90384-16251-00 |
from US $3.54 |
||
|
88
|
88
90202-16232-00 Washer, Plate |
90202-16232-00 |
from US $4.11 |
||
|
89
|
89
90202-16229-00 Washer, Plate |
90202-16229-00 |
from US $1.42 |
||
|
90
|
90
90201-106F2-00 Washer, Plate (17K) |
90201-106F2-00 |
from US $1.70 |
||
|
91
|
91
97027-10025-00 Bolt |
97027-10025-00 |
from US $2.41 |
||
| replacement | |||||
|
91
|
91
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
92
|
92
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
92
|
92
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.70 |
||
|
93
|
93
90380-22232-00 Bush, Solid |
90380-22232-00 |
from US $9.49 |
||
|
94
|
94
90380-28235-00 Bush, Solid |
90380-28235-00 |
from US $5.10 |
||
|
95
|
95
8DF-47367-00-00 Screw, Rear Pivot |
8DF-47367-00-00 |
from US $13.88 |
||
| replacement | |||||
|
95
|
95
8DF-47367-09-00 Screw, Rear Pivot |
8DF-47367-09-00 |
from US $10.43 |
||
|
96
|
96
90201-100S2-00 Washer, Plate |
90201-100S2-00 |
from US $7.37 |
||
|
97
|
97
90201-101U2-00 Washer, Plate |
90201-101U2-00 |
from US $6.94 |
||
|
98
|
98
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
