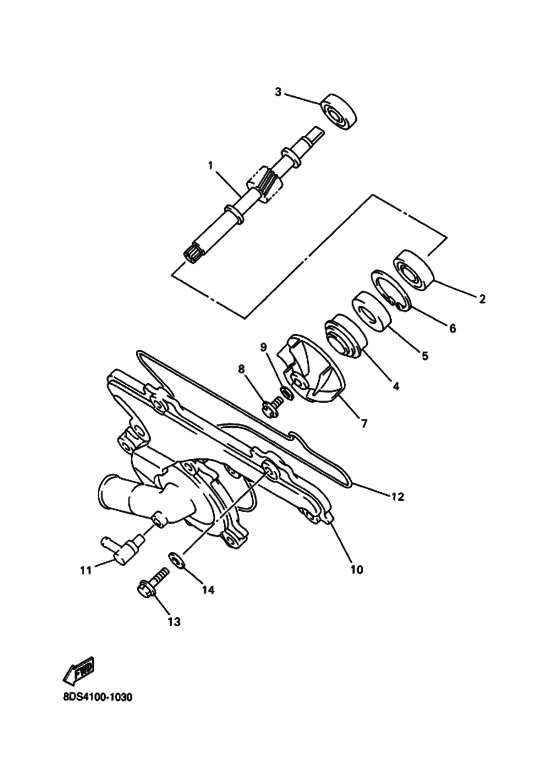

Water pump Diagram Yamaha VX700 Vmax 700
- Model code
- 8DS4
- Engine Capacity
- 698
- Year
- 2001
- Sales region
- Europe (020)
- Colour
- Silver Metallic 1 (SM1; 0660)
- Color Variant
- A
- Model
- Vmax 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8CH-12459-01-00
Gear, Impeller Shaft
|
8CH-12459-01-00 |
— | ||
|
2
|
2
933-06001-06-00
Bearing
|
933-06001-06-00 |
— | ||
| replacement | |||||
|
2
|
2
93306-00105-00 Bearing |
93306-00105-00 |
from US $10.48 |
||
|
3
|
3
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.12 |
||
|
4
|
4
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
4
|
4
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $22.22 |
||
|
5
|
5
93102-12461-00 Oil Seal |
93102-12461-00 |
from US $7.65 |
||
|
6
|
6
99009-28500-00 Circlip |
99009-28500-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
93420-28055-00 Circlip |
93420-28055-00 |
from US $1.70 |
||
|
7
|
7
8CH-12451-02-00 Impeller, Water Pump |
8CH-12451-02-00 |
US $113.56 |
||
|
8
|
8
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
9
|
9
90210-06001-00
Washer, Seal
|
90210-06001-00 |
— | ||
|
10
|
10
8CH-12422-10-00 Cover, Housing |
8CH-12422-10-00 |
from US $71.01 |
||
|
11
|
11
8CH-12469-00-00 Joint 1 |
8CH-12469-00-00 |
from US $32.73 |
||
|
12
|
12
8CH-12439-00-00 O-Ring |
8CH-12439-00-00 |
from US $37.58 |
||
|
13
|
13
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
14
|
14
90430-06166-00 Gasket |
90430-06166-00 |
from US $1.28 |
||
