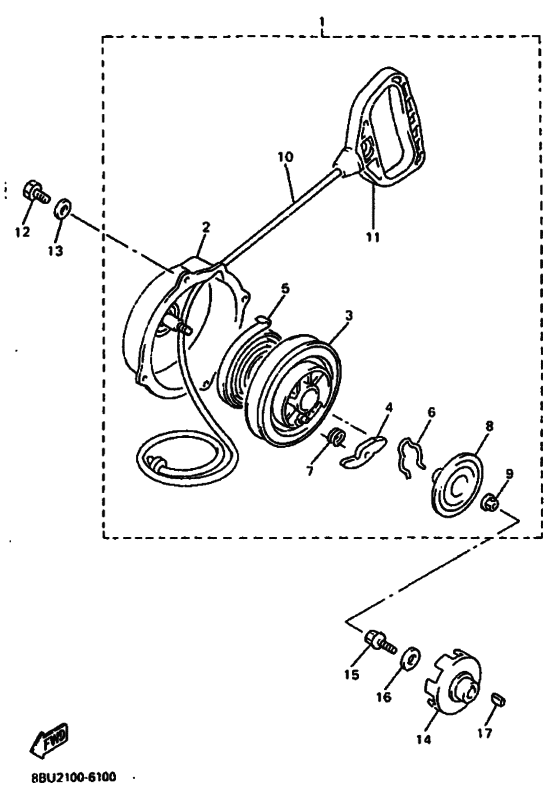

Starter Diagram Yamaha VX800 Vmax-4
- Model code
- 8BU3
- Engine Capacity
- 800
- Year
- 1997
- Sales region
- Europe (020)
- Colour
- Heat Red (HTR; 00EY)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89A-15710-01-00 Starter Asy |
89A-15710-01-00 |
from US $147.73 |
||
| replacement | |||||
|
1
|
1
89A-15710-02-00
Starter Assy
|
89A-15710-02-00 |
— | ||
|
2
|
2
89A-15711-01-00
Case, Starter
|
89A-15711-01-00 |
— | ||
| replacement | |||||
|
2
|
2
89A-15711-02-00
Case, Starter
|
89A-15711-02-00 |
— | ||
|
3
|
3
24W-15714-00-00 Drum, Sheave |
24W-15714-00-00 |
from US $42.97 |
||
|
4
|
4
21V-15741-00-00 Pawl, Drive |
21V-15741-00-00 |
from US $12.04 |
||
|
5
|
5
21V-15713-00-00 Spring, Starter |
21V-15713-00-00 |
from US $21.68 |
||
|
6
|
6
21V-15715-00-00 Spring, Friction |
21V-15715-00-00 |
from US $10.77 |
||
|
7
|
7
21V-15767-00-00 Spring |
21V-15767-00-00 |
from US $3.12 |
||
|
8
|
8
21V-15716-00-00 Plate, Drive |
21V-15716-00-00 |
from US $16.43 |
||
|
9
|
9
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
10
|
10
89A-15751-00-00 Wire, Starter |
89A-15751-00-00 |
from US $17.28 |
||
|
11
|
11
8F3-15755-00-00 Handle, Starter |
8F3-15755-00-00 |
from US $14.17 |
||
|
12
|
12
970-27060-14-00
Bolt, Hexagon
|
970-27060-14-00 |
— | ||
| replacement | |||||
|
12
|
12
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
89A-15723-01-00
Pulley, Starter
|
89A-15723-01-00 |
— | ||
|
15
|
15
97017-10020-00 Bolt |
97017-10020-00 |
from US $3.12 |
||
|
16
|
16
90201-105H3-00 Washer, Plate |
90201-105H3-00 |
from US $4.11 |
||
|
17
|
17
90280-05014-00 Key, Woodruff |
90280-05014-00 |
from US $2.32 |
||
