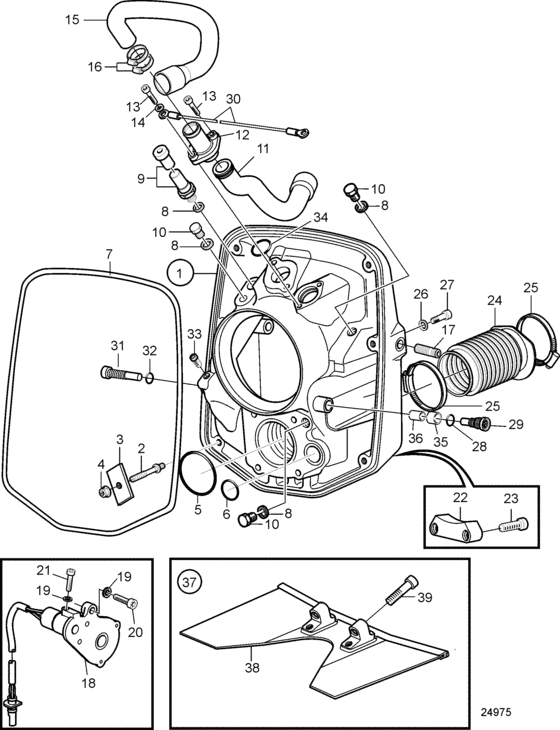

Transom shield: port Diagram Volvo Penta DPH-A
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3809881
Shield kit
|
3809881 |
— | ||
|
2
|
2
873316
STUD
|
873316 |
— | ||
|
3
|
3
852866
Washer
|
852866 |
— | ||
|
4
|
4
963108
Nut
|
963108 |
— | ||
| replacement | |||||
|
4
|
4
971084
Lock Nut
|
971084 |
— | ||
|
5
|
5
925259
O-Ring
|
925259 |
— | ||
|
6
|
6
925068
O-Ring
|
925068 |
— | ||
|
7
|
7
3862353
Seal
|
3862353 |
— | ||
|
8
|
8
3852537
O-Ring
|
3852537 |
— | ||
|
9
|
9
3856800
Hose
|
3856800 |
— | ||
|
10
|
10
984053
Plug
|
984053 |
— | ||
|
11
|
11
3588767
Kit
|
3588767 |
— | ||
|
12
|
12
3863303
Pipe
|
3863303 |
— | ||
|
13
|
13
946541
Hex. Socket Screw
|
946541 |
— | ||
|
14
|
14
941670
Washer
|
941670 |
— | ||
|
15
|
15
3808170
Hose
(3863345) |
3808170 |
— | ||
|
16
|
16
961670
HOSE CLAMP
|
961670 |
— | ||
|
17
|
17
3862810
Spindle
|
3862810 |
— | ||
|
18
|
18
3809335
Service kit
|
3809335 |
— | ||
|
19
|
19
940275
Washer
|
940275 |
— | ||
|
20
|
20
963675
Hex. Socket Screw
|
963675 |
— | ||
|
21
|
21
3587308
Set Screw
|
3587308 |
— | ||
|
22
|
22
3588770
Anode Kit
|
3588770 |
— | ||
|
22
|
22
3588745
Anode Kit
|
3588745 |
— | ||
|
22
|
22
3588768
Anode Kit
|
3588768 |
— | ||
|
23
|
23
984257
Six Point Socket Scr
|
984257 |
— | ||
|
24
|
24
3588753 Exhaust Bellows |
3588753 |
US $195.84 |
||
|
25
|
25
853012
HOSE CLAMP
|
853012 |
— | ||
|
26
|
26
941670
Washer
|
941670 |
— | ||
|
27
|
27
984258
Six Point Socket Scr
|
984258 |
— | ||
|
28
|
28
975664
O-Ring
|
975664 |
— | ||
|
29
|
29
3862683
Pivot Pin
|
3862683 |
— | ||
|
30
|
30
3863269
Ground Cable
|
3863269 |
— | ||
|
31
|
31
3862809
Pivot Pin
|
3862809 |
— | ||
|
32
|
32
976107
O-Ring
|
976107 |
— | ||
|
33
|
33
984390
Set Screw
|
984390 |
— | ||
|
34
|
34
925092 O-Ring |
925092 |
US $11.38 |
||
|
35
|
35
3863092
Bushing
|
3863092 |
— | ||
|
36
|
36
3863093
Bushing
|
3863093 |
— | ||
|
37
|
37
21119437
Plate
Dead rise angle 15-17 degrees and X measurement 348 mm |
21119437 |
— | ||
|
37
|
37
21119438
Plate
Dead rise angle 18-20 degrees and X measurement 348 mm |
21119438 |
— | ||
|
37
|
37
21119439
Plate
Dead rise angle 21-23 degrees and X measurement 348 mm |
21119439 |
— | ||
|
37
|
37
21119440
Plate
Dead rise angle 16,5 degrees and X measurement 364 mm |
21119440 |
— | ||
|
38
|
38
21119437
Plate
|
21119437 |
— | ||
|
39
|
39
984258
Six Point Socket Scr
|
984258 |
— | ||
