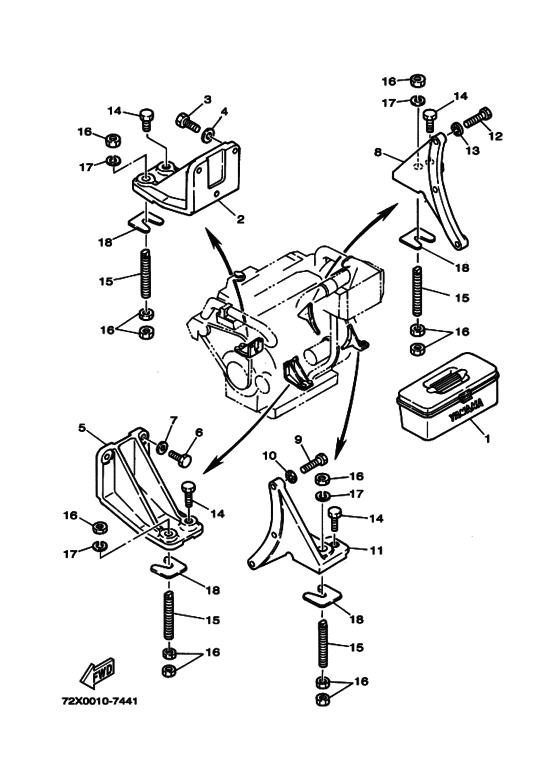

ﾏｳﾝﾃｲﾝｸﾞ. ﾂｰﾙ (ﾘｼﾞﾂﾄﾞﾏｳﾝﾄ仕様) Diagram Yamaha D380KUH
- Model code
- 72X-
- Year
- 1987
- Sales region
- Japan (400)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71X-28100-01-00 Tool Kitツールキツト; |
71X-28100-01-00 |
US $219.44 |
||
|
2
|
2
72X-11011-00-00 Bracket, Engine 1 |
72X-11011-00-00 |
US $237.64 |
||
|
3
|
3
90101-10320-00 Bolt |
90101-10320-00 |
US $14.03 |
||
|
4
|
4
90201-10774-00 Washer, Plate (3L6)ワツシヤ，プレート; |
90201-10774-00 |
from US $1.35 |
||
|
5
|
5
72X-11012-00-00 Bracket, Engine 2 |
72X-11012-00-00 |
US $326.06 |
||
|
6
|
6
90101-10320-00 Bolt |
90101-10320-00 |
US $14.03 |
||
|
7
|
7
90201-10774-00 Washer, Plate (3L6)ワツシヤ，プレート; |
90201-10774-00 |
from US $1.35 |
||
|
8
|
8
72X-11013-10-00 Bracket, Engine 3 |
72X-11013-10-00 |
US $557.04 |
||
|
9
|
9
90101-10331-00 Boltボルト; |
90101-10331-00 |
US $9.35 |
||
|
10
|
10
92902-10700-00 Washer, Waveワツシヤ，ウエイブ; |
92902-10700-00 |
US $1.98 |
||
|
11
|
11
72X-11014-10-00 Bracket, Engine 4 |
72X-11014-10-00 |
US $557.04 |
||
|
12
|
12
90101-10331-00 Boltボルト; |
90101-10331-00 |
US $9.35 |
||
|
13
|
13
92902-10700-00 Washer, Waveワツシヤ，ウエイブ; |
92902-10700-00 |
US $1.98 |
||
|
14
|
14
90101-14372-00 Bolt (L=60, P=1.5) |
90101-14372-00 |
US $19.13 |
||
|
15
|
15
90116-16240-00 Bolt, Stud |
90116-16240-00 |
US $23.24 |
||
|
16
|
16
90170-16212-00 Nut |
90170-16212-00 |
US $10.34 |
||
|
17
|
17
92901-16100-00 Washerワツシヤ，スプリング; |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
17
|
17
92907-16100-00 Washer(Jn5)ワツシヤ，スプリング; |
92907-16100-00 |
from US $3.40 |
||
|
18
|
18
705-76162-00-00 Shim2 (T=0.3)シム ２ ; Ｔ＝０．３; ＵＲ |
705-76162-00-00 |
US $16.29 |
||
|
18
|
18
705-76163-00-00 Shim3 (T=0.5)シム ３ ; Ｔ＝０．５; ＵＲ |
705-76163-00-00 |
US $17.14 |
||
|
18
|
18
705-76161-00-00 Shim1 (T=0.1)シム １ ; Ｔ＝０．１; ＵＲ |
705-76161-00-00 |
US $9.92 |
||
