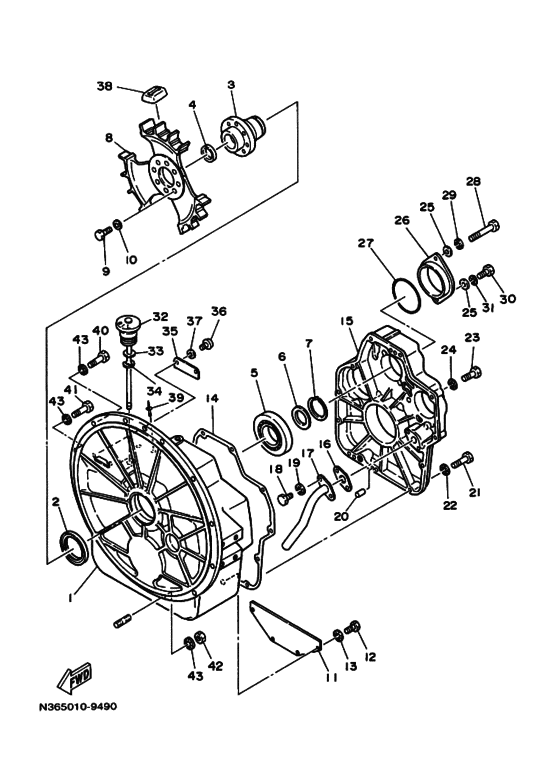

Hiusing Diagram Yamaha MD380T
- Model code
- N365
- Year
- 1999
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72X-17911-00-00 Case, Transmission 1ケース，トランスミツシヨン １; |
72X-17911-00-00 |
US $2,428.80 |
||
|
2
|
2
93102-55196-00 Oil Seal, Sd-Typeオイルシール; |
93102-55196-00 |
from US $14.88 |
||
|
3
|
3
71X-17614-00-00 Boss, Spiderボス，スパイダ; |
71X-17614-00-00 |
US $912.12 |
||
|
4
|
4
90331-35050-00 Plug |
90331-35050-00 |
US $3.40 |
||
|
5
|
5
93332-00061-00 Bearing |
93332-00061-00 |
US $70.88 |
||
|
6
|
6
90201-485G4-00 Washer, Plateワツシヤ，プレート; |
90201-485G4-00 |
US $8.08 |
||
|
7
|
7
93410-48020-00 Circlip, S-Typeサークリツプ; |
93410-48020-00 |
US $7.65 |
||
|
8
|
8
71X-17627-00-00 Spiderスパイダ; |
71X-17627-00-00 |
US $792 |
||
|
9
|
9
970-17080-30-00 Boltボルト; |
970-17080-30-00 |
from US $1.70 |
||
|
10
|
10
90201-08649-00 Washer, Plateワツシヤ，プレート; |
90201-08649-00 |
from US $1.28 |
||
|
10
|
10
90201-086P8-00 Washer, Plate(3Xp)ワツシヤ，プレート; |
90201-086P8-00 |
from US $1.70 |
||
|
11
|
11
70E-77111-00-00 Shroudシユラウド; |
70E-77111-00-00 |
US $10.63 |
||
|
12
|
12
97327-06010-00 Bolt |
97327-06010-00 |
US $1.56 |
||
|
13
|
13
92907-06700-00 Washer(6Ta) |
92907-06700-00 |
from US $2.13 |
||
|
14
|
14
N27-17929-00-00 Gasket 1 |
N27-17929-00-00 |
US $35.37 |
||
|
15
|
15
72X-17821-00-00 Cover, Housingカバー，ハウジング; |
72X-17821-00-00 |
US $1,029.30 |
||
|
16
|
16
N27-17938-00-00 Gasket,1ガスケツト，１; |
N27-17938-00-00 |
US $6.94 |
||
|
17
|
17
70E-13938-02-00 Pipeパイプ; |
70E-13938-02-00 |
US $110.39 |
||
|
18
|
18
97327-08020-00 Bolt |
97327-08020-00 |
US $2.13 |
||
|
19
|
19
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
20
|
20
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.66 |
||
|
21
|
21
97327-08035-00 Boltボルト; |
97327-08035-00 |
US $2.13 |
||
|
22
|
22
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
23
|
23
97327-08055-00 Bolt |
97327-08055-00 |
US $4.68 |
||
|
24
|
24
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
25
|
25
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
26
|
26
71R-18251-00-00 Cover, Governorカバー，ガバナ; |
71R-18251-00-00 |
US $64.24 |
||
|
27
|
27
93210-79380-00 O-RingＯーリング; |
93210-79380-00 |
from US $3.94 |
||
|
28
|
28
97327-08060-00 Bolt |
97327-08060-00 |
US $2.41 |
||
|
29
|
29
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
30
|
30
97327-08022-00 Bolt |
97327-08022-00 |
US $1.70 |
||
|
31
|
31
92907-08700-00 Washer |
92907-08700-00 |
from US $0.52 |
||
|
32
|
32
706-24610-A2-00 Cap Assyキヤツプアセンブリ; |
706-24610-A2-00 |
US $41.86 |
||
|
33
|
33
90201-04023-00 Washer, Plateワツシヤ，プレート; |
90201-04023-00 |
from US $2.41 |
||
|
34
|
34
99001-03600-00 Circlip(2Nl)サークリツプ; |
99001-03600-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
99080-03600-00 Circlipサークリツプ; |
99080-03600-00 |
from US $1.56 |
||
|
35
|
35
729-15113-00-00 Plateプレート; |
729-15113-00-00 |
US $11.33 |
||
|
36
|
36
98507-04008-00 Screw, Pan Head |
98507-04008-00 |
from US $1.07 |
||
|
37
|
37
92907-04100-00 Washer, Springワツシヤ，スプリング; |
92907-04100-00 |
from US $1.21 |
||
|
38
|
38
70R-45596-00-00 Block, Rubberブロツク，ラバー; |
70R-45596-00-00 |
US $13.18 |
||
|
39
|
39
90269-02016-00 Rivet |
90269-02016-00 |
US $2.69 |
||
|
40
|
40
90101-10330-00 Bolt(L=30, P=1.5)ボルト，ヘキサゴン ; Ｌ＝３０， Ｐ＝１．５ |
90101-10330-00 |
US $14.03 |
||
|
41
|
41
90101-10319-00 Bolt(L=35, P=1.5)ボルト，ヘキサゴン ; Ｌ＝３５， Ｐ＝１．５ |
90101-10319-00 |
US $10.34 |
||
|
42
|
42
90170-10202-00 Nut |
90170-10202-00 |
US $5.38 |
||
|
43
|
43
92907-10600-00 Washer, Plateワツシヤ，プレート; |
92907-10600-00 |
from US $1.07 |
||
