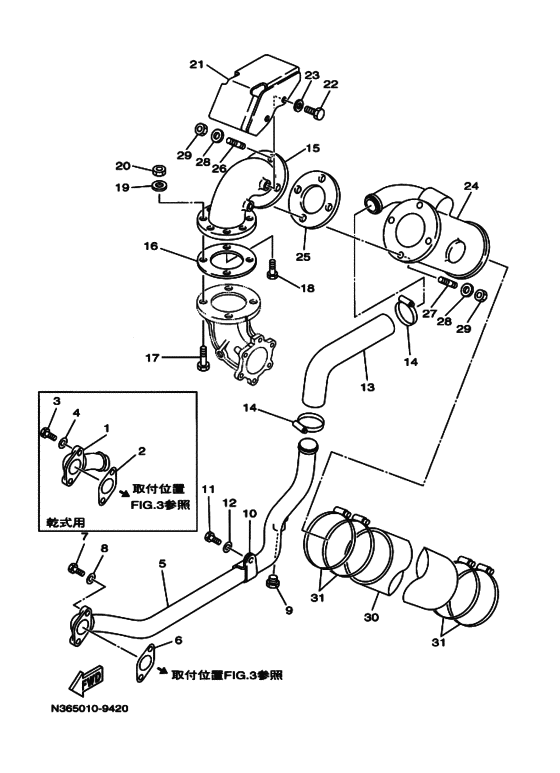

ｴｷｿﾞｰｽﾄｼｽﾃﾑ 1 (艤装) Diagram Yamaha MD380T
- Model code
- N365
- Year
- 1999
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72X-12503-00-00 Hose Joint Comp., 3ホースジヨイントコンプリート ３; |
72X-12503-00-00 |
US $309.48 |
||
|
2
|
2
N36-12565-00-00 Gasket, Water Pipe |
N36-12565-00-00 |
US $4.82 |
||
|
3
|
3
97027-08025-00 Boltボルト; |
97027-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
3
|
3
97017-08025-00 Boltボルト; |
97017-08025-00 |
from US $1.21 |
||
|
4
|
4
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
5
|
5
72X-12504-01-00 Hose Joint Comp.,4ホースジヨイントコンプリート ４; |
72X-12504-01-00 |
US $638.88 |
||
|
6
|
6
N36-12565-00-00 Gasket, Water Pipe |
N36-12565-00-00 |
US $4.82 |
||
|
7
|
7
97027-08025-00 Boltボルト; |
97027-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
7
|
7
97017-08025-00 Boltボルト; |
97017-08025-00 |
from US $1.21 |
||
|
8
|
8
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
9
|
9
727-12561-00-00 Plug,drain Cockプラグ，ドレンコツク; |
727-12561-00-00 |
US $20.97 |
||
|
10
|
10
90461-14108-00 Clamp |
90461-14108-00 |
from US $12.04 |
||
|
11
|
11
970-27080-20-00
Bolt
ボルト; |
970-27080-20-00 |
— | ||
| replacement | |||||
|
11
|
11
97017-08020-00 Boltボルト; |
97017-08020-00 |
from US $1.66 |
||
|
12
|
12
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
13
|
13
72X-12579-00-00 Hose 4ホース ４; |
72X-12579-00-00 |
US $28.48 |
||
|
14
|
14
90450-32008-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-32008-00 |
US $15.87 |
||
| replacement | |||||
|
14
|
14
90450-50001-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-50001-00 |
from US $15.87 |
||
|
15
|
15
72X-14645-00-00 Joint, Exhaust 4ジヨイント，エキゾースト ４; |
72X-14645-00-00 |
US $410.56 |
||
|
16
|
16
72X-14653-00-00 Gasket, Exhaust 4ガスケツト，エキゾースト ４; |
72X-14653-00-00 |
US $15.02 |
||
|
17
|
17
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
18
|
18
97070-10025-00 Bolt |
97070-10025-00 |
US $8.22 |
||
|
19
|
19
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
20
|
20
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
|
21
|
21
72X-14628-00-00 Protector, Exhaust Pipeプロテクタ，エキゾーストパイプ; |
72X-14628-00-00 |
US $244.54 |
||
|
22
|
22
97070-08016-00 Bolt |
97070-08016-00 |
US $1.28 |
||
|
23
|
23
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
24
|
24
72X-41141-01-00 Elbow, Water Mixingエルボ，ウオータミキシング; |
72X-41141-01-00 |
US $1,676.40 |
||
|
25
|
25
72X-14653-00-00 Gasket, Exhaust 4ガスケツト，エキゾースト ４; |
72X-14653-00-00 |
US $15.02 |
||
|
26
|
26
95670-10625-00 Bolt, Stud |
95670-10625-00 |
US $11.62 |
||
|
27
|
27
95670-10325-00 Bolt, Stud |
95670-10325-00 |
US $10.06 |
||
|
28
|
28
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
29
|
29
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
|
30
|
30
N14-14987-00-00 Hoseホース; |
N14-14987-00-00 |
US $402.38 |
||
|
31
|
31
90450-99043-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-99043-00 |
from US $10.19 |
||
