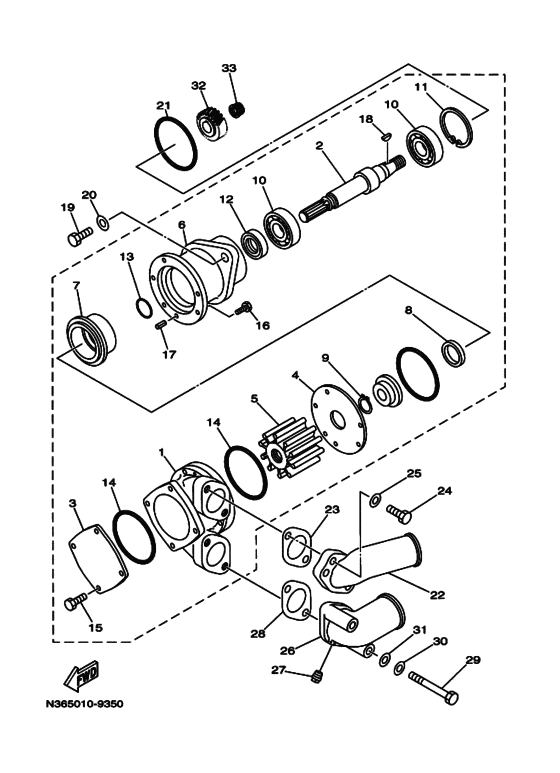

Water pump (海水) Diagram Yamaha MD380T
- Model code
- N365
- Year
- 1999
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
N36-12402-00-00 Sea Water Pump Sub-Assyシーウオータポンプサブアセンブリ; |
N36-12402-00-00 |
US $1,966.80 |
||
|
2
|
2
N18-12458-00-00 Shaft, Impeller．シヤフト，インペラ; |
N18-12458-00-00 |
US $542.52 |
||
|
3
|
3
71R-12422-00-00 Cover, Housing．カバー，ハウジング; |
71R-12422-00-00 |
US $51.95 |
||
|
4
|
4
71R-12431-00-00 Plate,wear．プレート，ウエア; |
71R-12431-00-00 |
US $41.86 |
||
|
5
|
5
71R-12457-00-00 Impeller．インペラ; |
71R-12457-00-00 |
US $93.53 |
||
|
6
|
6
N36-1243N-00-00 Hsg., Water Pump Bearing．ハウジング，ウオータポンプベアリング; |
N36-1243N-00-00 |
US $432.39 |
||
|
7
|
7
N18-1243T-00-00 Hsg., Mechanical Seal．ハウジング，メカニカル シール; |
N18-1243T-00-00 |
US $93.67 |
||
|
8
|
8
N18-12438-00-00 Seal, Mechanical．シール，メカニカル; |
N18-12438-00-00 |
US $78.06 |
||
|
9
|
9
71R-1243H-00-00 Circlip, Pump 1．サークリツプ，ポンプ １; |
71R-1243H-00-00 |
US $7.79 |
||
|
10
|
10
93306-20401-00 Bearing．ベアリング ; Ｂ６２０４ |
93306-20401-00 |
from US $15.02 |
||
| replacements | |||||
|
10
|
10
93306-20461-00 Bearing．ベアリング ; Ｂ６２０４ |
93306-20461-00 |
from US $15.02 |
||
|
10
|
10
93306-204Y7-00
Bearing
．ベアリング ; Ｂ６２０４ |
93306-204Y7-00 |
— | ||
|
11
|
11
71R-1243J-00-00 Cir-Clip, Pump 2．サークリツプ，ポンプ ２; |
71R-1243J-00-00 |
US $7.65 |
||
|
12
|
12
71R-1243M-00-00 Seal, Water Pump．シール，ウオータポンプ; |
71R-1243M-00-00 |
US $12.04 |
||
|
13
|
13
N10-12439-00-00 O-Ring．Ｏーリング; |
N10-12439-00-00 |
US $13.03 |
||
|
14
|
14
93210-69686-00 O-Ring (93210-69472)．Ｏーリング; |
93210-69686-00 |
US $6.66 |
||
| replacement | |||||
|
14
|
14
932-1069M-G6-00 O-Ring．Ｏーリング; |
932-1069M-G6-00 |
from US $4.30 |
||
|
15
|
15
98080-06010-00 Bolt．ボルト; |
98080-06010-00 |
US $1.28 |
||
|
16
|
16
98080-06020-00 Bolt．ボルト; |
98080-06020-00 |
US $1.56 |
||
|
17
|
17
N10-1243R-00-00 Pin, Stopper．ピン，ストツパ; |
N10-1243R-00-00 |
US $2.98 |
||
|
18
|
18
90280-05022-00 Key, Woodruff．キー，ウツドラフ; |
90280-05022-00 |
from US $5.95 |
||
|
19
|
19
90101-10327-00 Boltボルト，ヘキサゴン ; Ｌ＝２５， Ｐ＝１．５ |
90101-10327-00 |
from US $10.51 |
||
|
20
|
20
92907-10600-00 Washer, Plateワツシヤ，プレート; |
92907-10600-00 |
from US $1.07 |
||
|
21
|
21
932-10644-88-00
O-Ring
Ｏーリング; |
932-10644-88-00 |
— | ||
| replacement | |||||
|
21
|
21
93210-65752-00 O-RingＯーリング; |
93210-65752-00 |
from US $11.92 |
||
|
22
|
22
72X-12581-00-00 Joint, Hose 1ジヨイント，ホース １; |
72X-12581-00-00 |
US $204.48 |
||
|
23
|
23
N36-12583-00-00 Gasket, Hose Joint |
N36-12583-00-00 |
US $4.53 |
||
|
24
|
24
97027-08030-00 Boltボルト; |
97027-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
970-17080-30-00 Boltボルト; |
970-17080-30-00 |
from US $1.70 |
||
|
25
|
25
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
26
|
26
N21-12582-00-00 Joint, Hose 2ジヨイント，ホース ２; |
N21-12582-00-00 |
US $255.60 |
||
|
27
|
27
90345-51003-00 Plug, Taper Screw |
90345-51003-00 |
US $19.84 |
||
|
28
|
28
N36-12583-00-00 Gasket, Hose Joint |
N36-12583-00-00 |
US $4.53 |
||
|
29
|
29
97027-08060-00 Bolt, Hexagonボルト; |
97027-08060-00 |
from US $2.41 |
||
| replacement | |||||
|
29
|
29
97017-08060-00 Boltボルト; |
97017-08060-00 |
from US $2.41 |
||
|
30
|
30
929-07086-00-00 Washer, Plateワツシヤ，プレート; |
929-07086-00-00 |
from US $1.21 |
||
|
31
|
31
90201-08649-00 Washer, Plateワツシヤ，プレート; |
90201-08649-00 |
from US $1.28 |
||
|
32
|
32
YH4-43511-11-0H Gear, Drive (7244351-1110 |
YH4-43511-11-0H |
US $128.49 |
||
|
33
|
33
YH1-32661-09-0H Nut,conrodナツト; |
YH1-32661-09-0H |
US $10.63 |
||
