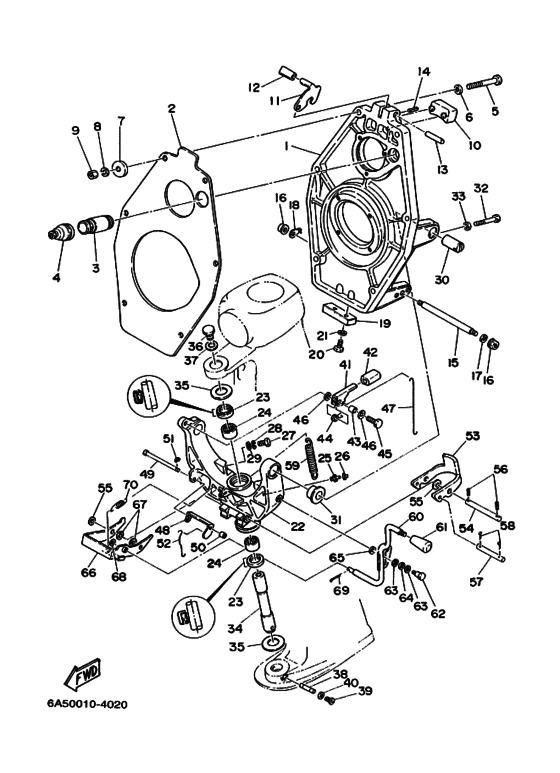

ﾄﾗﾝｻﾑ Diagram Yamaha MU-1
- Model code
- 6A5
- Year
- 1993
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A5-45831-03-4D Plate, Transomプレ−ト，トランサム; |
6A5-45831-03-4D |
US $1,966.80 |
||
|
2
|
2
6A5-45834-00-00 Gasket, Transomガスケツト，トランサム; |
6A5-45834-00-00 |
US $156.12 |
||
|
3
|
3
6A5-48566-00-00 Collarカラー; |
6A5-48566-00-00 |
US $51.26 |
||
|
4
|
4
6A5-48392-00-00 Boot, Remocon Cableブ−ツ，リモコンケ−ブル; |
6A5-48392-00-00 |
US $48.77 |
||
|
5
|
5
97395-10085-00 Bolt |
97395-10085-00 |
US $15.58 |
||
|
6
|
6
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.07 |
||
|
7
|
7
90201-10M39-00 Washer, Plate |
90201-10M39-00 |
US $10.06 |
||
|
8
|
8
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.34 |
||
|
9
|
9
95380-10600-00 Ecrou |
95380-10600-00 |
from US $2 |
||
|
10
|
10
6A5-45835-00-00 Damperダンパ; |
6A5-45835-00-00 |
US $90.63 |
||
|
11
|
11
6A5-43676-00-00 Hookフツク; |
6A5-43676-00-00 |
US $84.97 |
||
|
12
|
12
663-43318-00-00 Coverカバー; |
663-43318-00-00 |
from US $4.96 |
||
|
13
|
13
90250-10M04-00 Pin, Straight |
90250-10M04-00 |
US $9.35 |
||
|
14
|
14
91690-40022-00 Pin, Spring |
91690-40022-00 |
from US $1.98 |
||
|
15
|
15
6A5-43164-01-00 Rod, Tilt Lockロツド，チルトロツク; |
6A5-43164-01-00 |
US $146.45 |
||
|
16
|
16
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.30 |
||
|
17
|
17
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
18
|
18
6A5-43165-01-00 Plate, Tilt Lockプレ−ト，チルトロツク; |
6A5-43165-01-00 |
US $45.59 |
||
|
19
|
19
6A5-45836-00-00 Anode |
6A5-45836-00-00 |
US $52.64 |
||
|
20
|
20
97080-06018-00 Bolt (Fj0)ボルト; |
97080-06018-00 |
from US $4.11 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
6A5-45851-01-4D Fork, Steeringホ−ク，ステアリング; |
6A5-45851-01-4D |
US $1,188 |
||
|
23
|
23
93101-22M09-00 Oil Sealオイルシ−ル; |
93101-22M09-00 |
US $17.28 |
||
|
24
|
24
93315-322U5-00 Bearing |
93315-322U5-00 |
US $22.81 |
||
|
25
|
25
93700-06M03-00 Nipple, Greaseニツプル，グリ−ス; |
93700-06M03-00 |
from US $2.66 |
||
|
26
|
26
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリ−スニツプル; |
663-45119-00-00 |
US $3.68 |
||
|
27
|
27
97395-08016-00 Bolt |
97395-08016-00 |
US $1.28 |
||
| replacements | |||||
|
27
|
27
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
|
27
|
27
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
27
|
27
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
29
|
29
90201-08M08-00 Washer, Plate |
90201-08M08-00 |
from US $3.26 |
||
|
30
|
30
6A5-45855-00-00 Pin, Hinge |
6A5-45855-00-00 |
US $42 |
||
|
31
|
31
90386-20M28-00 Bush |
90386-20M28-00 |
US $9.35 |
||
|
32
|
32
90101-08M60-00 Bolt |
90101-08M60-00 |
US $19.98 |
||
|
33
|
33
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
34
|
34
6A5-42521-00-00 Shaft, Steering Pivotシヤフト，ステアリングピボツト; |
6A5-42521-00-00 |
US $321.91 |
||
|
35
|
35
90201-22M38-00 Washer, Plate |
90201-22M38-00 |
US $8.22 |
||
|
36
|
36
90101-12M59-00 Bolt |
90101-12M59-00 |
from US $17.57 |
||
|
37
|
37
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
38
|
38
6A5-45614-10-00 Pin, Driveピン，ドライブ; |
6A5-45614-10-00 |
US $22.81 |
||
|
39
|
39
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
39
|
39
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
40
|
40
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
40
|
40
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
41
|
41
6A5-43631-01-00 Lever, Tiltレバー，チルト; |
6A5-43631-01-00 |
US $14.45 |
||
|
42
|
42
663-43318-00-00 Coverカバー; |
663-43318-00-00 |
from US $4.96 |
||
|
43
|
43
90380-08M05-00 Bush, Solid |
90380-08M05-00 |
from US $8.42 |
||
|
44
|
44
90508-12M07-00 Spring, Torsion |
90508-12M07-00 |
US $8.36 |
||
|
45
|
45
97395-08025-00 Bolt |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
45
|
45
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.24 |
||
|
45
|
45
97095-08025-00 Bolt |
97095-08025-00 |
from US $2.98 |
||
|
46
|
46
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
47
|
47
6A5-43616-01-00 Rod, Tilt Lockロツド，チルトロツク; |
6A5-43616-01-00 |
US $8.93 |
||
|
48
|
48
6A5-43642-01-00 Lever, Tilt 2レバー，チルト ２; |
6A5-43642-01-00 |
US $14.45 |
||
|
49
|
49
90249-05M08-00 Pin |
90249-05M08-00 |
US $6.94 |
||
|
50
|
50
90380-05M06-00 Bush, Solid |
90380-05M06-00 |
US $7.93 |
||
|
51
|
51
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.56 |
||
| replacement | |||||
|
51
|
51
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
|
52
|
52
6A5-43617-01-00 Rod, Tilt Lockロツド，チルトロツク; |
6A5-43617-01-00 |
US $13.88 |
||
|
53
|
53
6A5-43613-02-00 Arm, Tilt Lockア−ム，チルトロツク; |
6A5-43613-02-00 |
US $156.12 |
||
|
54
|
54
6A5-43611-00-00 Shaft, Tilt Lockシヤフト，チルトロツク; |
6A5-43611-00-00 |
US $22.67 |
||
|
55
|
55
90202-10M11-00 Washer, Plate |
90202-10M11-00 |
US $4.53 |
||
|
56
|
56
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2 |
||
|
57
|
57
90255-05M03-00 Pin, With Hole |
90255-05M03-00 |
US $6.66 |
||
|
58
|
58
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
59
|
59
90506-14M20-00 Spring, Tension |
90506-14M20-00 |
US $13.60 |
||
|
60
|
60
6A5-43681-00-00 Lever, Shallow Water Drive 1レバ−，シヤロウオ−タドライブ; |
6A5-43681-00-00 |
US $107.07 |
||
|
61
|
61
642-44111-00-00 Handle, Gear Shiftハンドル，ギヤシフト; |
642-44111-00-00 |
US $25.08 |
||
|
62
|
62
90109-06M06-00 Bolt |
90109-06M06-00 |
from US $19.27 |
||
|
63
|
63
90201-08103-00 Washer, Plate |
90201-08103-00 |
from US $1.28 |
||
|
64
|
64
90206-08010-00 Washer, Waveワツシヤ，ウエイブ; |
90206-08010-00 |
from US $3.97 |
||
|
65
|
65
90201-06M53-00 Washer, Plate |
90201-06M53-00 |
from US $4.55 |
||
|
66
|
66
6A5-43682-00-00 Lever, Shallow Water Drive 2レバ−，シヤロウオ−タドライブ ２; |
6A5-43682-00-00 |
US $107.07 |
||
|
67
|
67
90202-10M11-00 Washer, Plate |
90202-10M11-00 |
US $4.53 |
||
|
68
|
68
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
69
|
69
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
70
|
70
90506-12M08-00 Spring, Tension |
90506-12M08-00 |
US $11.90 |
||
