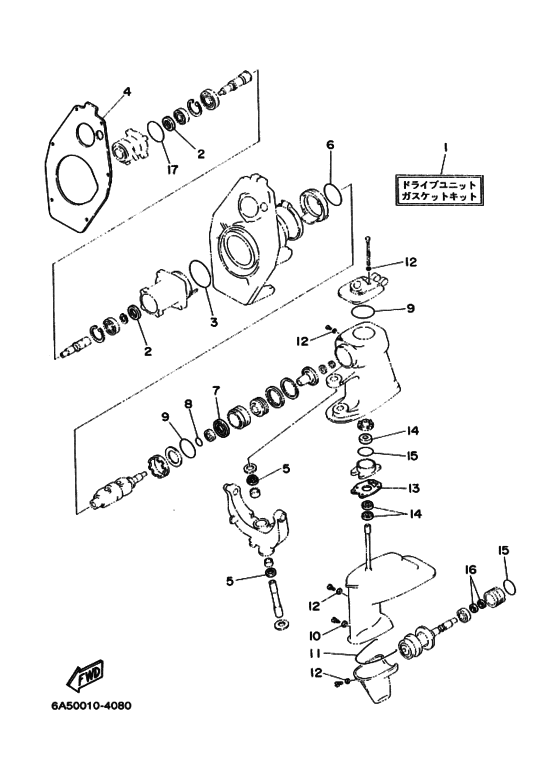

ﾘﾍﾟｱｷﾂﾄ Diagram Yamaha MU-1
- Model code
- 6A5
- Year
- 1993
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A5-W0001-21-00
Drive Unit Gasket Kit
ドライブユニツトガスケツトキツト; |
6A5-W0001-21-00 |
— | ||
|
2
|
2
93102-35M18-00 Oil Seal (6F5)．オイルシ−ル; |
93102-35M18-00 |
from US $8.60 |
||
|
3
|
3
93210-98M33-00 O-Ring．Ｏ−リング; |
93210-98M33-00 |
from US $10.48 |
||
|
4
|
4
6A5-45834-00-00 Gasket, Transom．ガスケツト，トランサム; |
6A5-45834-00-00 |
US $156.12 |
||
|
5
|
5
93101-22M09-00 Oil Seal．オイルシ−ル; |
93101-22M09-00 |
US $17.28 |
||
|
6
|
6
93210-85075-00 O-Ring．Ｏ−リング; |
93210-85075-00 |
from US $5.95 |
||
|
7
|
7
93102-42M10-00 Oil Seal．オイルシ−ル; |
93102-42M10-00 |
US $10.48 |
||
|
8
|
8
93210-27ME3-00 O-Ring．Ｏ−リング; |
93210-27ME3-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
93210-27806-00 O-Ring．Ｏ−リング; |
93210-27806-00 |
from US $1.28 |
||
|
9
|
9
93210-66M98-00 O-Ring．Ｏ−リング; |
93210-66M98-00 |
from US $6.80 |
||
|
10
|
10
90430-06M03-00 Gasket．ガスケツト; |
90430-06M03-00 |
from US $1.34 |
||
|
11
|
11
676-45314-00-00 Seal, Lower Casing．シ−ル，ロワ−ケ−シング; |
676-45314-00-00 |
US $9.78 |
||
|
12
|
12
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
12
|
12
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.28 |
||
|
13
|
13
676-44316-00-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
676-44316-00-00 |
US $5.81 |
||
| replacements | |||||
|
13
|
13
676-44316-A1-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
676-44316-A1-00 |
from US $3.98 |
||
|
13
|
13
676-44316-A0-00 Gasket, Water Pump．ガスケツト，ウオ−タポンプ; |
676-44316-A0-00 |
US $5.81 |
||
|
14
|
14
931-01220-67-00 Oil Seal．オイルシ−ル; |
931-01220-67-00 |
from US $7.51 |
||
|
15
|
15
93210-57M00-00 O-Ring．Ｏ−リング; |
93210-57M00-00 |
from US $6.94 |
||
|
16
|
16
93101-20048-00 Oil Seal．オイルシ−ル; |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
16
|
16
93102-20484-00 Oil Seal．オイルシ−ル; |
93102-20484-00 |
from US $3.64 |
||
|
17
|
17
93210-71311-00 O-Ring．Ｏ−リング; |
93210-71311-00 |
from US $7.51 |
||
