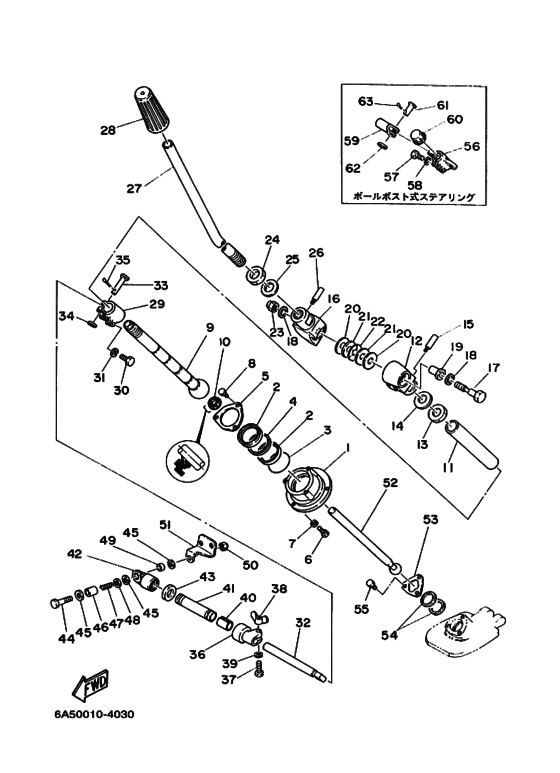

Steering Diagram Yamaha MU-1
- Model code
- 6A5
- Year
- 1993
- Sales region
- Japan (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6A5-42135-00-4D Housing, Throttle Leverハウジング; |
6A5-42135-00-4D |
US $247.31 |
||
|
2
|
2
6A5-42171-01-00 Bushingブツシユ; |
6A5-42171-01-00 |
US $27.49 |
||
|
3
|
3
93210-46M16-00 O-Ring |
93210-46M16-00 |
from US $3.64 |
||
|
4
|
4
90202-42M27-00 Washer, Plate |
90202-42M27-00 |
US $6.80 |
||
|
5
|
5
6A5-42131-00-00 Cover, Handle Steeringカバ−，ハンドルステアリング; |
6A5-42131-00-00 |
US $13.18 |
||
|
6
|
6
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
9
|
9
6A5-42111-00-00 Handle, Steeringハンドル，ステアリング; |
6A5-42111-00-00 |
US $420.11 |
||
|
10
|
10
93109-16M01-00 Oil Sealオイルシ−ル; |
93109-16M01-00 |
US $18.99 |
||
|
11
|
11
6A5-42155-00-00 Spacer, Handle 1スペ−サ，ハンドル; |
6A5-42155-00-00 |
US $90.63 |
||
|
12
|
12
6A5-42112-01-4D Handle, Steering |
6A5-42112-01-4D |
US $252.83 |
||
|
13
|
13
90170-22M02-00 Nut |
90170-22M02-00 |
US $25.08 |
||
|
14
|
14
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
14
|
14
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $2.66 |
||
|
15
|
15
90113-06M03-00 Bolt, Set |
90113-06M03-00 |
US $22.24 |
||
|
16
|
16
6A5-42113-10-4D Handle, Steering 3ハンドル，ステアリング ３; |
6A5-42113-10-4D |
US $215.53 |
||
|
17
|
17
90101-12M06-00 Bolt |
90101-12M06-00 |
from US $13.46 |
||
| replacement | |||||
|
17
|
17
901-01120-75-00 BOLT |
901-01120-75-00 |
from US $13.46 |
||
|
18
|
18
929-90122-00-00 Washer, Plainワツシヤ，プレ−ン; |
929-90122-00-00 |
from US $1.34 |
||
|
19
|
19
90386-12089-00 Bush |
90386-12089-00 |
from US $5.24 |
||
|
20
|
20
90202-12092-00 Washer, Plate |
90202-12092-00 |
from US $2.55 |
||
|
21
|
21
90201-12537-00 Washer, Plate |
90201-12537-00 |
from US $4.64 |
||
|
22
|
22
90206-12054-00 Washer, Waveワツシヤ，ウエイブ; |
90206-12054-00 |
from US $3.26 |
||
|
23
|
23
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
24
|
24
90170-22M02-00 Nut |
90170-22M02-00 |
US $25.08 |
||
|
25
|
25
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
25
|
25
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $2.66 |
||
|
26
|
26
90113-06M03-00 Bolt, Set |
90113-06M03-00 |
US $22.24 |
||
|
27
|
27
6A5-42114-01-00 Handle, Steering 4 (L:975Mm)ハンドル，ステアリング ４ ; Ｌ：９７５ＭＭ |
6A5-42114-01-00 |
US $527.87 |
||
|
27
|
27
6A5-42114-10-00 Handle, Steering 4 (L:1240Mm)ハンドル，ステアリング ４ ; Ｌ：１２４０ＭＭ; ＡＰ |
6A5-42114-10-00 |
US $527.87 |
||
|
28
|
28
6A5-42177-00-00 Rubber, Handleラバ−，ハンドル; |
6A5-42177-00-00 |
US $42 |
||
|
29
|
29
6A5-42121-02-00 Bracket |
6A5-42121-02-00 |
US $193.42 |
||
|
30
|
30
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
30
|
30
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
32
|
32
6A5-42518-01-00 Shaft, Friction |
6A5-42518-01-00 |
US $117.30 |
||
|
33
|
33
90240-10M03-00 Pin, Clevis |
90240-10M03-00 |
US $21.68 |
||
|
34
|
34
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.07 |
||
|
35
|
35
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.13 |
||
| replacement | |||||
|
35
|
35
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
|
36
|
36
6A5-42528-00-00 Plate, Frictionプレ−ト，フリクシヨン; |
6A5-42528-00-00 |
US $178.23 |
||
|
37
|
37
90101-06M75-00 Bolt |
90101-06M75-00 |
from US $3.54 |
||
|
38
|
38
90175-06003-00 Nut, Wing |
90175-06003-00 |
from US $7.79 |
||
| replacements | |||||
|
38
|
38
901-75069-00-00 Nut, Wing (F87) |
901-75069-00-00 |
from US $9.07 |
||
|
38
|
38
90175-06015-00 Nut, Wing |
90175-06015-00 |
US $7.79 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレ−ト; |
929-90066-00-00 |
from US $1.07 |
||
|
40
|
40
90386-15M46-00 Bush |
90386-15M46-00 |
US $7.08 |
||
|
41
|
41
6A5-42519-01-00 Tube, Friction |
6A5-42519-01-00 |
US $90.63 |
||
|
42
|
42
6A5-42169-00-00 Joint |
6A5-42169-00-00 |
US $234.87 |
||
|
43
|
43
90170-22M08-00 Nut |
90170-22M08-00 |
US $13.32 |
||
|
44
|
44
90101-10M39-00 Bolt |
90101-10M39-00 |
from US $10.35 |
||
|
45
|
45
902-0110M-63-00
Washer, Plate
|
902-0110M-63-00 |
— | ||
| replacement | |||||
|
45
|
45
902-01100-81-00 WASHER PLATE |
902-01100-81-00 |
from US $2.69 |
||
|
46
|
46
90385-12M00-00 Bush |
90385-12M00-00 |
from US $2.98 |
||
|
47
|
47
90501-11M10-00 Spring, Compression |
90501-11M10-00 |
from US $1.34 |
||
|
48
|
48
90202-10M05-00 Washer, Plate |
90202-10M05-00 |
from US $4.14 |
||
|
49
|
49
663-61352-01-00 Ball, Jointボ−ル，ジヨイント; |
663-61352-01-00 |
from US $40.70 |
||
|
50
|
50
90185-09M01-00 Nut, Self-Locking |
90185-09M01-00 |
from US $5.30 |
||
|
51
|
51
6A5-42159-00-00 Stayステー; |
6A5-42159-00-00 |
US $121.58 |
||
|
52
|
52
6A5-42115-00-00 Shaft, Steering Handleシヤフト，ステアリングハンドル; |
6A5-42115-00-00 |
US $507.41 |
||
|
53
|
53
6A5-42134-00-00 Coverカバ−，スロツトルレバ−; |
6A5-42134-00-00 |
US $39.24 |
||
|
54
|
54
6A5-42172-00-00 Bushing 2 |
6A5-42172-00-00 |
US $34.14 |
||
|
55
|
55
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
55
|
55
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
56
|
56
6A5-48511-00-00 Hook, Steering |
6A5-48511-00-00 |
US $198.95 |
||
|
57
|
57
97395-08020-00 Bolt, Hexagon |
97395-08020-00 |
from US $2.09 |
||
| replacement | |||||
|
57
|
57
97095-08020-00 Bolt |
97095-08020-00 |
from US $3.54 |
||
|
58
|
58
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.34 |
||
|
59
|
59
6A5-48338-00-00 Connectorコネクタ; |
6A5-48338-00-00 |
US $127.94 |
||
|
60
|
60
6A5-48517-00-00 Capキヤツプ; |
6A5-48517-00-00 |
US $28.62 |
||
|
61
|
61
90240-10M03-00 Pin, Clevis |
90240-10M03-00 |
US $21.68 |
||
|
62
|
62
929-90106-00-00 Washer, Plateワツシヤ，プレ−ト; |
929-90106-00-00 |
from US $1.07 |
||
|
63
|
63
914-90300-20-00 Pin. Cotter |
914-90300-20-00 |
US $1.13 |
||
| replacement | |||||
|
63
|
63
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
