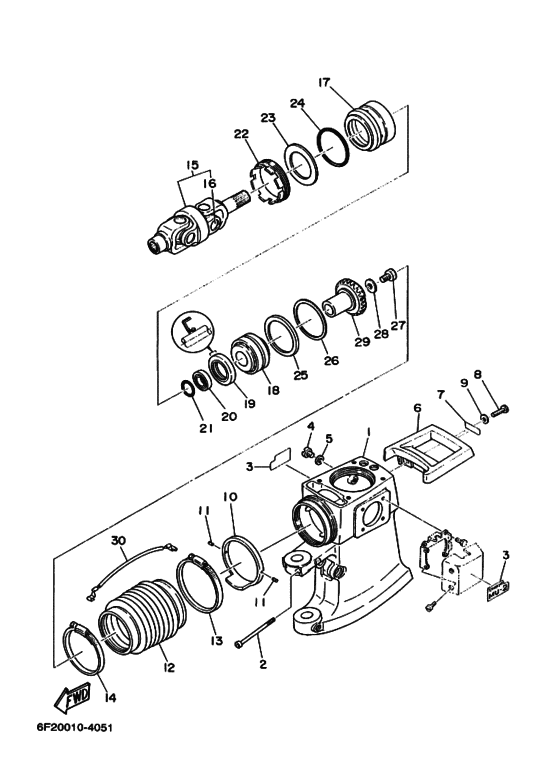

ｱｳﾄﾎﾞｰﾄﾞﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha MU-2
- Model code
- 6F20
- Year
- 1993
- Sales region
- Japan (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F2-45111-02-4D Casing, Upperケーシング，アツパー; |
6F2-45111-02-4D |
US $2,389.20 |
||
|
2
|
2
90110-08M00-00 Bolt, Hexagon Socket Head |
90110-08M00-00 |
US $19.98 |
||
|
3
|
3
6F2-42675-00-00
Graphic, Side 1
|
6F2-42675-00-00 |
— | ||
|
4
|
4
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
4
|
4
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
5
|
5
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
6
|
6
6F2-45878-00-4D Handle, TiltＵＲ |
6F2-45878-00-4D |
US $350.93 |
||
|
6
|
6
6F2-45878-10-4D Handle, Tiltハンドル，チルト; ＵＲ パワートリム ＆ａｍｐ； チルトヨウ |
6F2-45878-10-4D |
US $350.93 |
||
|
7
|
7
6F2-42687-00-00
Emblem, Rear (Yamaha)
エンブレム，リヤ ; ＹＡＭＡＨＡ |
6F2-42687-00-00 |
— | ||
|
8
|
8
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
8
|
8
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
9
|
9
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
6F2-45151-00-00 Cover, Upper Casingカバー，アツパーケーシング; |
6F2-45151-00-00 |
US $193.42 |
||
|
11
|
11
91690-25006-00 Pin, Spring |
91690-25006-00 |
US $3.40 |
||
|
12
|
12
6A5-45867-00-00 Bellowsベローズ; |
6A5-45867-00-00 |
US $128.77 |
||
|
13
|
13
90460-99116-00 Clamp, Hoseクランプ，ホース; |
90460-99116-00 |
from US $68.71 |
||
|
14
|
14
90460-90101-00 Clamp, Hoseクランプ，ホース; |
90460-90101-00 |
US $43.52 |
||
|
15
|
15
6F2-45860-02-00 Universal Joint Assyユニバーサルジヨイントアセンブリ; |
6F2-45860-02-00 |
US $1,887.60 |
||
|
16
|
16
6F2-45864-02-00 Spider Bearing Comp．クロスジヨイント; |
6F2-45864-02-00 |
US $320.53 |
||
|
17
|
17
6F2-45871-00-00 Housing, Bearing |
6F2-45871-00-00 |
US $628.32 |
||
|
18
|
18
93332-000V1-00 Bearing |
93332-000V1-00 |
US $208.62 |
||
|
19
|
19
93102-45M17-00 Oil Sealオイルシール; |
93102-45M17-00 |
US $45.87 |
||
|
20
|
20
6F2-45874-00-00 Ring, Sealリング，シール; |
6F2-45874-00-00 |
US $227.96 |
||
|
21
|
21
93210-35M72-00 O-Ring |
93210-35M72-00 |
from US $7.65 |
||
|
22
|
22
6F2-45872-00-94 Retainer, Bearingリテーナ，ベアリング; |
6F2-45872-00-94 |
US $179.61 |
||
|
23
|
23
688-45576-00-00 Washer, Thrust 2ワツシヤ，スラスト; |
688-45576-00-00 |
from US $9.35 |
||
|
24
|
24
932-1085M-97-00 O-RingＯ−リング; |
932-1085M-97-00 |
from US $6.94 |
||
|
25
|
25
6F2-45873-00-00 Spacer, Gearスペーサ，ギヤ; |
6F2-45873-00-00 |
US $67.84 |
||
|
26
|
26
688-45577-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45577-01-40 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45577-50-00 |
from US $2.98 |
||
|
26
|
26
688-45577-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45577-01-50 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45577-60-00 |
from US $2.98 |
||
|
26
|
26
688-45577-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45577-01-10 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45577-01-00 |
from US $6.38 |
||
|
26
|
26
688-45577-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45577-01-12 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45577-10-00 |
from US $2.66 |
||
|
26
|
26
688-45577-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45577-01-15 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45577-20-00 |
from US $2.32 |
||
|
26
|
26
688-45577-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45577-01-18 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45577-30-00 |
from US $2.66 |
||
|
26
|
26
688-45577-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45577-01-30 |
US $6.38 |
||
| replacement | |||||
|
26
|
26
688-45577-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45577-40-00 |
from US $3.32 |
||
|
27
|
27
90101-12M72-00 Bolt |
90101-12M72-00 |
US $12.47 |
||
|
28
|
28
90201-12M37-00 Washer, Plateワツシヤ，プレート; |
90201-12M37-00 |
US $17.85 |
||
|
29
|
29
6F2-45551-00-00 Pinion (24T)ピニオン ; ２４Ｔ |
6F2-45551-00-00 |
US $239.02 |
||
|
30
|
30
6A5-82149-01-00 Wire, Lead 3ワイヤ，リード ３; |
6A5-82149-01-00 |
US $112.46 |
||
