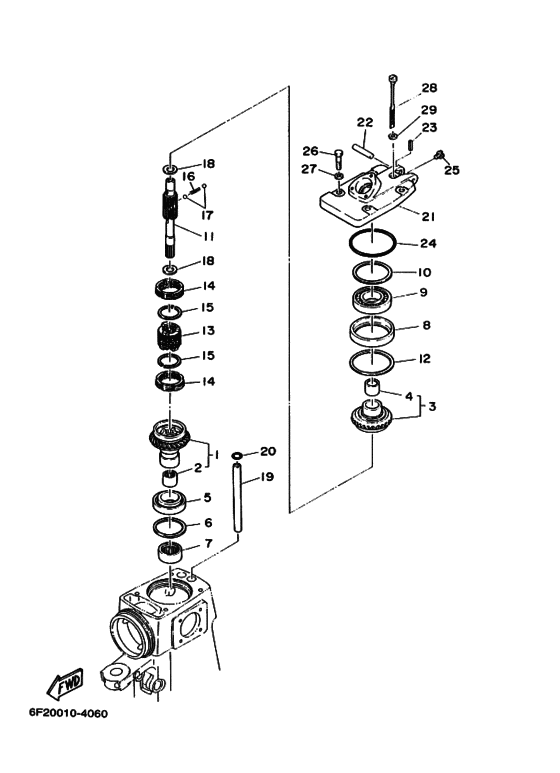

ｱｳﾄﾎﾞｰﾄﾞﾄﾞﾗｲﾌﾞ 2 Diagram Yamaha MU-2
- Model code
- 6F20
- Year
- 1993
- Sales region
- Japan (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F2-45560-02-00
Gear
ギヤ; |
6F2-45560-02-00 |
— | ||
|
2
|
2
933-17222-04-00 Bearing．ベアリング; |
933-17222-04-00 |
from US $10.48 |
||
|
3
|
3
6F2-45570-02-00
Gear
ギヤ; |
6F2-45570-02-00 |
— | ||
|
4
|
4
93315-322U5-00 Bearing．ベアリング; |
93315-322U5-00 |
US $22.81 |
||
|
5
|
5
93332-000V0-00 Bearing |
93332-000V0-00 |
US $64.24 |
||
|
6
|
6
6F2-45567-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
6F2-45567-01-40 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
6F2-45567-01-50 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
6F2-45567-01-10 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
6F2-45567-01-12 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
6F2-45567-01-15 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
6F2-45567-01-18 |
US $23.24 |
||
|
6
|
6
6F2-45567-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
6F2-45567-01-30 |
US $23.24 |
||
|
7
|
7
93317-640U4-00 Bearing |
93317-640U4-00 |
US $34.57 |
||
|
8
|
8
6F2-45572-00-00 Sleeve, Gear 2スリーブ，ギヤ ２; |
6F2-45572-00-00 |
US $158.88 |
||
|
9
|
9
93306-208U0-00 Bearing |
93306-208U0-00 |
from US $34.06 |
||
|
10
|
10
688-45567-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45567-01-10 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45567-01-00 |
from US $2 |
||
|
10
|
10
688-45567-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45567-01-12 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45567-10-00 |
from US $1.66 |
||
|
10
|
10
688-45567-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45567-01-15 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45567-20-00 |
from US $6.52 |
||
|
10
|
10
688-45567-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45567-01-18 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45567-30-00 |
from US $2 |
||
|
10
|
10
688-45567-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45567-01-30 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45567-40-00 |
from US $2 |
||
|
10
|
10
688-45567-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45567-01-40 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45567-50-00 |
from US $1.66 |
||
|
10
|
10
688-45567-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45567-01-50 |
US $6.52 |
||
| replacement | |||||
|
10
|
10
688-45567-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45567-60-00 |
from US $2.32 |
||
|
11
|
11
6F2-45511-00-00 Shaft, Driveシヤフト，ドライブ; |
6F2-45511-00-00 |
US $387.38 |
||
|
12
|
12
688-45577-01-15 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45577-01-15 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-20-00 Shim (T:0.15Mm)．シム ; Ｔ：０１５ＭＭ; ＵＲ |
688-45577-20-00 |
from US $2.32 |
||
|
12
|
12
688-45577-01-18 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45577-01-18 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-30-00 Shim (T:0.18Mm)．シム ; Ｔ：０１８ＭＭ; ＵＲ |
688-45577-30-00 |
from US $2.66 |
||
|
12
|
12
688-45577-01-30 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45577-01-30 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-40-00 Shim (T:0.30Mm)．シム ; Ｔ：０３０ＭＭ; ＵＲ |
688-45577-40-00 |
from US $3.32 |
||
|
12
|
12
688-45577-01-40 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45577-01-40 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-50-00 Shim (T:0.40Mm)．シム ; Ｔ：０４０ＭＭ; ＵＲ |
688-45577-50-00 |
from US $2.98 |
||
|
12
|
12
688-45577-01-50 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45577-01-50 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-60-00 Shim (T:0.50Mm)．シム ; Ｔ：０５０ＭＭ; ＵＲ |
688-45577-60-00 |
from US $2.98 |
||
|
12
|
12
688-45577-01-10 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45577-01-10 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-01-00 Shim (T:0.10Mm)．シム ; Ｔ：０１０ＭＭ; ＵＲ |
688-45577-01-00 |
from US $6.38 |
||
|
12
|
12
688-45577-01-12 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45577-01-12 |
US $6.38 |
||
| replacement | |||||
|
12
|
12
688-45577-10-00 Shim (T:0.12Mm)．シム ; Ｔ：０１２ＭＭ; ＵＲ |
688-45577-10-00 |
from US $2.66 |
||
|
13
|
13
6F2-45631-01-00 Clutch, Dogクラツチ，ドツグ; |
6F2-45631-01-00 |
US $451.48 |
||
|
14
|
14
6F2-45888-00-00 Sleeve, Synchronizerスリーブ，シンクロナイザ; |
6F2-45888-00-00 |
US $996.60 |
||
|
15
|
15
6F2-45889-00-00 Ring, Synchronizerリング，シンクロナイザ; |
6F2-45889-00-00 |
US $200.33 |
||
|
16
|
16
90501-09M26-00 Spring, Compression |
90501-09M26-00 |
US $7.65 |
||
|
17
|
17
93501-04011-00 Ballボール; |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
17
|
17
97D95-06016-00 Bolt, Hexagon Deep Recessボール; |
97D95-06016-00 |
from US $1.28 |
||
|
18
|
18
90201-22M90-00 Washer, Plateワツシヤ，プレート; |
90201-22M90-00 |
US $14.73 |
||
|
19
|
19
6F2-45135-00-00 Pipeパイプ; |
6F2-45135-00-00 |
US $13.88 |
||
|
20
|
20
93210-13M43-00 O-RingＯ−リング; |
93210-13M43-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
93210-14579-00 O-Ring (26H)Ｏ−リング; |
93210-14579-00 |
from US $1.28 |
||
|
21
|
21
6F2-45152-00-4D Cover, Upper Casing 2カバー，アツパーケーシング ２; |
6F2-45152-00-4D |
US $486.95 |
||
|
22
|
22
90250-10M04-00 Pin, Straight |
90250-10M04-00 |
US $9.35 |
||
|
23
|
23
91690-40022-00 Pin, Spring |
91690-40022-00 |
from US $1.98 |
||
|
24
|
24
93210-96M48-00 O-RingＯ−リング; |
93210-96M48-00 |
US $7.93 |
||
|
25
|
25
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
25
|
25
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
26
|
26
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
26
|
26
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
27
|
27
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
28
|
28
6F2-45886-00-00 Gauge, Levelゲージ，レベル; |
6F2-45886-00-00 |
US $27.49 |
||
|
29
|
29
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
29
|
29
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
