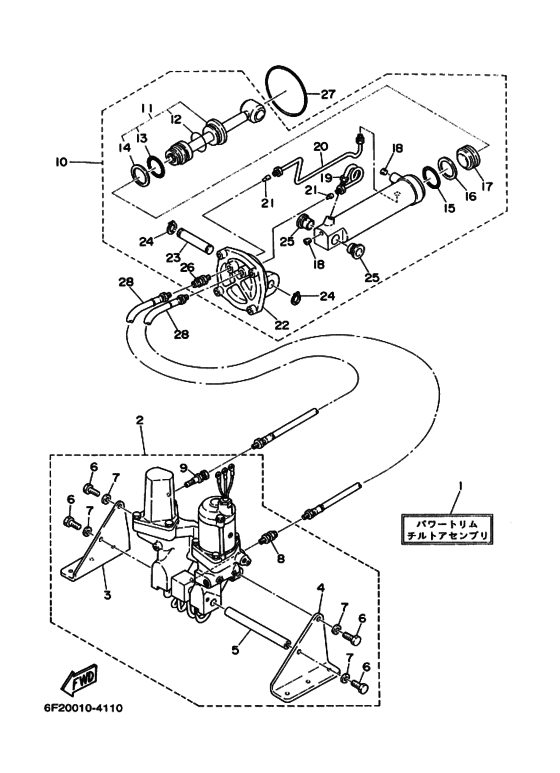

ﾊﾟﾜｰﾄﾘﾑ&ﾁﾙﾄｱｾﾝﾌﾞﾘ Diagram Yamaha MU-2
- Model code
- 6F20
- Year
- 1993
- Sales region
- Japan (010)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F2-43800-01-4D
Power Trim & Tilt Assy
パワートリム・チルトアセンブリ; ＊１ |
6F2-43800-01-4D |
— | ||
|
2
|
2
6F2-4380A-03-4D Power Tilt Body Assyパワーチルトボデイアセンブリ; 構成部品は第１２図参照 |
6F2-4380A-03-4D |
US $3,123.38 |
||
|
3
|
3
6F2-4381E-00-4D Bracket．ブラケツト; |
6F2-4381E-00-4D |
US $176.84 |
||
|
4
|
4
6F2-4381F-00-4D Bracket．ブラケツト; |
6F2-4381F-00-4D |
US $176.84 |
||
|
5
|
5
6F2-4381A-00-00 Shaft．シヤフト; |
6F2-4381A-00-00 |
US $92.01 |
||
|
6
|
6
97023-10025-00
Bolt
．ボルト; |
97023-10025-00 |
— | ||
|
7
|
7
929-90106-00-00 Washer, Plate．ワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
8
|
8
6F2-4382E-00-00 Adaptor 2．アダプタ ２; |
6F2-4382E-00-00 |
US $75.44 |
||
|
9
|
9
6F2-4382F-00-00 Adaptor 3．アダプタ ３; |
6F2-4382F-00-00 |
US $183.75 |
||
|
10
|
10
6F2-4380E-00-4D Tilt Cylinder Assyチルトシリンダアセンブリ; |
6F2-4380E-00-4D |
US $2,059.20 |
||
|
11
|
11
6F2-43810-01-00 Tilt Piston Sub Assy．ピストンサブアセンブリ; |
6F2-43810-01-00 |
US $424.20 |
||
|
12
|
12
6F2-43861-00-00 O-Ring．．Ｏ−リング; |
6F2-43861-00-00 |
US $5.67 |
||
|
13
|
13
6E5-43862-00-00 O-Ring．．Ｏ−リング; |
6E5-43862-00-00 |
US $2.98 |
||
| replacement | |||||
|
13
|
13
6E5-43862-09-00 ORING 2．．Ｏ−リング; |
6E5-43862-09-00 |
from US $2 |
||
|
14
|
14
6E5-43872-00-00 Ring, Back Up．．リング，バツクアツプ; |
6E5-43872-00-00 |
from US $6.62 |
||
|
15
|
15
6E5-43862-00-00 O-Ring．Ｏ−リング; |
6E5-43862-00-00 |
US $2.98 |
||
| replacement | |||||
|
15
|
15
6E5-43862-09-00 ORING 2．Ｏ−リング; |
6E5-43862-09-00 |
from US $2 |
||
|
16
|
16
6E5-43872-00-00 Ring, Back Up．リング，バツクアツプ; |
6E5-43872-00-00 |
from US $6.62 |
||
|
17
|
17
6E5-43814-00-00
Piston, Free
．ピストン，フリー; |
6E5-43814-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
．ピストン，フリー; |
999-99999-99-00 |
— | ||
|
18
|
18
6E5-43826-00-00 Plug, Taper Screw．プラグ，テーパスクリユ; |
6E5-43826-00-00 |
US $5.95 |
||
|
19
|
19
6F2-43833-00-00 Pipe．パイプ; |
6F2-43833-00-00 |
US $92.01 |
||
|
20
|
20
6F2-43834-00-00 Pipe．パイプ; |
6F2-43834-00-00 |
US $100.58 |
||
|
21
|
21
688-43832-00-00 Seat, Union．シート，ユニオン; |
688-43832-00-00 |
from US $3.40 |
||
|
22
|
22
6F2-45838-00-4D Cover, Tilt Cylinder Casing．カバー，チルトシリンダケーシング; |
6F2-45838-00-4D |
US $424.20 |
||
|
23
|
23
6F2-43124-00-00 Pin, Lower Shock Mount．ピン，ロワーシヨツクマウント; |
6F2-43124-00-00 |
US $54.30 |
||
|
24
|
24
93410-18M05-00 Circlip (6F2)．サークリツプ; |
93410-18M05-00 |
from US $2.98 |
||
|
25
|
25
90386-18M14-00 Bush．ブツシユ; |
90386-18M14-00 |
from US $2.32 |
||
|
26
|
26
6F2-4382E-00-00 Adaptor 2．アダプタ ２; |
6F2-4382E-00-00 |
US $75.44 |
||
|
27
|
27
93211-04384-00 O-Ring (705) |
93211-04384-00 |
from US $4.30 |
||
|
28
|
28
6F2-4383A-00-00 Hoseホース; |
6F2-4383A-00-00 |
US $428.30 |
||
