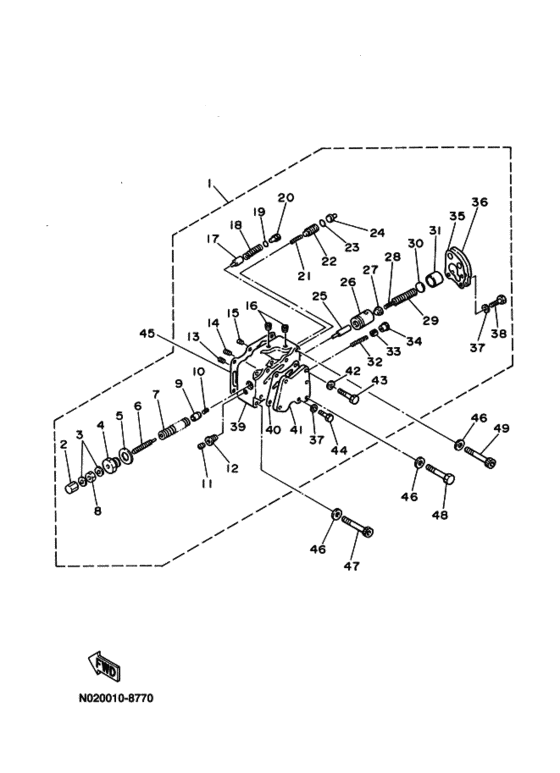

ｺﾝﾄﾛｰﾙﾊﾞﾙﾌﾞ <mgnv7040> Diagram Yamaha SX858KM
- Model code
- N02-
- Year
- 1988
- Sales region
- Japan (400)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
N02-7610J-N0-00 Valve Body Compバルブボデイコンプリート; |
N02-7610J-N0-00 |
US $8,586.60 |
||
|
2
|
2
71A-17668-00-00 Nut．ナツト; |
71A-17668-00-00 |
US $100.58 |
||
|
3
|
3
707-17948-00-00 Gasket 12．ガスケツト １２; |
707-17948-00-00 |
US $4.11 |
||
|
4
|
4
N02-17078-N0-00 Plug 1．プラグ １; |
N02-17078-N0-00 |
US $82.61 |
||
|
5
|
5
N02-16144-N0-00 Washer．ワツシヤ; |
N02-16144-N0-00 |
US $8.22 |
||
|
6
|
6
71A-18133-00-00 Screw, Adjusting．スクリユ、アジヤステイング; |
71A-18133-00-00 |
US $131.39 |
||
|
7
|
7
71A-17115-00-00 Plate, Setting．プレート、セツテイング; |
71A-17115-00-00 |
US $67.56 |
||
|
8
|
8
95302-10700-00 Nut, Hexagon．ナツト、ヘキサゴン; |
95302-10700-00 |
US $7.37 |
||
| replacements | |||||
|
8
|
8
95380-10700-00 Nut．ナツト、ヘキサゴン; |
95380-10700-00 |
from US $7.37 |
||
|
8
|
8
95314-10600-00 Nut．ナツト、ヘキサゴン; |
95314-10600-00 |
from US $1.45 |
||
|
9
|
9
71A-18245-00-00 Piston4．ピストン ４; |
71A-18245-00-00 |
US $214.15 |
||
|
10
|
10
71A-18183-00-00 Spring．スプリング; |
71A-18183-00-00 |
US $64.66 |
||
|
11
|
11
71A-17074-00-00 Plug．プラグ ３; |
71A-17074-00-00 |
US $9.07 |
||
|
12
|
12
N02-52518-N0-00 Bush．ブツシユ; |
N02-52518-N0-00 |
US $23.50 |
||
|
13
|
13
N02-17079-N0-00 Plug 2．プラグ ２; |
N02-17079-N0-00 |
US $16.43 |
||
|
14
|
14
N02-17074-N0-00 Plug．プラグ ３; |
N02-17074-N0-00 |
US $17.85 |
||
|
15
|
15
N02-18186-N0-00 Screw, Adjusting．スクリユ、アジヤステイング; |
N02-18186-N0-00 |
US $4.53 |
||
|
16
|
16
90344-51004-00 Plug, Taper Screw．プラグ、テーパスクリユ; |
90344-51004-00 |
US $6.43 |
||
|
17
|
17
N02-18217-N0-00 Piston,3．ピストン ３; |
N02-18217-N0-00 |
US $194.81 |
||
|
18
|
18
N02-18183-N0-00 Spring．スプリング; |
N02-18183-N0-00 |
US $82.21 |
||
|
19
|
19
93210-10107-00 O-Ring．Ｏ−リング; |
93210-10107-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
93210-11453-00 O-Ring．Ｏ−リング; |
93210-11453-00 |
from US $1.84 |
||
|
20
|
20
N02-18123-N0-00 Spring．プラグ、シール; |
N02-18123-N0-00 |
US $21.73 |
||
|
21
|
21
71A-18225-00-00 Spring,control Valve．スプリング、コントロール、バルブ; |
71A-18225-00-00 |
US $35.65 |
||
|
22
|
22
71A-18217-00-00 Piston,3．ピストン ３; |
71A-18217-00-00 |
US $303.95 |
||
|
23
|
23
93210-10107-00 O-Ring．Ｏ−リング; |
93210-10107-00 |
from US $1.84 |
||
| replacement | |||||
|
23
|
23
93210-11453-00 O-Ring．Ｏ−リング; |
93210-11453-00 |
from US $1.84 |
||
|
24
|
24
N02-18213-N0-00 Plug,seal．プラグ、シール; |
N02-18213-N0-00 |
US $78.47 |
||
|
25
|
25
N02-18215-N0-00 Piston 1．ピストン １; |
N02-18215-N0-00 |
US $95.38 |
||
|
26
|
26
N02-17419-N0-00
Spacer
．スペーサ; |
N02-17419-N0-00 |
— | ||
|
27
|
27
N02-17644-N0-00 Seat,spring．シート、スプリング; |
N02-17644-N0-00 |
US $35.55 |
||
|
28
|
28
N02-18143-N0-00
Spring
．スプリング; |
N02-18143-N0-00 |
— | ||
|
29
|
29
N02-17493-N0-00 Spring, Transmission Shift．スプリング; |
N02-17493-N0-00 |
US $128.07 |
||
|
30
|
30
N02-17439-N0-00 Spacer．スペーサ; |
N02-17439-N0-00 |
US $83.45 |
||
|
31
|
31
N02-18216-N0-00 Piston,2．ピストン ２; |
N02-18216-N0-00 |
US $168.56 |
||
|
32
|
32
N02-18337-N0-00 Spring．スプリング; |
N02-18337-N0-00 |
US $78.75 |
||
|
33
|
33
N02-18214-N0-00 Piston,orifice．ピストン、オリフイス; |
N02-18214-N0-00 |
US $116.88 |
||
|
34
|
34
N02-17429-N0-00 Spacer．スペーサ; |
N02-17429-N0-00 |
US $163.03 |
||
|
35
|
35
N02-17818-N0-00 Gasket．ガスケツト; |
N02-17818-N0-00 |
US $11.48 |
||
|
36
|
36
N02-17076-N0-00 Cover．カバー; |
N02-17076-N0-00 |
US $436.48 |
||
|
37
|
37
N02-16628-N0-00 Washer．ワツシヤ; |
N02-16628-N0-00 |
US $4.53 |
||
|
38
|
38
97012-08025-00 Bolt．ボルト、ヘキサゴン; |
97012-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
38
|
38
97017-08025-00 Bolt．ボルト、ヘキサゴン; |
97017-08025-00 |
from US $1.21 |
||
|
39
|
39
N02-7610K-N0-00 Body,valve．ボデイ、バルブ; |
N02-7610K-N0-00 |
US $1,788.31 |
||
|
40
|
40
N02-18568-N0-00 Gasket．ガスケツト; |
N02-18568-N0-00 |
US $19.84 |
||
|
41
|
41
N02-18231-N0-00 Cover,valve．カバー、バルブ １; |
N02-18231-N0-00 |
US $458.30 |
||
|
42
|
42
90201-10123-00 Washer, Plate (10.5-18-1.6) (25．ワツシヤ、プレイン; |
90201-10123-00 |
from US $2.55 |
||
|
43
|
43
90101-10430-00 Bolt (L=35, P=1.5)．ボルト、ヘキサゴン; |
90101-10430-00 |
US $17.71 |
||
|
44
|
44
97012-08030-00 Bolt．ボルト、ヘキサゴン; |
97012-08030-00 |
US $1.70 |
||
| replacement | |||||
|
44
|
44
970-17080-30-00 Bolt．ボルト、ヘキサゴン; |
970-17080-30-00 |
from US $1.70 |
||
|
45
|
45
N02-18567-N0-00 Gasket |
N02-18567-N0-00 |
US $34.71 |
||
|
46
|
46
90201-10123-00 Washer, Plate (10.5-18-1.6) (25ワツシヤ、プレイン; |
90201-10123-00 |
from US $2.55 |
||
|
47
|
47
N02-12228-N0-00 Bolt (M10,l=70,p=1.5) |
N02-12228-N0-00 |
US $10.20 |
||
|
48
|
48
N02-14428-N0-00 Bolt (M10,l=95,p=1.5) |
N02-14428-N0-00 |
US $17.85 |
||
|
49
|
49
N02-12157-N0-00 Bolt (M10,l=80,p=1.5) |
N02-12157-N0-00 |
US $12.33 |
||
