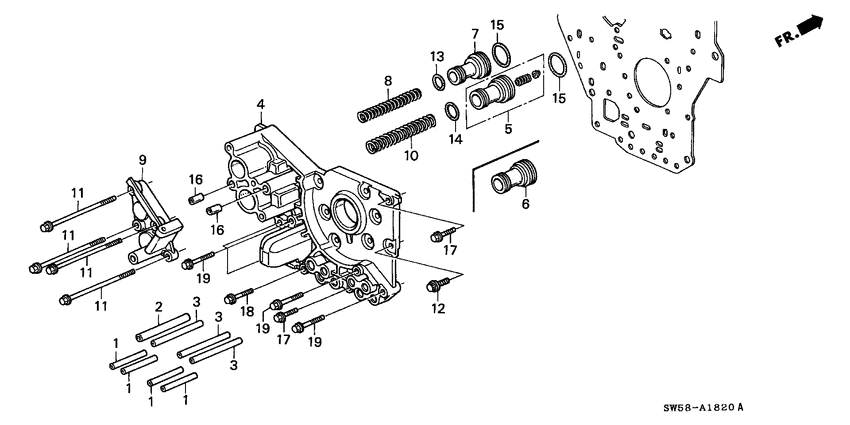

Accumulator body (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22743-PW4-000 Pipe8X40 |
22743-PW4-000 |
US $2.03 |
||
|
2
|
2
22744-PY4-000 Pipe10X60 |
22744-PY4-000 |
US $2.59 |
||
|
3
|
3
22747-PW4-000 Pipe57.5MM |
22747-PW4-000 |
US $2.31 |
||
|
4
|
4
27410-PY4-010
Body
|
27410-PY4-010 |
— | ||
|
6
|
6
27574-PY4-010
Piston
|
27574-PY4-010 |
— | ||
|
7
|
7
27576-PY4-010
Piston
|
27576-PY4-010 |
— | ||
|
8
|
8
27577-PY4-020
Spring
|
27577-PY4-020 |
— | ||
|
9
|
9
27580-PY4-010
Cover comp.
|
27580-PY4-010 |
— | ||
|
10
|
10
27583-PY4-010
Spring
|
27583-PY4-010 |
— | ||
|
11
|
11
90004-PC9-000 BoltFLANGE, 6X90 |
90004-PC9-000 |
US $3.36 |
||
|
12
|
12
90005-PP6-000 BoltSPECIAL, 6X16 |
90005-PP6-000 |
US $1.47 |
||
|
13
|
13
91321-PF4-004 O-ring18.3X2.4(NOK) |
91321-PF4-004 |
from US $1.85 |
||
|
14
|
14
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
15
|
15
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
16
|
16
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
17
|
17
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
18
|
18
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
19
|
19
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
