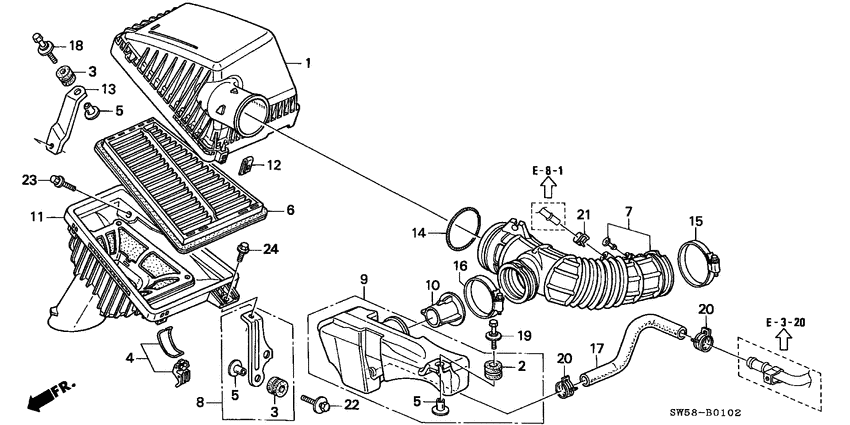

Air cleaner (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-PY3-000
Cover
|
17211-PY3-000 |
— | ||
|
2
|
2
17212-PE2-000 Rubber aAIR CLEANER CASE MOUNTING |
17212-PE2-000 |
US $2.38 |
||
|
3
|
3
17213-PD1-000 RubberAIR CLEANER CASE MOUNTING |
17213-PD1-000 |
US $2.80 |
||
|
4
|
4
17215-PY3-000 Clip setWIRE |
17215-PY3-000 |
US $5.46 |
||
|
5
|
5
17216-PE2-003 CollarAIR CLEANER(TOYO ROKI) |
17216-PE2-003 |
from US $2.10 |
||
|
6
|
6
17220-PY3-000 Element assy.AIR CLEANER (TOYO ROKI) |
17220-PY3-000 |
US $46.08 |
||
|
6
|
6
17220-PY3-505
Element assy.
|
17220-PY3-505 |
— | ||
|
7
|
7
17228-P5G-000
Tube comp
|
17228-P5G-000 |
— | ||
|
8
|
8
17229-PY3-000
Stay assy
|
17229-PY3-000 |
— | ||
|
9
|
9
17230-P5G-000
Chamber assy
|
17230-P5G-000 |
— | ||
|
10
|
10
17235-P5G-000
Adapter
|
17235-P5G-000 |
— | ||
|
11
|
11
17240-PY3-000
Case assy.
|
17240-PY3-000 |
— | ||
|
12
|
12
17243-PY3-000
Stopper
|
17243-PY3-000 |
— | ||
|
13
|
13
17245-PY3-000
Stay comp
|
17245-PY3-000 |
— | ||
|
14
|
14
17249-PY3-000 SpringAIR FLOW TUBE |
17249-PY3-000 |
from US $3.40 |
||
|
15
|
15
17315-PP8-003
Band c
|
17315-PP8-003 |
— | ||
|
16
|
16
17316-PN3-003
Clamp
|
17316-PN3-003 |
— | ||
|
17
|
17
18795-PY3-000
Tube a
|
18795-PY3-000 |
— | ||
|
18
|
18
90010-PT2-000
Bolt-washer
|
90010-PT2-000 |
— | ||
|
19
|
19
90133-SD2-000 BoltCONDENSER |
90133-SD2-000 |
US $2.10 |
||
|
20
|
20
90602-P5A-003 ClampTUBE (D25) |
90602-P5A-003 |
US $2.94 |
||
|
21
|
21
90604-PY3-003
Clamp
|
90604-PY3-003 |
— | ||
| replacement | |||||
|
21
|
21
91405-PM5-004 ClampTUBE (D17) |
91405-PM5-004 |
from US $4.28 |
||
|
22
|
22
90775-PG7-000 Bolt-washer6X20 |
90775-PG7-000 |
US $1.82 |
||
|
23
|
23
93401-060-140-8 Bolt-washer6X14 |
93401-060-140-8 |
from US $0.52 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
