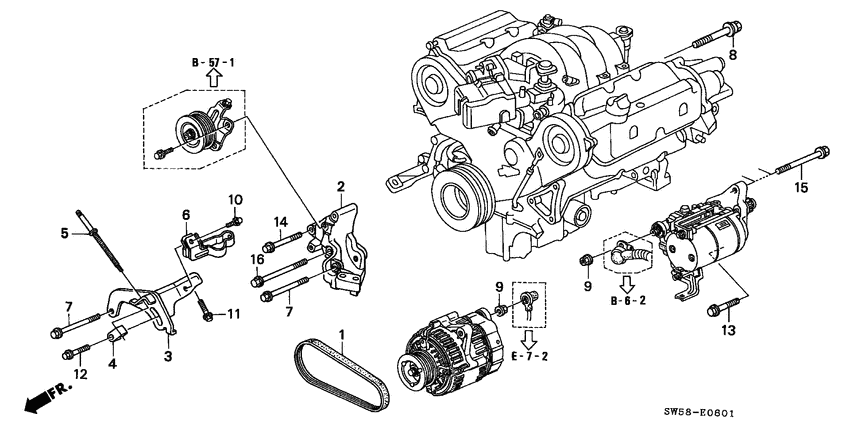

Alternator bracket (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31110-P5G-003 BeltALTERNATOR (BANDO) |
31110-P5G-003 |
US $37.12 |
||
|
2
|
2
31112-PY3-010
Bracket comp.
|
31112-PY3-010 |
— | ||
|
3
|
3
31113-P5A-000
Stay
|
31113-P5A-000 |
— | ||
|
4
|
4
31115-PY3-000
Adjuster
|
31115-PY3-000 |
— | ||
|
5
|
5
31116-PY3-000
Bolt
|
31116-PY3-000 |
— | ||
|
6
|
6
32754-PY3-900
Clamp e
|
32754-PY3-900 |
— | ||
|
7
|
7
90016-PA9-000 BoltFLANGE, 10X90 |
90016-PA9-000 |
US $3.91 |
||
| replacement | |||||
|
7
|
7
95801-100-900-8 BoltFLANGE, 10X90 |
95801-100-900-8 |
from US $1.48 |
||
|
8
|
8
90030-PY5-000 BoltSPECIAL, 12X65 |
90030-PY5-000 |
US $5.04 |
||
|
9
|
9
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
10
|
10
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
11
|
11
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
12
|
12
95701-080-400-8 BoltFLANGE, 8X40 |
95701-080-400-8 |
from US $0.74 |
||
|
13
|
13
95701-100-450-8 BoltFLANGE, 10X45 |
95701-100-450-8 |
from US $0.89 |
||
|
14
|
14
95701-100-600-8 BoltFLANGE, 10X60 |
95701-100-600-8 |
from US $1.04 |
||
|
15
|
15
95701-100-950-8 BoltFLANGE, 10X95 |
95701-100-950-8 |
from US $1.48 |
||
|
16
|
16
95701-101-000-8 BoltFLANGE, 10X100 |
95701-101-000-8 |
from US $0.74 |
||
