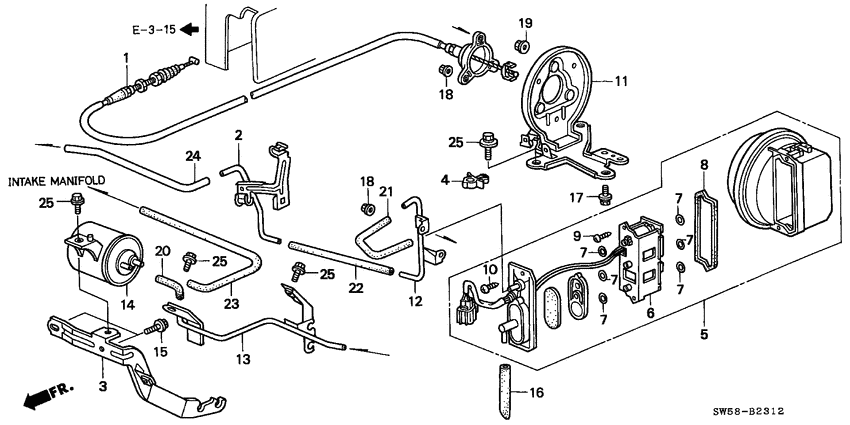

Auto cruise (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17880-P5G-003
Wire
|
17880-P5G-003 |
— | ||
|
2
|
2
17882-P5G-000
Clamp comp. a
|
17882-P5G-000 |
— | ||
|
3
|
3
17925-P5G-000
Clamp comp. b
|
17925-P5G-000 |
— | ||
|
4
|
4
32175-647-920 ClipWIRE HARNESS |
32175-647-920 |
US $2.50 |
||
| replacement | |||||
|
4
|
4
30701-883-000 Clip, high tension cord (8mm) |
30701-883-000 |
US $4.47 |
||
|
5
|
5
36520-P5G-003
Actuator assy
|
36520-P5G-003 |
— | ||
|
6
|
6
36521-P5G-003
Valve comp.
|
36521-P5G-003 |
— | ||
|
7
|
7
36522-P0A-A01 O-ringP7A |
36522-P0A-A01 |
US $2.10 |
||
|
8
|
8
36523-P0A-A01 Packing |
36523-P0A-A01 |
US $6.02 |
||
|
9
|
9
36524-P0A-A01 ScrewTAPPING, 3X10 |
36524-P0A-A01 |
US $1.82 |
||
|
10
|
10
36525-P0A-A01 ScrewTAPPING, 4X16 |
36525-P0A-A01 |
US $2.03 |
||
|
11
|
11
36613-P5G-000
Stay comp
|
36613-P5G-000 |
— | ||
|
12
|
12
36623-P5G-000
Pipe comp. a
|
36623-P5G-000 |
— | ||
|
13
|
13
36624-P5G-000
Pipe comp. b
|
36624-P5G-000 |
— | ||
|
14
|
14
36625-P0A-A01 Tank comp.VACUUM |
36625-P0A-A01 |
US $80.44 |
||
|
15
|
15
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
16
|
16
91426-P5G-000
Tube
|
91426-P5G-000 |
— | ||
|
17
|
17
93401-060-100-8 Bolt-washer6X10 |
93401-060-100-8 |
from US $0.52 |
||
|
18
|
18
94050-05070 NutFLANGE, 5MM |
94050-05070 |
from US $0.44 |
||
|
19
|
19
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
20
|
20
95005-350-701-0 Tube3.5X70 (95005-35001-10M) |
95005-350-701-0 |
US $1.18 |
||
|
21
|
21
95005-351-401-0
Tube
|
95005-351-401-0 |
— | ||
|
22
|
22
95005-351-451-0 Tube3.5X145(95005-35001-10M) |
95005-351-451-0 |
US $1.55 |
||
|
23
|
23
91442-P5G-000
Tube
|
91442-P5G-000 |
— | ||
|
24
|
24
95005-352-001-0
Tube
|
95005-352-001-0 |
— | ||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
