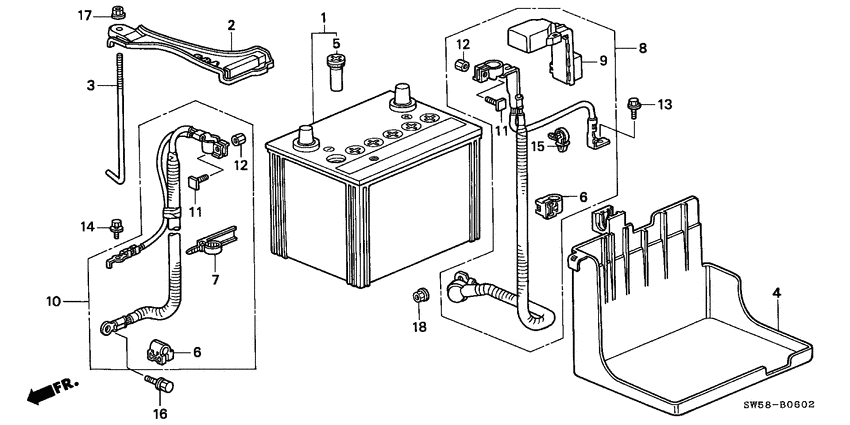

Battery (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-SW5-N71
Battery assy
|
31500-SW5-N71 |
— | ||
|
1
|
1
31500-SW5-N73
Battery assy
|
31500-SW5-N73 |
— | ||
|
2
|
2
31512-SV7-A00 PlateBATTERY SETTING |
31512-SV7-A00 |
US $13.95 |
||
|
3
|
3
31513-SL4-000 BoltBATTERY SETTING (220MM) |
31513-SL4-000 |
from US $3.22 |
||
|
4
|
4
31521-SP0-010
Box assy
|
31521-SP0-010 |
— | ||
|
5
|
5
31542-SA5-665 PlugVENT (MF) (PANASONIC) |
31542-SA5-665 |
from US $2.74 |
||
|
5
|
5
31542-SA5-666 PlugVENT (MF) (FURUKAWA) |
31542-SA5-666 |
from US $2.59 |
||
|
6
|
6
32115-P64-003 HolderCORRUGATED (DARK BLUE) (10MM) |
32115-P64-003 |
US $2.38 |
||
|
7
|
7
32133-SM4-003 BandHARNESS OFFSET (30) (YELLOW) (122.5MM) |
32133-SM4-003 |
US $2.73 |
||
|
8
|
8
32410-SZ5-003 Cable assySTARTER |
32410-SZ5-003 |
US $91.52 |
||
|
9
|
9
32411-SP0-003
Cover
|
32411-SP0-003 |
— | ||
|
10
|
10
32600-SZ5-003 Cable assyEARTH |
32600-SZ5-003 |
US $64 |
||
|
11
|
11
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
12
|
12
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
13
|
13
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
14
|
14
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
15
|
15
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
16
|
16
93403-100-250-8 Bolt-washer10X25 |
93403-100-250-8 |
US $0.89 |
||
|
17
|
17
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
18
|
18
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
